NSN 1560-01-184-0198 4011546-11, 01-184-0198, 401154611
Product Details | AIRCRAFT STRUCTURAL PANEL
1560-01-184-0198 A preformed item of various shapes, and contours, which may have a sandwich or honeycomb core bonded to a metallic or nonmetallic facing material. It is used to enclose integral portions of the fuselage or to form partitions or sections within a wing, empennage, fuselage, nacelle or crew compartment. It may have mounting provisions such as predrilled holes to facilitate installation, but will have no items attached to it except bracket (s) or other securing devices to accommodate its own mounting or support. It may be mounted by means of fasteners, bonding or welding. Excludes PANEL, INTERIOR LINING, AIRCRAFT; COVER ACCESS; COVER, ACCESS, AIRCRAFT; FLOOR (1), AIRCRAFT; CORE MATERIAL, CELLULAR, STRUCTURAL.
Part Alternates: 4011546-11, 1560-01-184-0198, 01-184-0198, 1560011840198, 401154611, 011840198
Aircraft and Airframe Structural Components | Airframe Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 15 | 12 JUL 1984 | 01-184-0198 | 35987 ( PANEL, STRUCTURAL, AIRCRAFT ) |

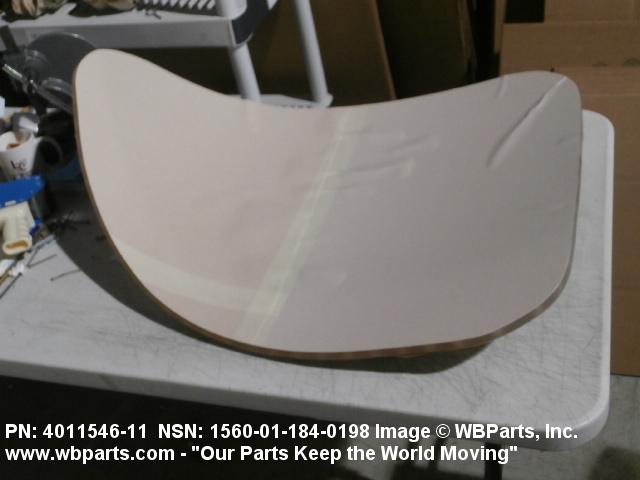

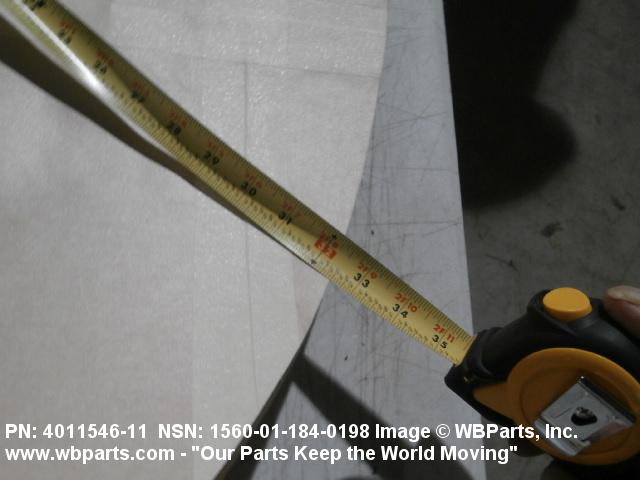

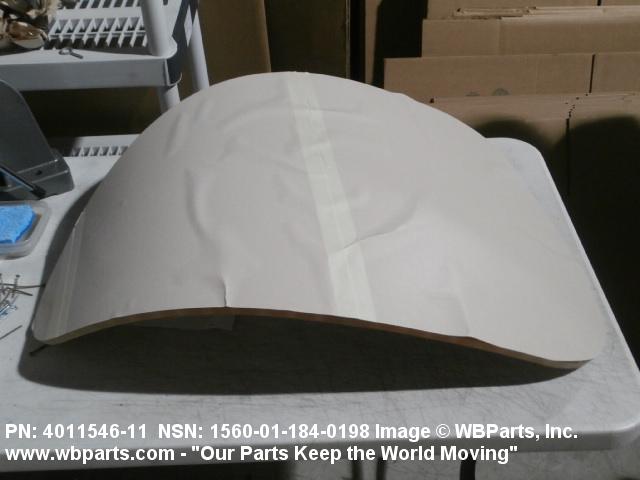

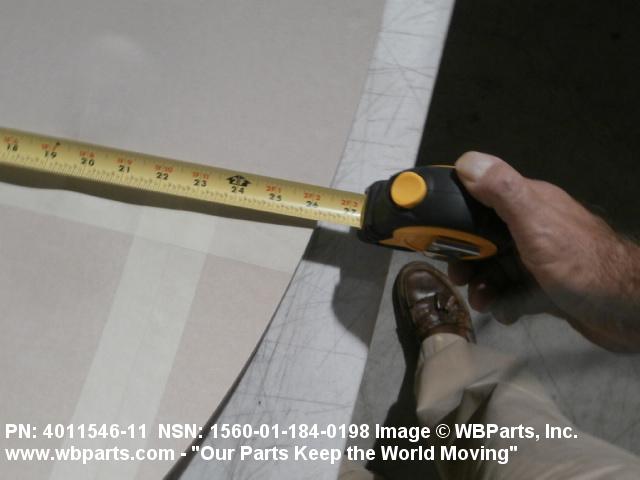

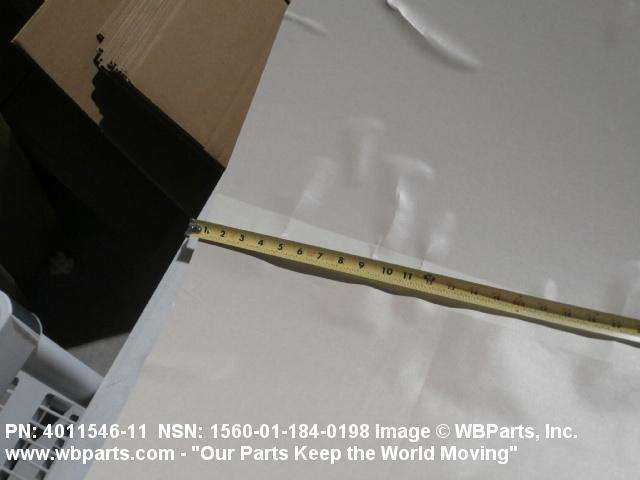

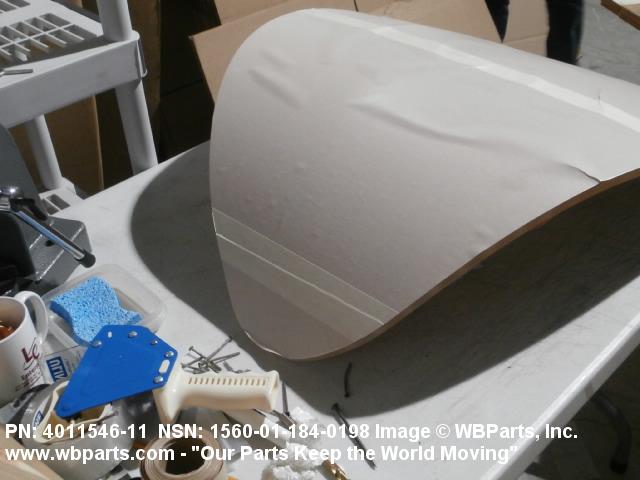

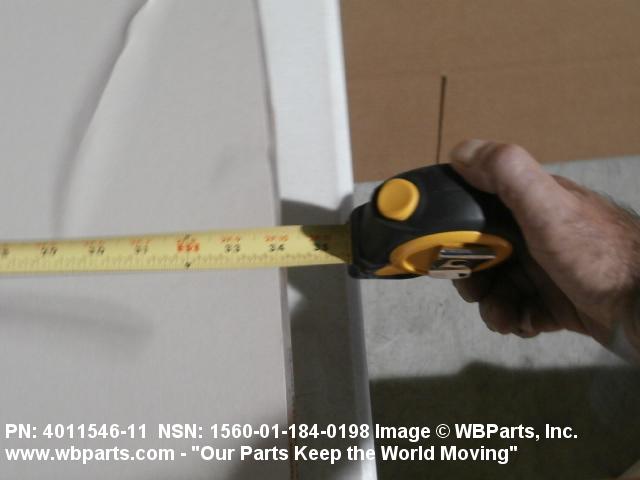

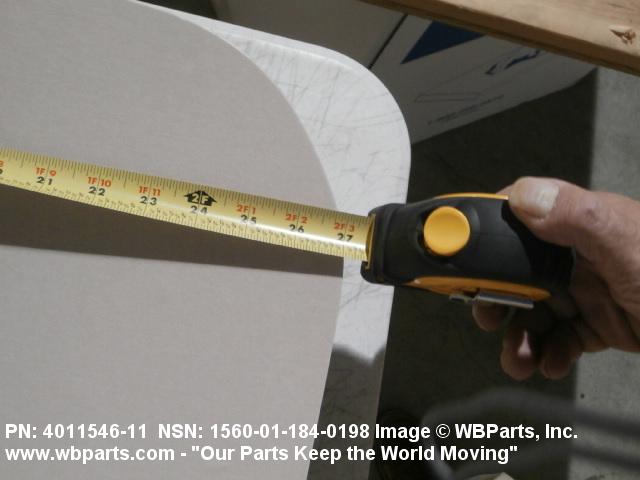

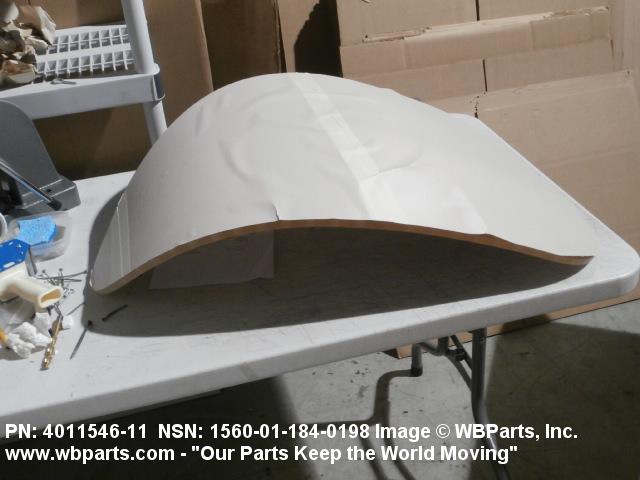

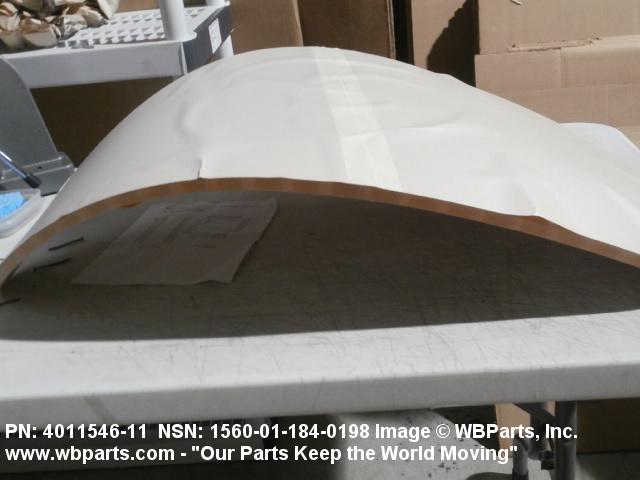

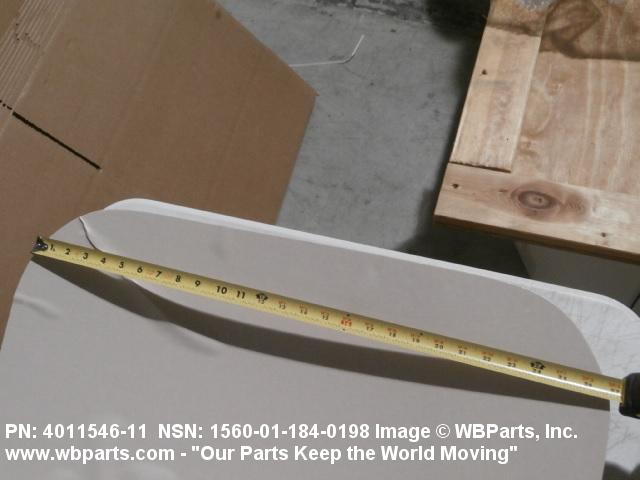

Drawings & Photos | NSN 1560-01-184-0198
Demand History | NSN 1560-01-184-0198
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 401154611 | 2018-11-309 | 4 | United States |
| 401154611 | 2015-11-328 | 2 | US |
| 1560-01-184-0198 | 2015-02-43 | 2 | United States |
| 401154611 | 2014-03-65 | 1 | United States |
| 401154611 | 2014-02-58 | 1 | United States |
| 401154611 | 2013-11-325 | 1 | United States |
| 401154611 | 2013-11-312 | 3 | United States |
| 401154611 | 2013-11-310 | 2 | United States |
| 401154611 | 2013-10-298 | 5 | United States |
| 1560-01-184-0198 | 2013-10-290 | 3 | United States |
| 1560-01-184-0198 | 2013-09-273 | 5 | US |
| 1560-01-184-0198 | 2012-11-332 | 2 | us |
| 401154611 | 2008-11-330 | 1 | US |
Cross Reference | NSN 1560-01-184-0198
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4011546-11 | 99696 | LOCKHEED MARTIN CORPORATION DIV LOCKHEED MARTIN SYSTEMS & GLOBAL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1560-01-184-0198
Technical Data | NSN 1560-01-184-0198
| Characteristic | Specifications |
|---|---|
| MATERIAL | GLASS |
| AIRCRAFT LOCATION | LEFT HAND WINDSHIELD |
| SPECIAL FEATURES | FSC APPLICATION DATA:AIRCRAFT STRUCTURAL COMPONENT |
| III END ITEM IDENTIFICATION | T-37 ACFT |
| MANUFACTURERS CODE | 99696 |
| DESIGN CONTROL REFERENCE | 4011546-11 |
Restrictions/Controls & Freight Information | NSN 1560-01-184-0198
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
