NSN 1560-01-321-4466 70902-01974-103, 76028101, 76028-101
Product Details | AIRCRAFT STRUCTURAL PANEL
1560-01-321-4466 A preformed item of various shapes, and contours, which may have a sandwich or honeycomb core bonded to a metallic or nonmetallic facing material. It is used to enclose integral portions of the fuselage or to form partitions or sections within a wing, empennage, fuselage, nacelle or crew compartment. It may have mounting provisions such as predrilled holes to facilitate installation, but will have no items attached to it except bracket (s) or other securing devices to accommodate its own mounting or support. It may be mounted by means of fasteners, bonding or welding. Excludes PANEL, INTERIOR LINING, AIRCRAFT; COVER ACCESS; COVER, ACCESS, AIRCRAFT; FLOOR (1), AIRCRAFT; CORE MATERIAL, CELLULAR, STRUCTURAL.
Part Alternates: 70902-01974-103, 76028101, 76028-101, 9520221, 95-2022-1, 70902-01974-101, 1560-01-321-4466, 01-321-4466, 1560013214466, 7090201974101, 7090201974103, 013214466
Aircraft and Airframe Structural Components | Airframe Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 15 | 18 JUN 1990 | 01-321-4466 | 35987 ( PANEL, STRUCTURAL, AIRCRAFT ) |

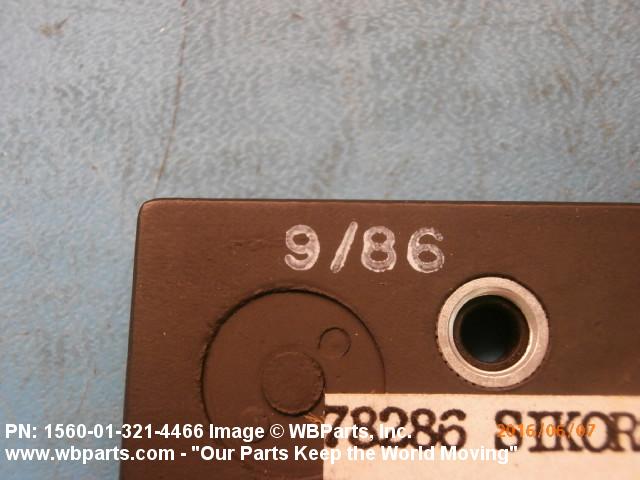

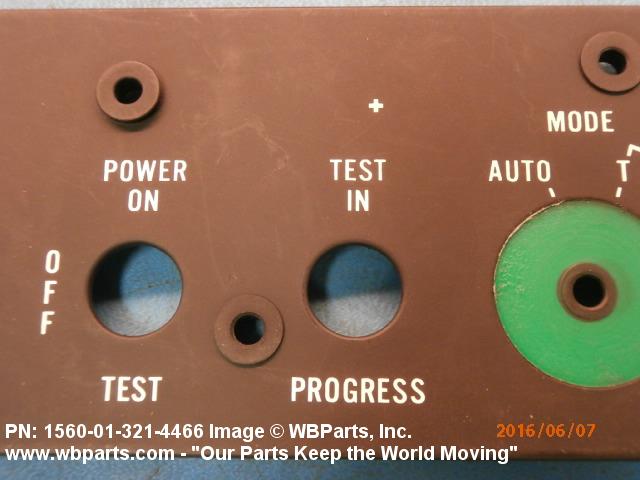

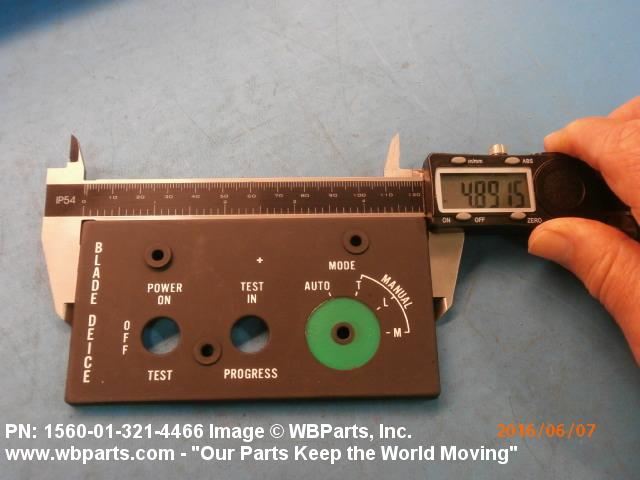

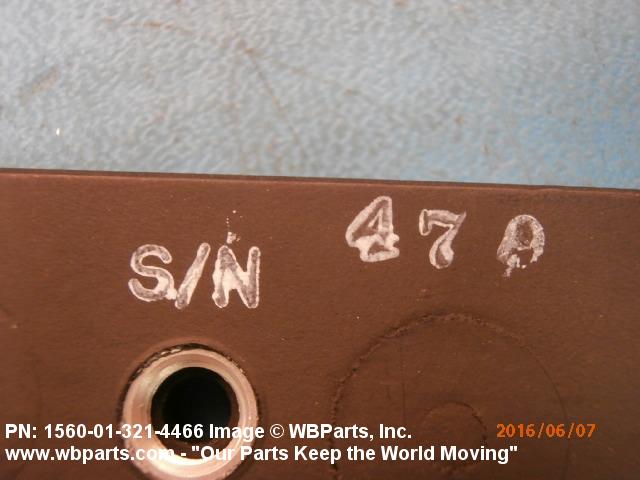

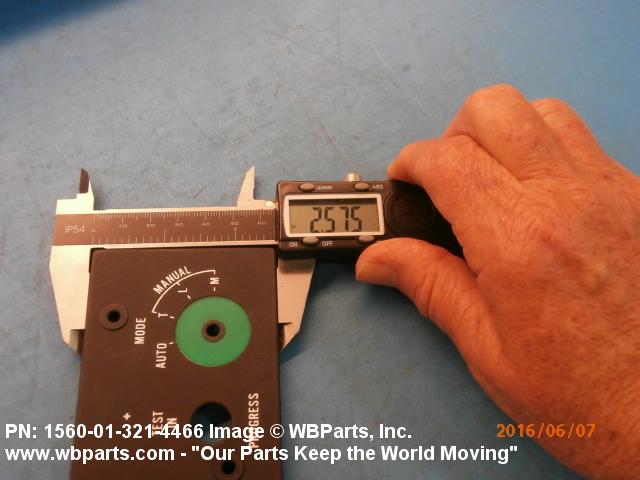

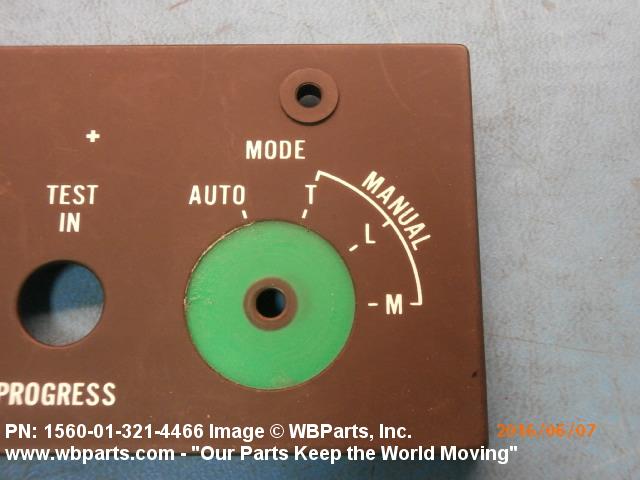

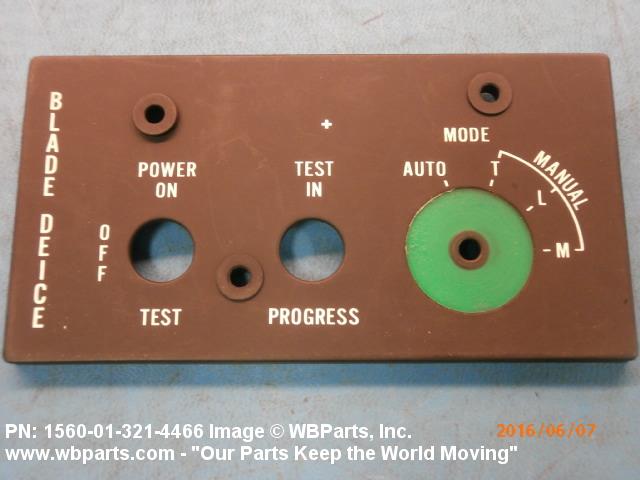

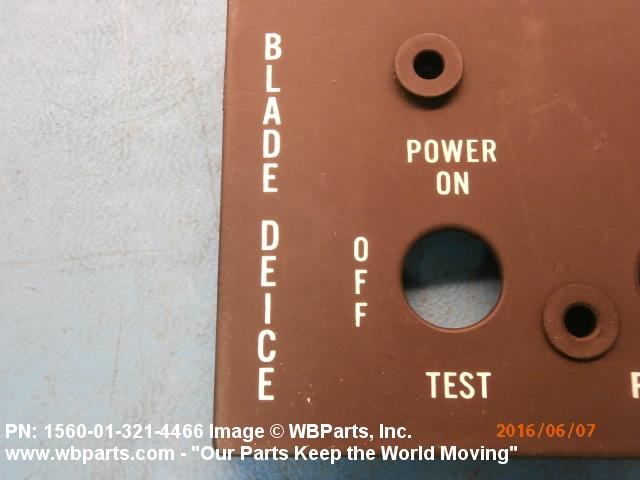

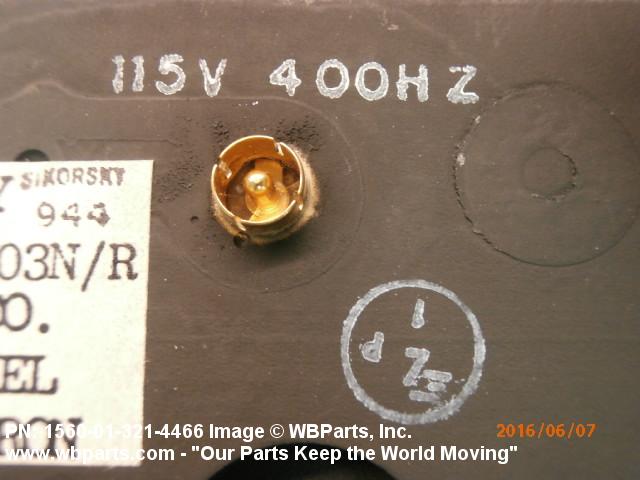

Drawings & Photos | NSN 1560-01-321-4466
Demand History | NSN 1560-01-321-4466
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1560-01-321-4466 | 2024-12-346 | 5 | US |
| 1560-01-321-4466 | 2024-10-305 | 6 | US |
| 7090-20-197-4103 | 2024-08-218 | 1 | US |
| 1560-01-321-4466 | 2024-02-45 | 1 | US |
| 1560-01-321-4466 | 2023-10-285 | 1 | US |
| 1560-01-321-4466 | 2020-08-239 | 1 | United States |
| 7090-20-197-4101 | 2020-07-184 | 1 | CO |
| 1560-01-321-4466 | 2018-05-143 | 1 | DIBBS-RFPs |
| 1560-01-321-4466 | 2017-08-228 | 65 | DIBBS |
| 1560-01-321-4466 | 2016-05-152 | 1 | Turkey |
| 7090-20-197-4103 | 2015-02-57 | 1 | CO |
| 1560-01-321-4466 | 2012-12-361 | 322 | DIBBS |
| 1560-01-321-4466 | 2008-10-289 | 169 | DIBBS |
| 1560-01-321-4466 | 2008-08-226 | 200 | DIBBS |
| 1560-01-321-4466 | 2008-08-224 | 10000 | DIBBS |
| 1560-01-321-4466 | 2008-04-108 | 100 | DIBBS |
| 1560-01-321-4466 | 2008-03-71 | 50 | DIBBS |
| 1560-01-321-4466 | 2007-03-86 | 1 | South Korea |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1560-01-321-4466
Technical Data | NSN 1560-01-321-4466
| Characteristic | Specifications |
|---|---|
| SPECIFICATION/STANDARD DATA | 78286-70902-01974 MANUFACTURERS STANDARD |
Restrictions/Controls & Freight Information | NSN 1560-01-321-4466
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 011790 | AIRCRAFT PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | ZA | Australia ZB ZC |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1560-01-321-4466
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
