NSN 1560-00-847-9378 SS70004A, SS7000-4A, 00-847-9378
Product Details | AIRCRAFT ACCESS COVER
1560-00-847-9378 An access cover which is an integral part of the airframe structure of an aircraft. Excludes COVER, ACCESS.

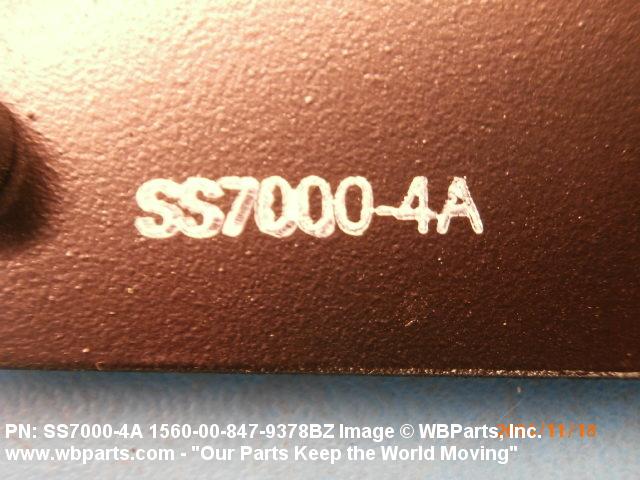

Part Alternates: SS70004A, SS7000-4A, 1560-00-847-9378, 00-847-9378, 1560008479378, 008479378
Aircraft and Airframe Structural Components | Airframe Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 15 | 20 SEP 1967 | 00-847-9378 | 51575 ( COVER, ACCESS, AIRCRAFT ) |

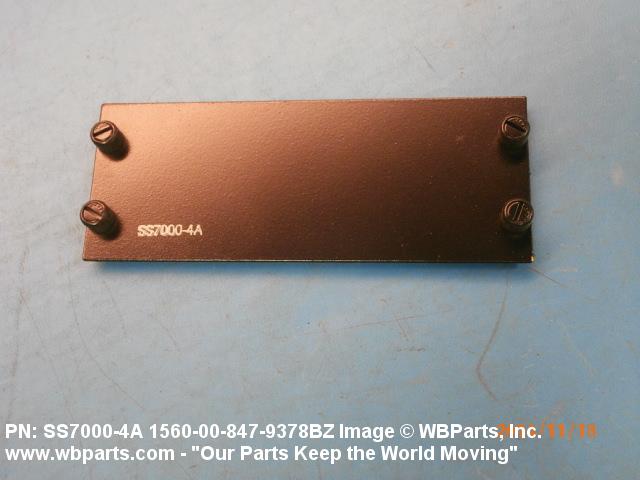

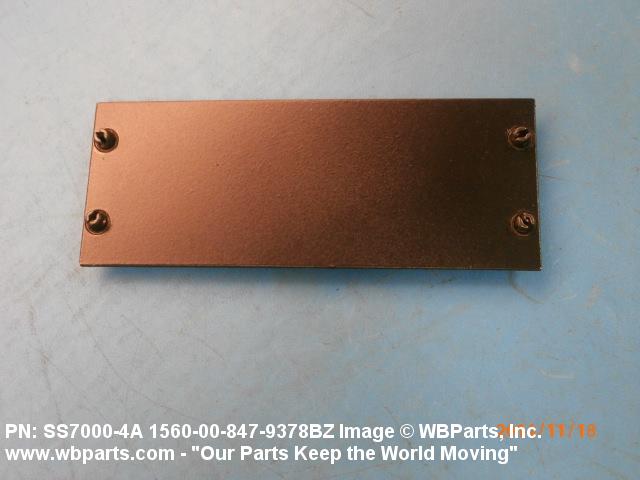

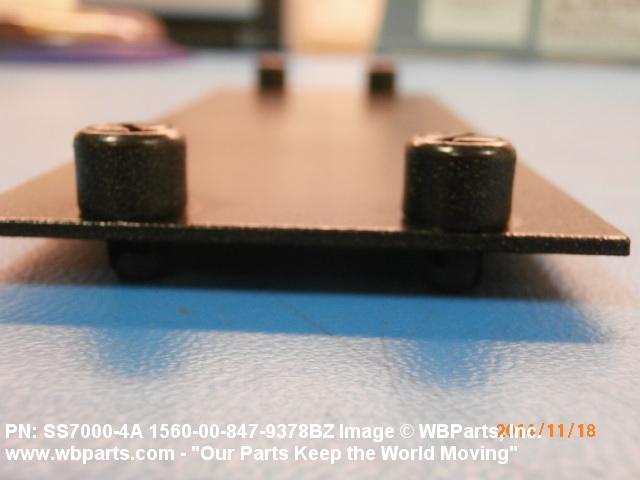

Drawings & Photos | NSN 1560-00-847-9378
Demand History | NSN 1560-00-847-9378
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| SS70004A | 2017-05-138 | 37 | United States |
| 1560-00-847-9378 | 2017-05-134 | 37 | DIBBS |
| 1560-00-847-9378 | 2017-01-04 | 99 | DIBBS |
| 1560-00-847-9378 | 2016-11-314 | 103 | DIBBS |
| 1560-00-847-9378 | 2016-10-301 | 67 | DIBBS |
| 1560-00-847-9378 | 2016-05-129 | 59 | DIBBS |
| 1560-00-847-9378 | 2016-03-90 | 1 | DIBBS-RFPs |
| 1560-00-847-9378 | 2015-12-355 | 1 | DIBBS |
| 1560-00-847-9378 | 2015-09-266 | 369 | DIBBS |
| 1560-00-847-9378 | 2015-01-13 | 912 | DIBBS |
| 1560-00-847-9378 | 2014-11-308 | 290 | DIBBS |
| SS70004A | 2014-10-294 | 2 | United States |
| SS70004A | 2013-09-253 | 6 | United States |
| 1560-00-847-9378 | 2012-11-312 | 673 | DIBBS |
| 1560-00-847-9378 | 2012-09-249 | 631 | DIBBS |
| 1560-00-847-9378 | 2011-07-211 | 364 | DIBBS |
| 1560-00-847-9378 | 2011-02-55 | 289 | DIBBS |
| 1560-00-847-9378 | 2010-05-140 | 134 | DIBBS |
| 1560-00-847-9378 | 2010-04-103 | 378 | DIBBS |
| 1560-00-847-9378 | 2008-06-157 | 163 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1560-00-847-9378
Related Products | NSN 1560-00-847-9378
Technical Data | NSN 1560-00-847-9378
| Characteristic | Specifications |
|---|---|
| PERIPHERAL SHAPE STYLE | 13 RECTANGLE, FOUR HOLES |

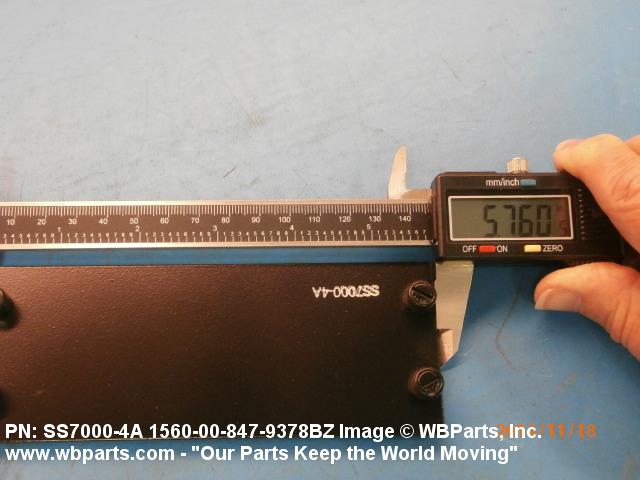

| WIDTH | 5.740 INCHES MINIMUM AND 5.750 INCHES MAXIMUM |

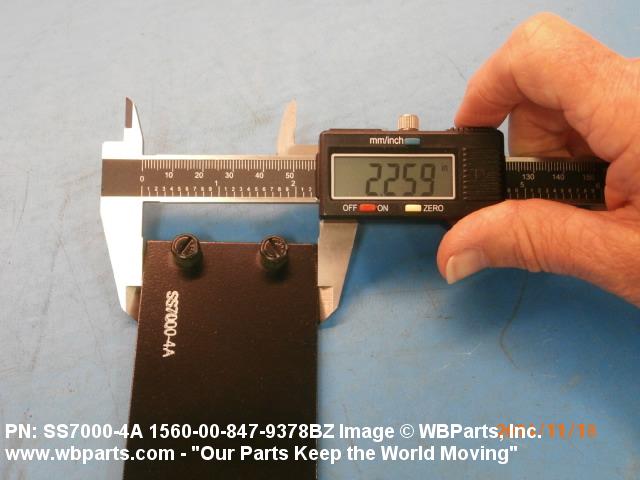

| LENGTH | 2.240 INCHES MINIMUM AND 2.250 INCHES MAXIMUM |

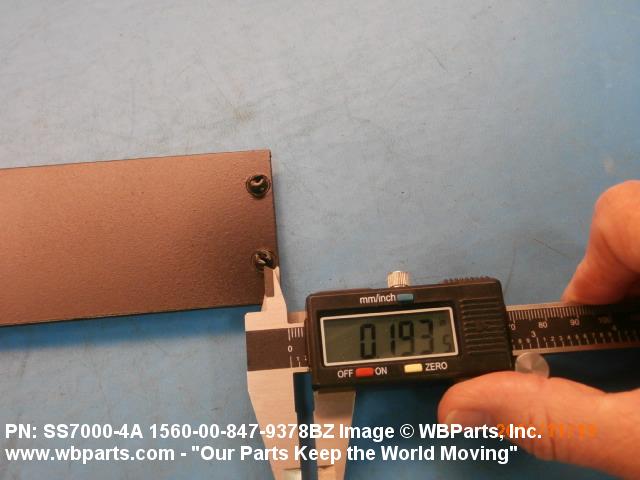

| DISTANCE FROM FIRST HOLE CENTERLINE TO END ALONG LENGTH | 0.192 INCHES NOMINAL |

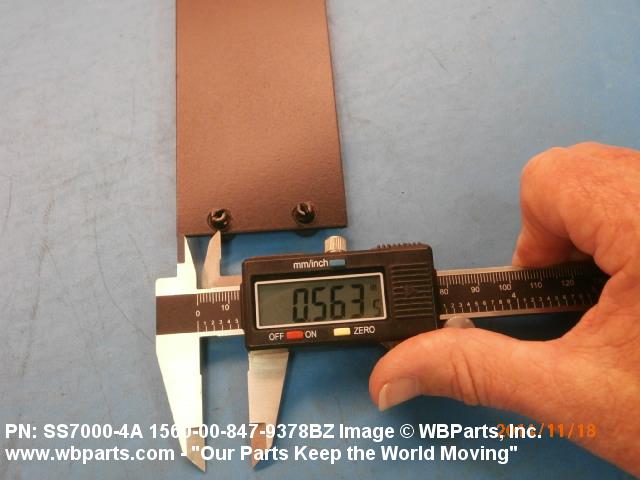

| DISTANCE FROM FIRST HOLE CENTERLINE TO END ALONG WIDTH | 0.562 INCHES NOMINAL |

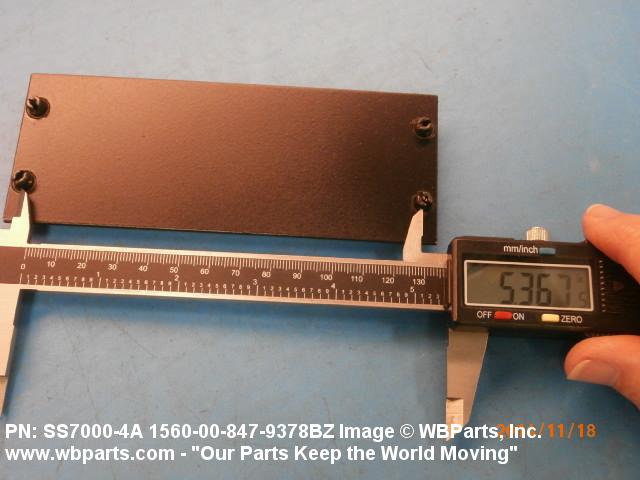

| DISTANCE BETWEEN HOLES ALONG LENGTH | 5.366 INCHES NOMINAL |

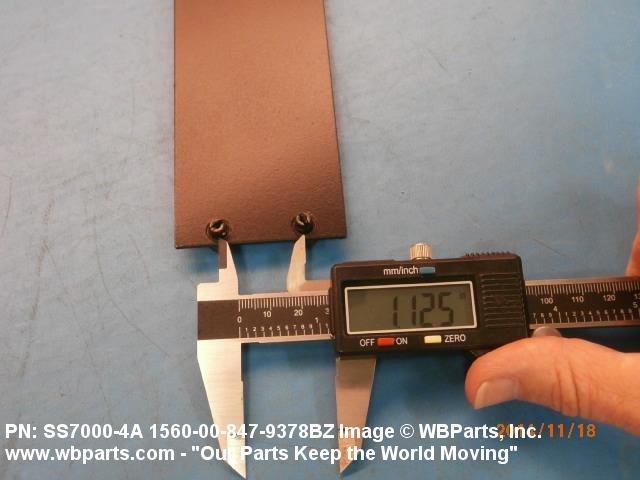

| DISTANCE BETWEEN HOLES ALONG WIDTH | 1.126 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | 26 FLAT |

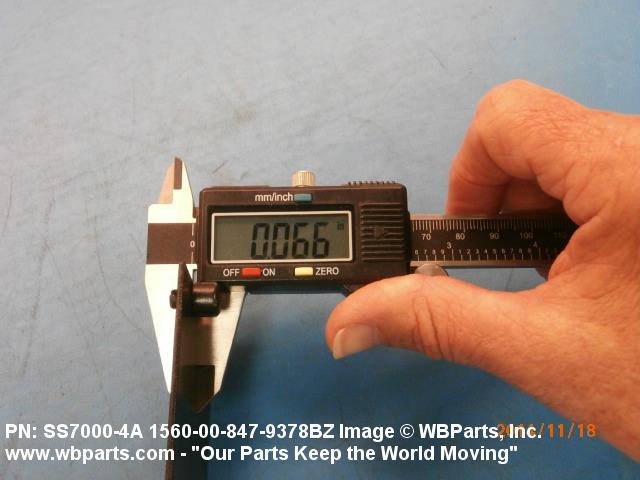

| BODY THICKNESS | 0.064 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY 6061 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/11 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | ANODIZE AND LACQUER |
| SECURING DEVICE TYPE | TURNLOCK FASTENER |
Restrictions/Controls & Freight Information | NSN 1560-00-847-9378
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013560 | ALUM PLATE R SHEET SUB1 |
| Less than car load rating | ||
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1560-00-847-9378
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | BZ | TG:H-53 SEASTALLION |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
