NSN 9905-01-264-3734 74A8906002894, 74A890600-2894, 01-264-3734
Product Details | MARKER BAND
9905-01-264-3734 An item cut to a specific length suitable for wrapping around a cable, pipe, wire, wire rope and the like. It is secured by crimping, slot and tongue, or similar method of fastening. It is intended to provide identification. It may be blank, specifically color coded, or inscribed with information. Excludes TAG, MARKER.
Part Alternates: 74A8906002894, 74A890600-2894, 9905-01-264-3734, 01-264-3734, 9905012643734, 012643734
Miscellaneous | Signs, Advertising Displays, and Identification Plates
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 99 | 29 SEP 1987 | 01-264-3734 | 30536 ( BAND, MARKER ) |
Drawings & Photos | NSN 9905-01-264-3734
Cross Reference | NSN 9905-01-264-3734
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 74A890600-2894 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 9905-01-264-3734
Technical Data | NSN 9905-01-264-3734
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/1, ALLOY 1100 FED SPEC SINGLE MATERIAL RESPONSE |
| COLOR | BLACK OVERALL |

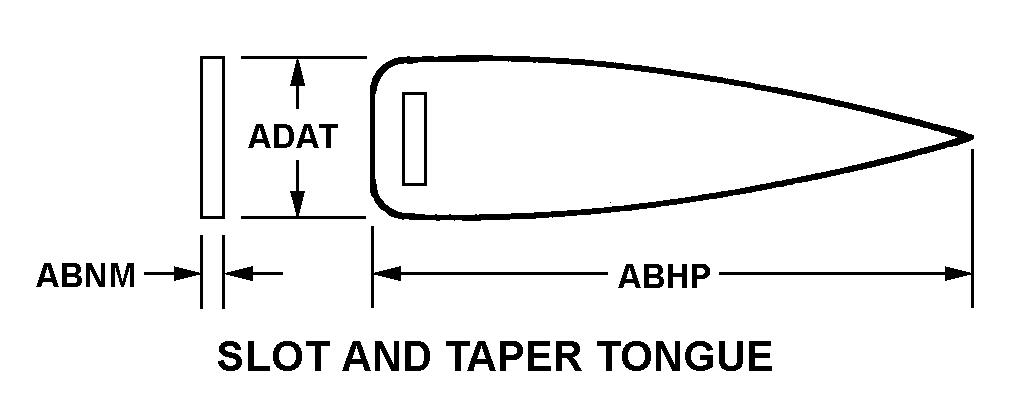

| STYLE DESIGNATOR | A15 SLOT AND TAPER TONGUE |
| OVERALL LENGTH | 2.500 INCHES NOMINAL |
| THICKNESS | 0.005 INCHES NOMINAL |
| BODY WIDTH | 1.250 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 9905-01-264-3734
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 9905-01-264-3734
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
