NSN 9905-01-193-3700 MILDTL15024, MIL-DTL-15024 , MIL-DTL-15024 TYJ FIG.1
Product Details | IDENTIFICATION PLATE
9905-01-193-3700 An item which is rigid or semi-rigid, generally flat and smooth designed to be attached to an item and provides data such as name/nomenclature, weight, tire pressure, dimensional data and the like. See also MARKER,IDENTIFICATION; PLATE,DESIGNATION; PLATE,INSTRUCTION; PLATE SET,IDENTIFICATION; and TAG,MARKER. Excludes LABEL.202259000009905000000
Part Alternates: MILDTL15024, MIL-DTL-15024 , MIL-DTL-15024 TYJ FIG.1 , MILDTL15024TYJFIG1, MILP15024, MIL-P-15024, MIL-P-15024TYJ FIG. 1, MILP15024TYJFIG1, 9905-01-193-3700, 01-193-3700, 9905011933700, 011933700
Miscellaneous | Signs, Advertising Displays, and Identification Plates
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 99 | 02 NOV 1984 | 01-193-3700 | 00155 ( PLATE, IDENTIFICATION ) |
Drawings & Photos | NSN 9905-01-193-3700
Demand History | NSN 9905-01-193-3700
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 9905-01-193-3700 | 2024-10-276 | 500 | US |
| MILDTL15024 | 2023-04-103 | 3 | US |
| 9905-01-193-3700 | 2022-11-310 | 100 | KR |
| 9905-01-193-3700 | 2022-10-299 | 35 | US |
| 9905-01-193-3700 | 2022-10-294 | 500 | US |
| 9905-01-193-3700 | 2019-08-224 | 50 | US |
| 9905-01-193-3700 | 2017-01-24 | 50 | UM |
| MILDTL15024 | 2016-10-287 | 500 | US |
| 9905-01-193-3700 | 2012-01-11 | 50 | US |
| 9905-01-193-3700 | 2010-08-232 | 1 | US |
| MILDTL15024 | 2008-04-109 | 1 | US |
Cross Reference | NSN 9905-01-193-3700
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MIL-DTL-15024 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-DTL-15024 TYJ FIG.1 | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
| MIL-P-15024 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-P-15024TYJ FIG. 1 | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 9905-01-193-3700
Technical Data | NSN 9905-01-193-3700
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |

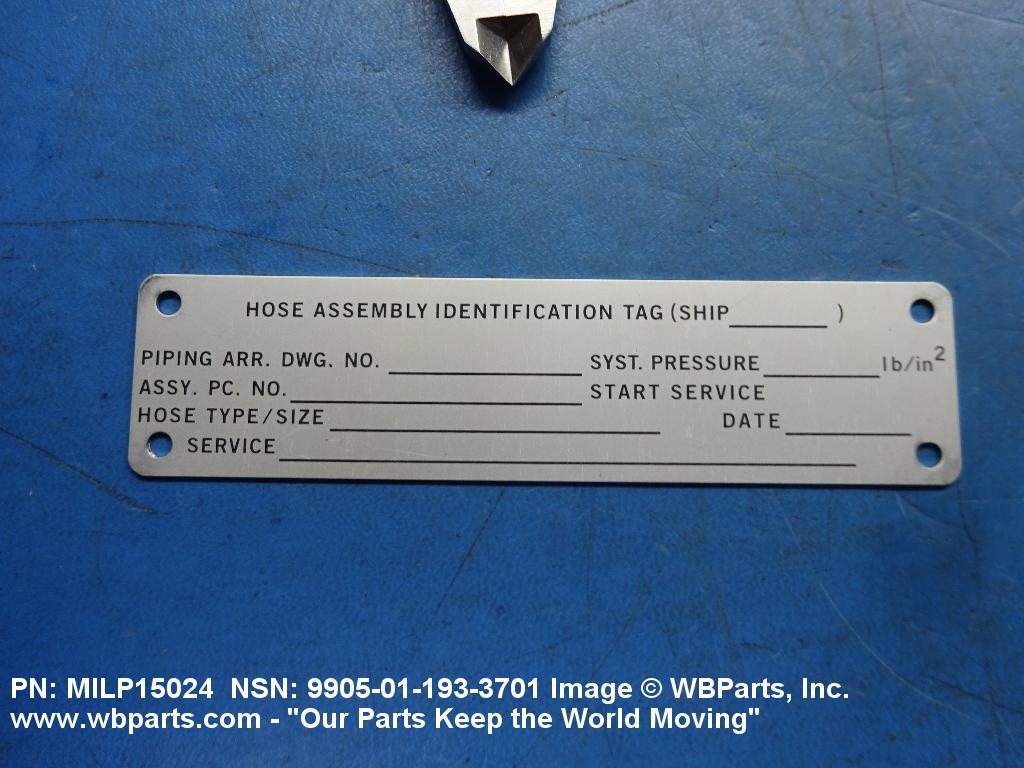

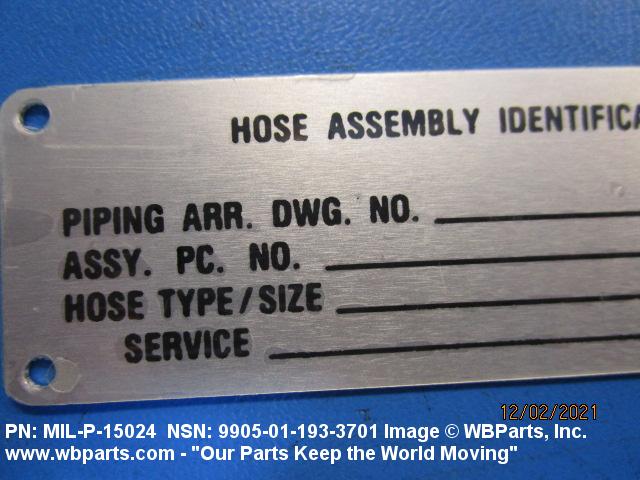

| INSCRIPTION | HOSE ASSEMBLY IDENTIFICATION TAG (SHIP---) SRD DWG NO---SYST. PRESSURE---LB/IN2 SRP ITEM NO---START SERVICE---HOSE TYPE/SIZE-"PARTIAL LEGEND" |
| MARKING DESIGNATION | LEGEND |
| COLOR | BLACK INSCRIPTION NATURAL INSCRIPTION BACKGROUND |
| ATTACHMENT METHOD | HOLE |
| BASIC SHAPE STYLE | A2 RECTANGULAR |

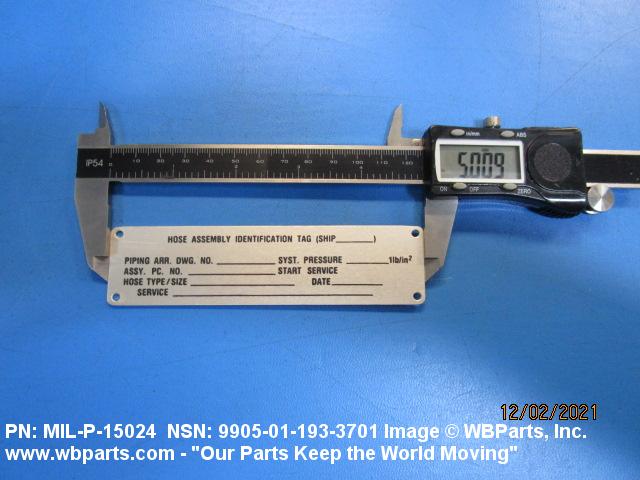

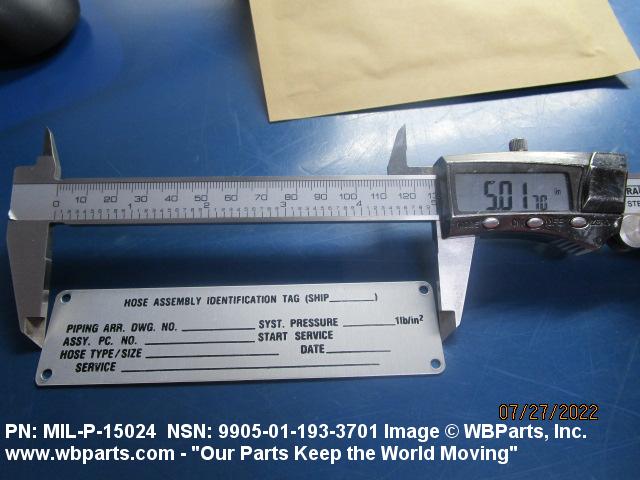

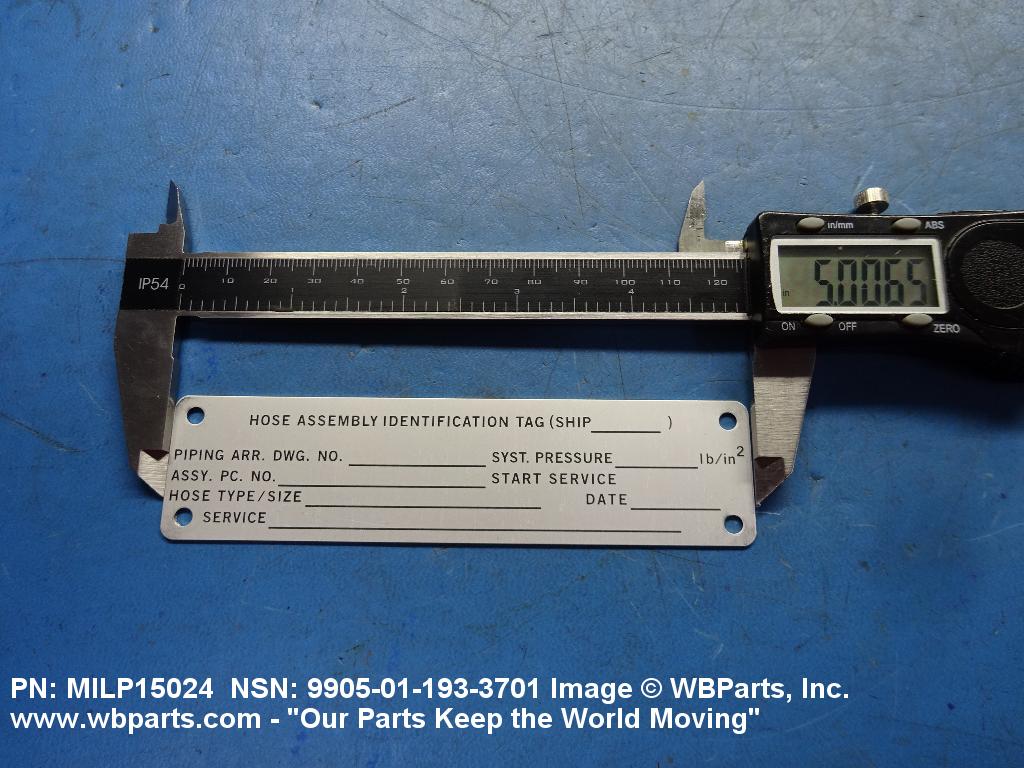

| WIDTH | 5.000 INCHES NOMINAL |

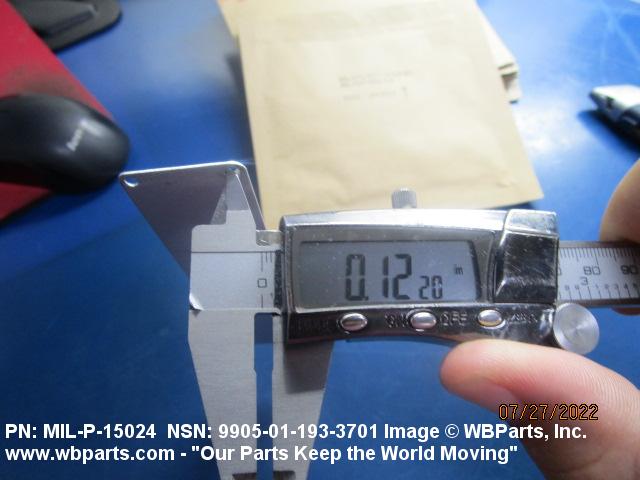

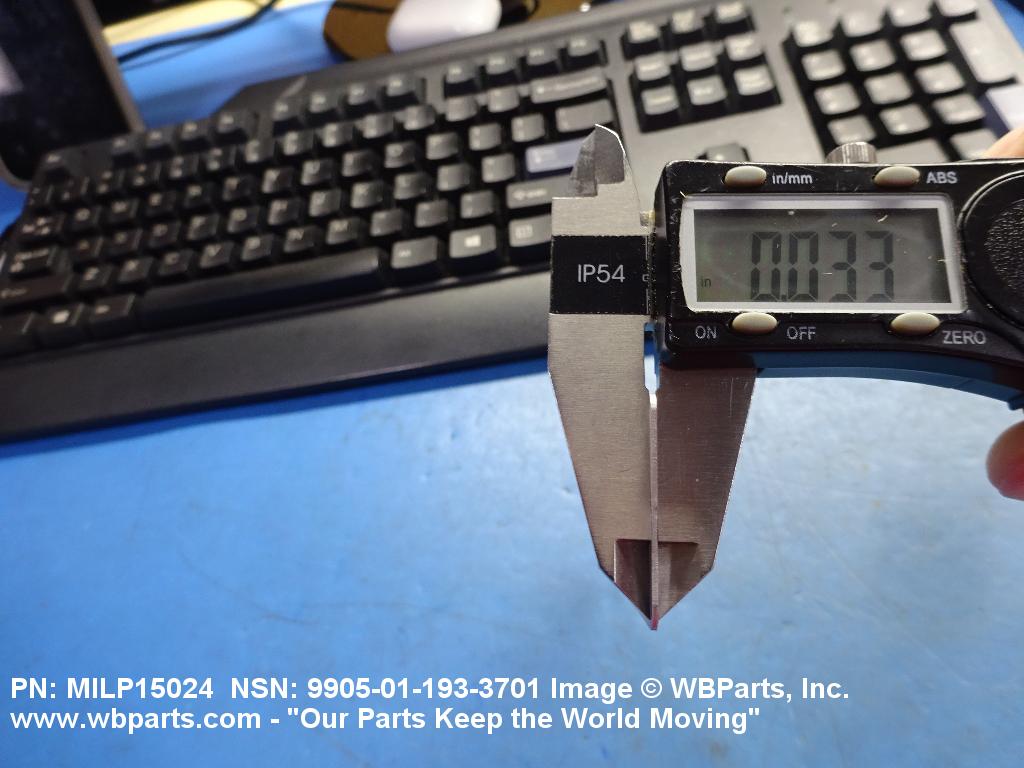

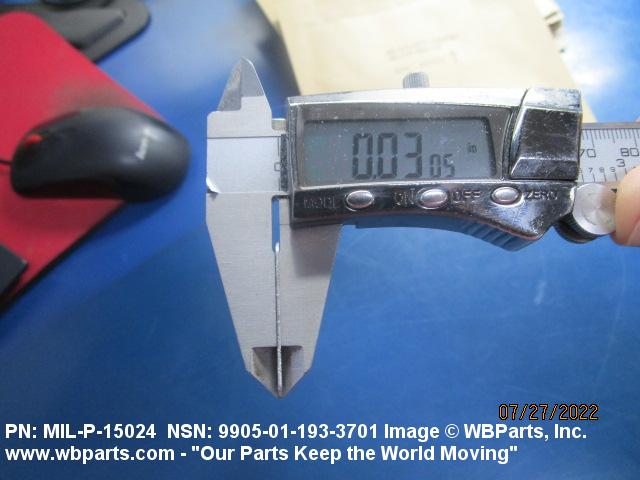

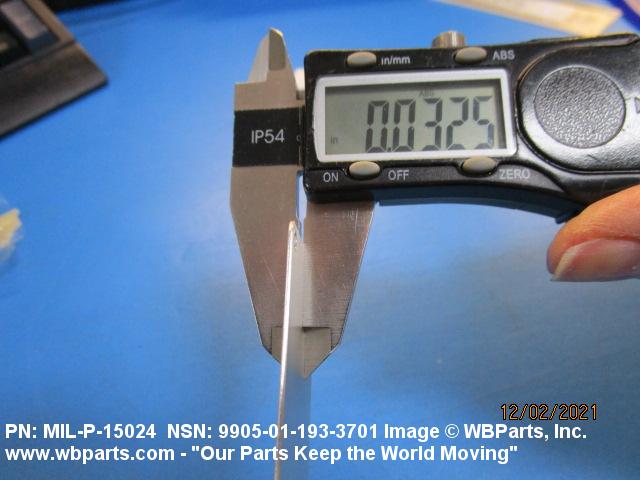

| THICKNESS | 0.030 INCHES NOMINAL |

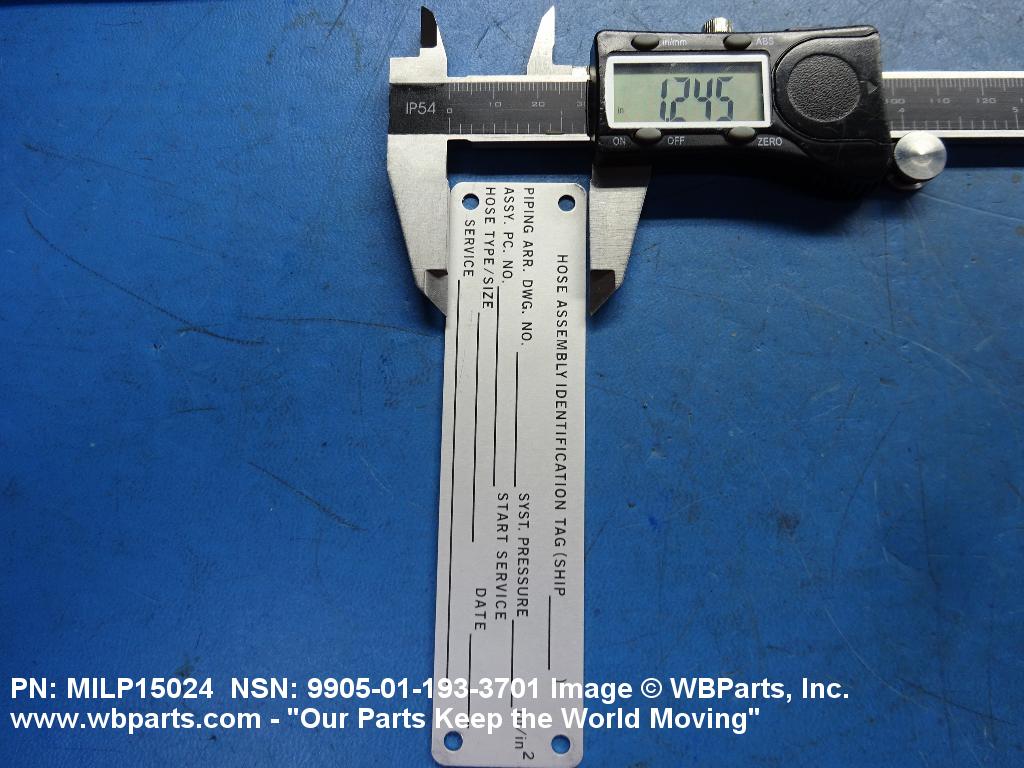

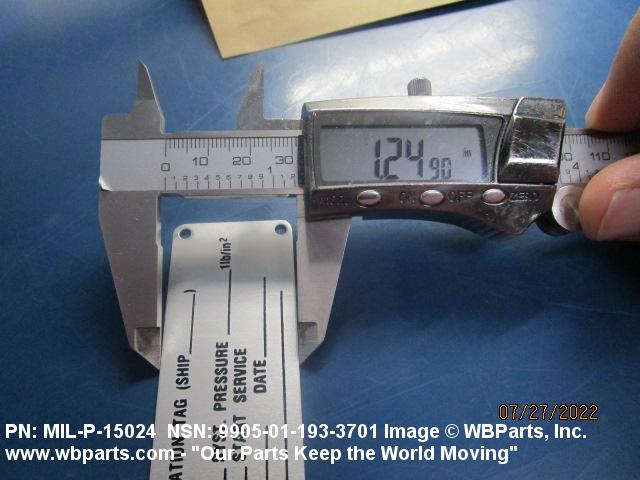

| LENGTH | 1.250 INCHES NOMINAL |
| CRITICALITY CODE JUSTIFICATION | AYBM |
| (NON-CORE DATA) CLEARANCE HOLE QUANTITY | 4 |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-P-15024 |
Restrictions/Controls & Freight Information | NSN 9905-01-193-3700
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 9905-01-193-3700
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
