NSN 9905-01-066-3084 5196135, 5-19-6135, 01-066-3084
Product Details | INSTRUCTION PLATE
9905-01-066-3084 An item which is rigid or semirigid, generally flat and smooth. Its thickness is small in comparison to its length and width. It has data thereon indicating method of operation, maintenance, and/or personnel protection. See also MARKER, IDENTIFICATION; PLATE, IDENTIFICATION; PLATE, DESIGNATION; PLATE SET, INSTRUCTION; DECAL; and LABEL. For items having the combination function of a PLATE, INSTRUCTION and PLATE, IDENTIFICATION, see PLATE, IDENTIFICATION. Excludes TAG, INSTRUCTION.
Part Alternates: 5196135, 5-19-6135, 9905-01-066-3084, 01-066-3084, 9905010663084, 010663084
Miscellaneous | Signs, Advertising Displays, and Identification Plates
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 99 | 06 OCT 1978 | 01-066-3084 | 00156 ( PLATE, INSTRUCTION ) |
Drawings & Photos | NSN 9905-01-066-3084
Demand History | NSN 9905-01-066-3084
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5196135 | 2016-10-285 | 10 | United States |
| 9905-01-066-3084 | 2016-10-278 | 10 | United States |
| 9905-01-066-3084 | 2014-04-92 | 1 | DIBBS |
| 9905-01-066-3084 | 2014-01-29 | 1 | DIBBS |
| 9905-01-066-3084 | 2014-01-02 | 1 | DIBBS |
| 9905-01-066-3084 | 2011-02-56 | 3 | NATO |
| 5-19-6135 | 2011-02-35 | 3 |
Cross Reference | NSN 9905-01-066-3084
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5-19-6135 | 81361 | EDGEWOOD CHEMICAL BIOLOGICAL CENTER ECBC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 9905-01-066-3084
Related Products | NSN 9905-01-066-3084
Technical Data | NSN 9905-01-066-3084
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYESTER |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-F-8799A, TYPE 2 MIL SPEC SINGLE MATERIAL RESPONSE |

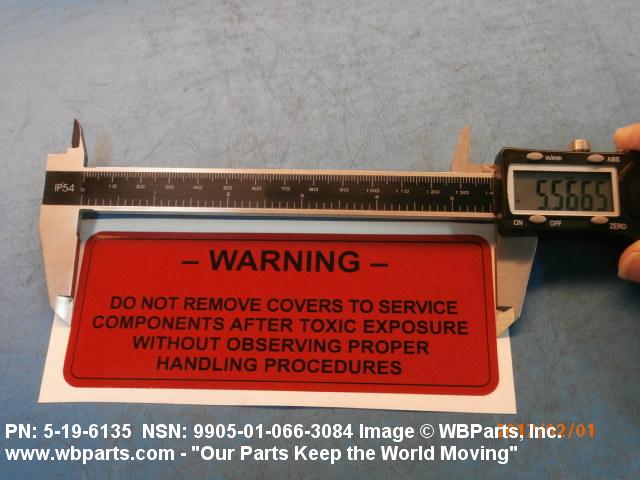

| INSCRIPTION | WARNING-DO NOT REMOVE COVERS TO SERVICE COMPONENTS AFTER TOXIC EXPOSURE WITHOUT OBSERVING PROPER HANDLING PROCEDURES |
| MARKING DESIGNATION | LEGEND |
| COLOR | BLACK INSCRIPTION RED INSCRIPTION BACKGROUND |
| ATTACHMENT METHOD | ADHESIVE |
| FEATURES PROVIDED | SOLVENT ACTIVATED ADHESIVE TAPE |
| BASIC SHAPE STYLE | A8 RECTANGULAR W/ROUNDED ENDS |
| WIDTH | 5.620 INCHES NOMINAL |

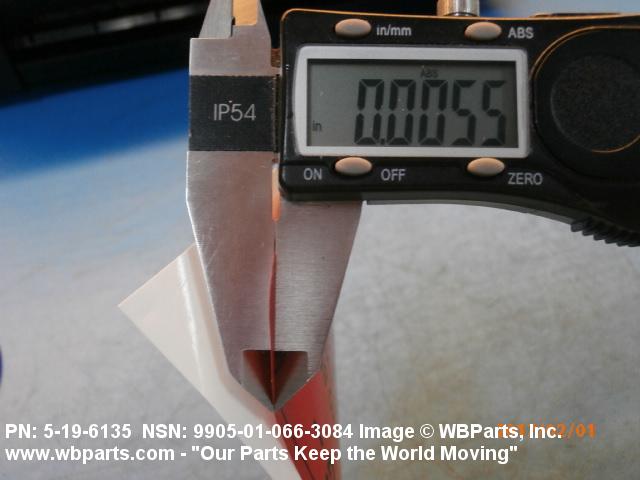

| THICKNESS | 0.003 INCHES NOMINAL |
| LENGTH | 2.250 INCHES NOMINAL |
| (NON-CORE DATA) REMOVABLE PROTECTIVE BACKING | INCLUDED |
| MANUFACTURERS CODE | 81361 |
| DESIGN CONTROL REFERENCE | 5-19-6135 |
Restrictions/Controls & Freight Information | NSN 9905-01-066-3084
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | H | 12 months |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013560 | ALUM PLATE R SHEET |
| Less than car load rating | S | 60 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | BF | U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 9905-01-066-3084
Army
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | Z | Other Munitions/CBR Categories |
| Weapons Systems/End Item or Homogeneous Group | ZK | Collective Protection Equipment |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | H | 12 months |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | H | 12 months |
| Purchasing | QTY UOM |
1 EA : Each |
