NSN 9905-01-061-1792 MILP15024, MIL-P-15024, MIL-P-15024 TYAST3
Product Details | IDENTIFICATION PLATE
9905-01-061-1792 An item which is rigid or semi-rigid, generally flat and smooth designed to be attached to an item and provides data such as name/nomenclature, weight, tire pressure, dimensional data and the like. See also MARKER,IDENTIFICATION; PLATE,DESIGNATION; PLATE,INSTRUCTION; PLATE SET,IDENTIFICATION; and TAG,MARKER. Excludes LABEL.202259000009905000000
Part Alternates: MILP15024, MIL-P-15024, MIL-P-15024 TYAST3, MILP15024TYAST3, 2645485, 9905-01-061-1792, 01-061-1792, 9905010611792, 010611792
Miscellaneous | Signs, Advertising Displays, and Identification Plates
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 99 | 14 JUN 1978 | 01-061-1792 | 00155 ( PLATE, IDENTIFICATION ) |
Drawings & Photos | NSN 9905-01-061-1792
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 9905-01-061-1792
Technical Data | NSN 9905-01-061-1792
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/8, ALLOY 5052 FED SPEC SINGLE MATERIAL RESPONSE |
| INSCRIPTION | CONTAINER,GUIDE MISSILE MARK 607 MOD O PN2645309 SERIAL --- NAVAL SEA SYSTEMS COMMAND |
| MARKING DESIGNATION | LEGEND |
| COLOR | NATURAL INSCRIPTION BLACK INSCRIPTION BACKGROUND NATURAL BORDER |
| ATTACHMENT METHOD | ADHESIVE |
| FEATURES PROVIDED | PRESSURE SENSITIVE ADHESIVE TAPE |

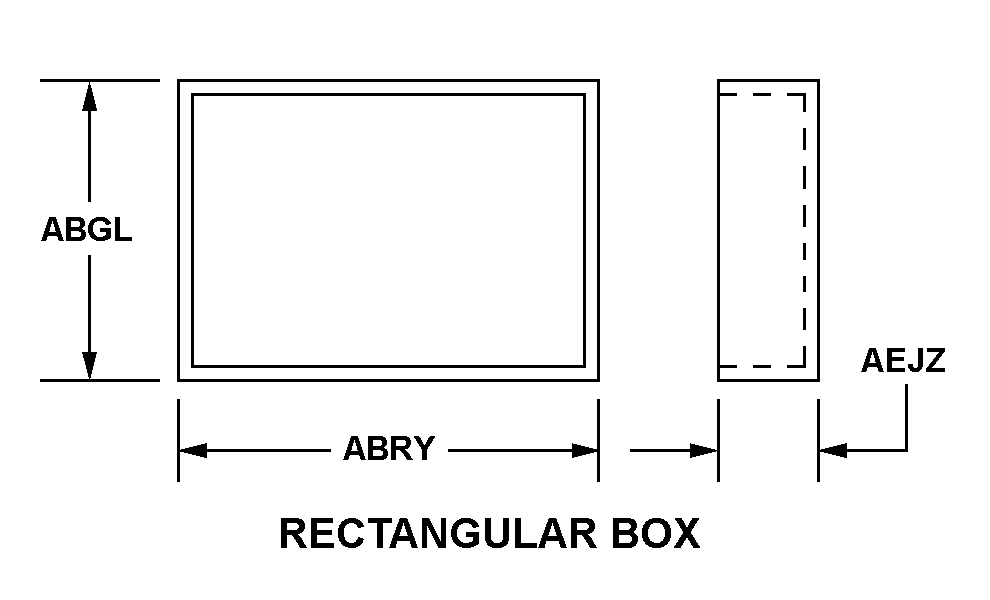

| BASIC SHAPE STYLE | A28 RECTANGULAR BOX |
| WIDTH | 4.000 INCHES NOMINAL |
| LENGTH | 3.000 INCHES NOMINAL |
| DEPTH | 0.125 INCHES NOMINAL |
| (NON-CORE DATA) CLEARANCE HOLE QUANTITY | 4 |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-P-15024 |
Restrictions/Controls & Freight Information | NSN 9905-01-061-1792
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 9905-01-061-1792
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
