NSN 9905-01-048-0648 10541879, 01-048-0648, 010480648
Product Details | INSTRUCTION PLATE
9905-01-048-0648 An item which is rigid or semirigid, generally flat and smooth. Its thickness is small in comparison to its length and width. It has data thereon indicating method of operation, maintenance, and/or personnel protection. See also MARKER, IDENTIFICATION; PLATE, IDENTIFICATION; PLATE, DESIGNATION; PLATE SET, INSTRUCTION; DECAL; and LABEL. For items having the combination function of a PLATE, INSTRUCTION and PLATE, IDENTIFICATION, see PLATE, IDENTIFICATION. Excludes TAG, INSTRUCTION.
Part Alternates: 10541879, 9905-01-048-0648, 01-048-0648, 9905010480648, 010480648
Miscellaneous | Signs, Advertising Displays, and Identification Plates
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 99 | 18 SEP 1977 | 01-048-0648 | 00156 ( PLATE, INSTRUCTION ) |
Drawings & Photos | NSN 9905-01-048-0648
Cross Reference | NSN 9905-01-048-0648
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10541879 | 19200 | US ARMY ARDEC RDECOM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 9905-01-048-0648
Technical Data | NSN 9905-01-048-0648
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| INSCRIPTION | PARTIAL LEGEND TO OPERATE FILTER HANDLE 1. LIFT AND ROTATE HANDLE CCW. 2. POSITION AT FILTER INDEX AND ROTATEHANDLE CW,FILTER CLEAR,NE |
| MARKING DESIGNATION | LEGEND |
| COLOR | RED INSCRIPTION BLACK INSCRIPTION BACKGROUND |
| ATTACHMENT METHOD | HOLE |

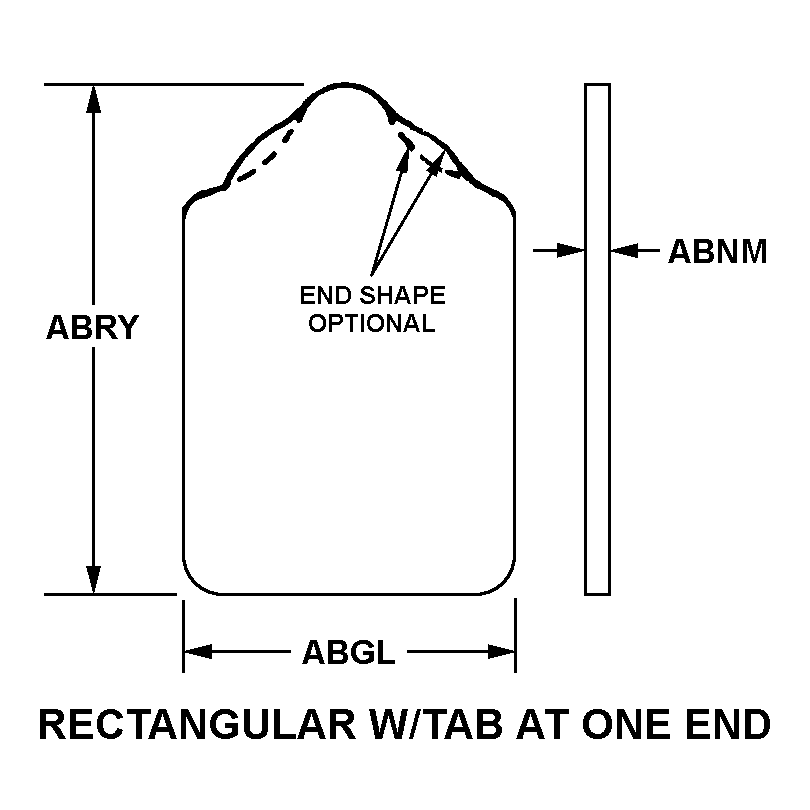

| BASIC SHAPE STYLE | A4 RECTANGULAR W/TAB AT ONE END |
| WIDTH | 1.781 INCHES NOMINAL |
| THICKNESS | 0.031 INCHES NOMINAL |
| LENGTH | 2.062 INCHES NOMINAL |
| MANUFACTURERS CODE | 19200 |
| DESIGN CONTROL REFERENCE | 10541879 |
Restrictions/Controls & Freight Information | NSN 9905-01-048-0648
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 139600 | NAMEPLATES/ESCUTCHN/LTR PLATES SUB2 |
| Less than car load rating | Q | 70 |
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | BF | U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 9905-01-048-0648
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | J | Tanks |
| Weapons Systems/End Item or Homogeneous Group | JH | Tank, 105mm, M60A3, TTS |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
