NSN 9905-00-550-4948 667044-000, 00-550-4948, 667044000
Product Details | INSTRUCTION PLATE
9905-00-550-4948 An item which is rigid or semirigid, generally flat and smooth. Its thickness is small in comparison to its length and width. It has data thereon indicating method of operation, maintenance, and/or personnel protection. See also MARKER, IDENTIFICATION; PLATE, IDENTIFICATION; PLATE, DESIGNATION; PLATE SET, INSTRUCTION; DECAL; and LABEL. For items having the combination function of a PLATE, INSTRUCTION and PLATE, IDENTIFICATION, see PLATE, IDENTIFICATION. Excludes TAG, INSTRUCTION.
Part Alternates: 667044-000, 9905-00-550-4948, 00-550-4948, 9905005504948, 667044000, 005504948
Miscellaneous | Signs, Advertising Displays, and Identification Plates
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 99 | 00-550-4948 | 00156 ( PLATE, INSTRUCTION ) |
Drawings & Photos | NSN 9905-00-550-4948
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 9905-00-550-4948
Technical Data | NSN 9905-00-550-4948
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| INSCRIPTION | ACCESS TO SENSITIVITY AND AUDIO ADJUSTMENT |
| MARKING DESIGNATION | LEGEND |
| COLOR | WHITE INSCRIPTION BLACK INSCRIPTION BACKGROUND BLACK BORDER |
| ATTACHMENT METHOD | HOLE |
| ENVIRONMENTAL PROTECTION | CORROSION RESISTANT |

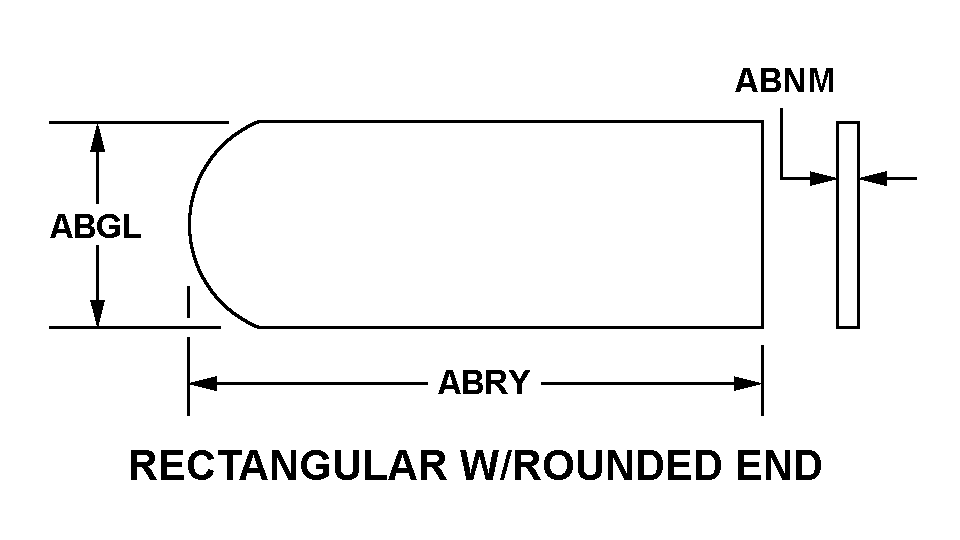

| BASIC SHAPE STYLE | A7 RECTANGULAR W/ROUNDED END |
| WIDTH | 1.812 INCHES NOMINAL |
| THICKNESS | 0.062 INCHES NOMINAL |
| LENGTH | 3.062 INCHES NOMINAL |
| MANUFACTURERS CODE | 12436 |
| DESIGN CONTROL REFERENCE | 667044-000 |
Restrictions/Controls & Freight Information | NSN 9905-00-550-4948
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
