NSN 9905-00-536-0786 S6110263434, S6110-26343-4, 00-536-0786
Product Details | INSTRUCTION PLATE
9905-00-536-0786 An item which is rigid or semirigid, generally flat and smooth. Its thickness is small in comparison to its length and width. It has data thereon indicating method of operation, maintenance, and/or personnel protection. See also MARKER, IDENTIFICATION; PLATE, IDENTIFICATION; PLATE, DESIGNATION; PLATE SET, INSTRUCTION; DECAL; and LABEL. For items having the combination function of a PLATE, INSTRUCTION and PLATE, IDENTIFICATION, see PLATE, IDENTIFICATION. Excludes TAG, INSTRUCTION.
Part Alternates: S6110263434, S6110-26343-4, 9905-00-536-0786, 00-536-0786, 9905005360786, 005360786
Miscellaneous | Signs, Advertising Displays, and Identification Plates
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 99 | 17 SEP 1974 | 00-536-0786 | 00156 ( PLATE, INSTRUCTION ) |

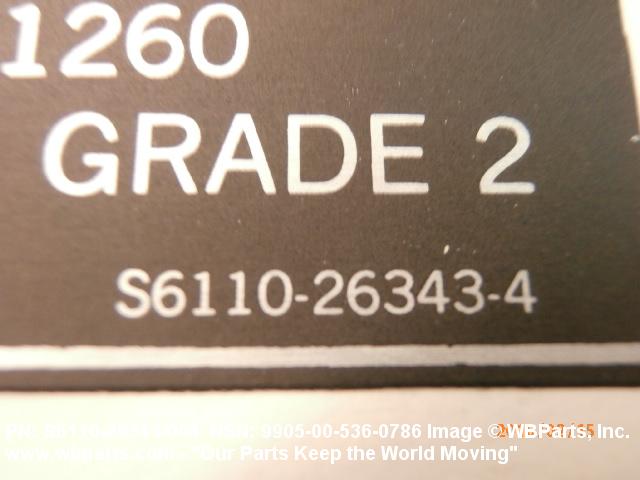

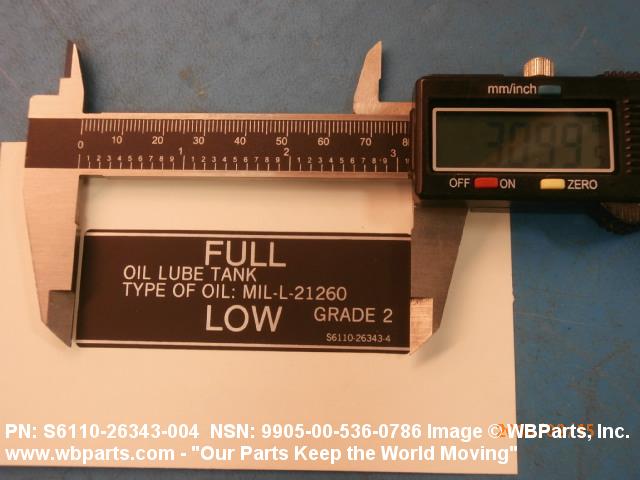

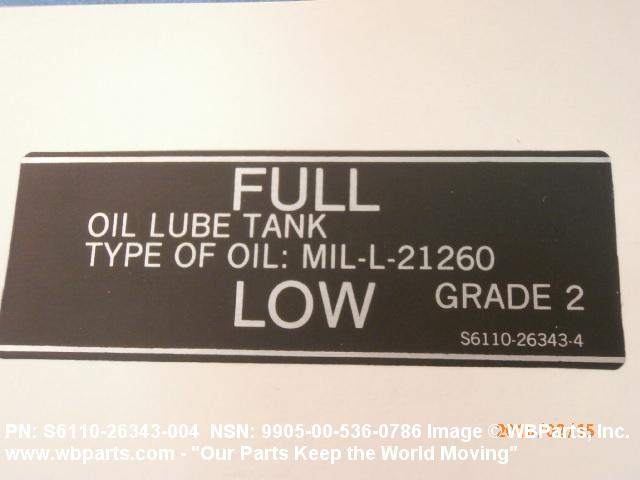

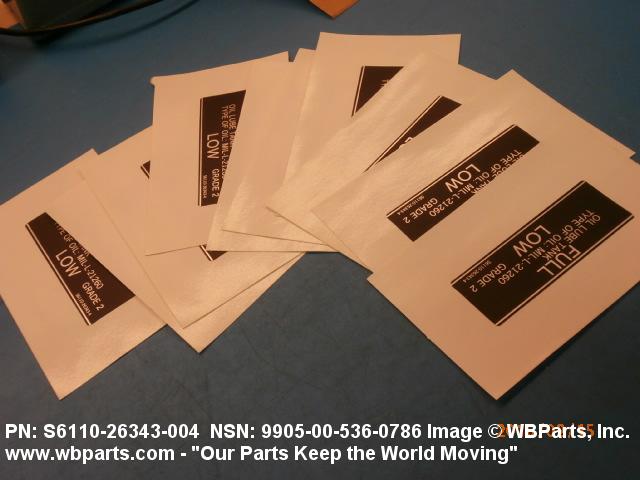

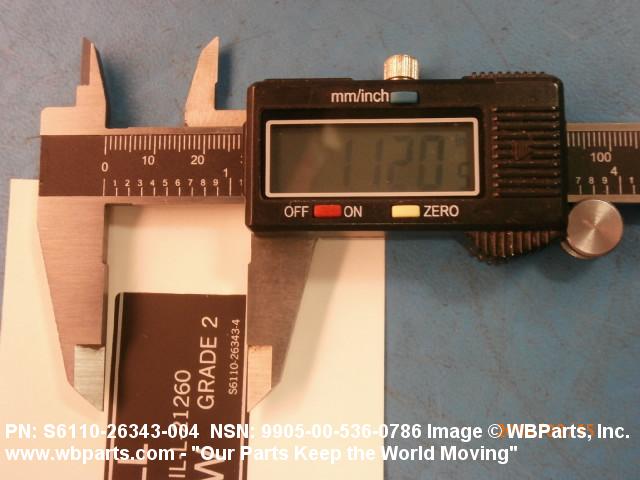

Drawings & Photos | NSN 9905-00-536-0786
Demand History | NSN 9905-00-536-0786
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 9905-00-536-0786 | 2015-09-269 | 10 | Malaysia |
| 9905-00-536-0786 | 2015-09-260 | 5 | Malaysia |
Cross Reference | NSN 9905-00-536-0786
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| S6110-26343-4 | 78286 | SIKORSKY AIRCRAFT CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 9905-00-536-0786
Technical Data | NSN 9905-00-536-0786
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-A-148-CANCELLED MIL SPEC 1ST MATERIAL RESPONSE OR QQ-A-250/1, ALLOY 1100 FED SPEC 2ND MATERIAL RESPONSE OR QQ-A-250/11, ALLOY 6061 FED SPEC 3RD MATERIAL RESPONSE |
| INSCRIPTION | INSCRIBE WITH FULL,OIL LUBE TANK,TYPE OFGTALA2 |
| MARKING DESIGNATION | LEGEND |
| WIDTH | 3.250 INCHES NOMINAL |
| THICKNESS | 0.003 INCHES NOMINAL |
| LENGTH | 1.370 INCHES NOMINAL |
| MANUFACTURERS CODE | 78286 |
| DESIGN CONTROL REFERENCE | S6110-26343-4 |
Restrictions/Controls & Freight Information | NSN 9905-00-536-0786
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
