NSN 9905-00-286-8107 52B6277, 00-286-8107, 002868107
Product Details | INSTRUCTION PLATE
9905-00-286-8107 An item which is rigid or semirigid, generally flat and smooth. Its thickness is small in comparison to its length and width. It has data thereon indicating method of operation, maintenance, and/or personnel protection. See also MARKER, IDENTIFICATION; PLATE, IDENTIFICATION; PLATE, DESIGNATION; PLATE SET, INSTRUCTION; DECAL; and LABEL. For items having the combination function of a PLATE, INSTRUCTION and PLATE, IDENTIFICATION, see PLATE, IDENTIFICATION. Excludes TAG, INSTRUCTION.
Part Alternates: 52B6277, 9905-00-286-8107, 00-286-8107, 9905002868107, 002868107
Miscellaneous | Signs, Advertising Displays, and Identification Plates
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 99 | 01 JAN 1963 | 00-286-8107 | 00156 ( PLATE, INSTRUCTION ) |

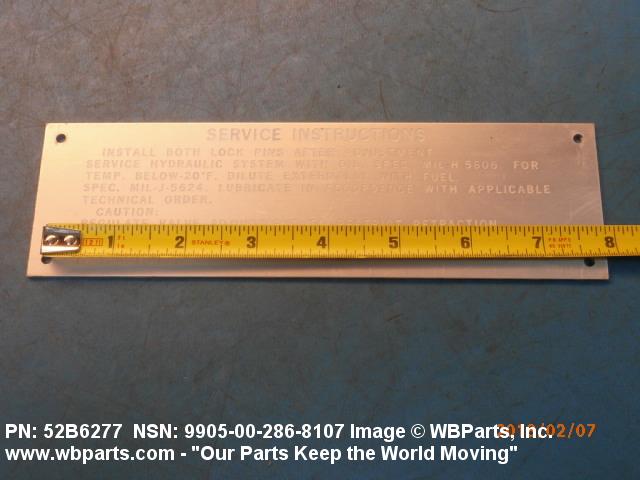

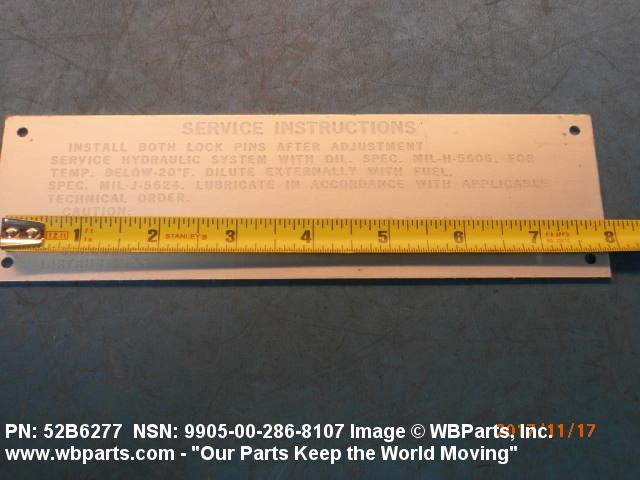

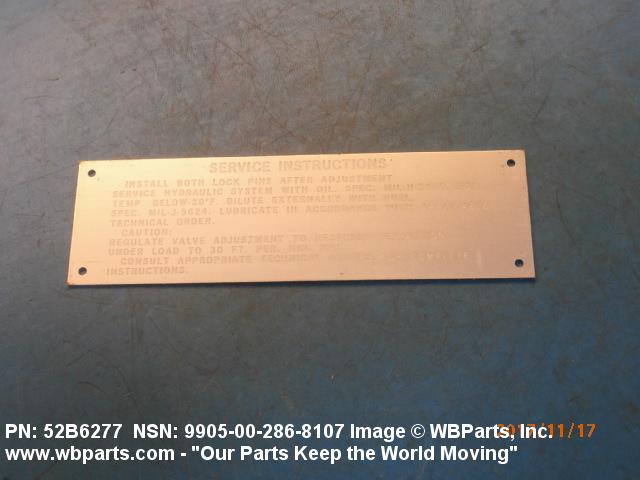

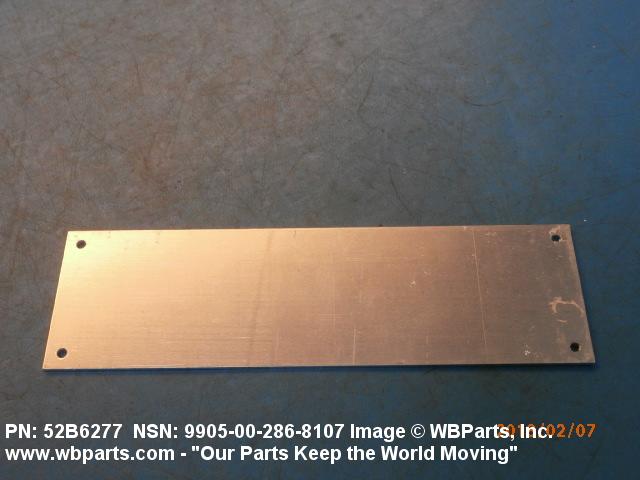

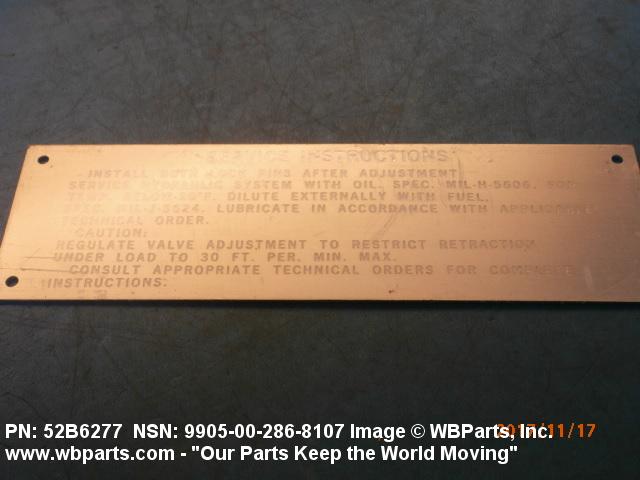

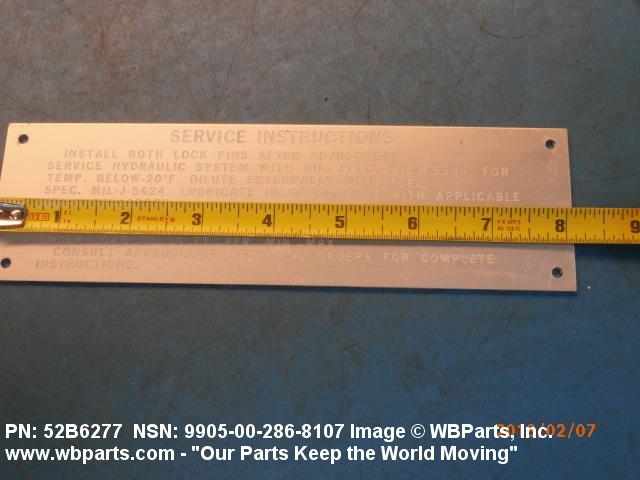

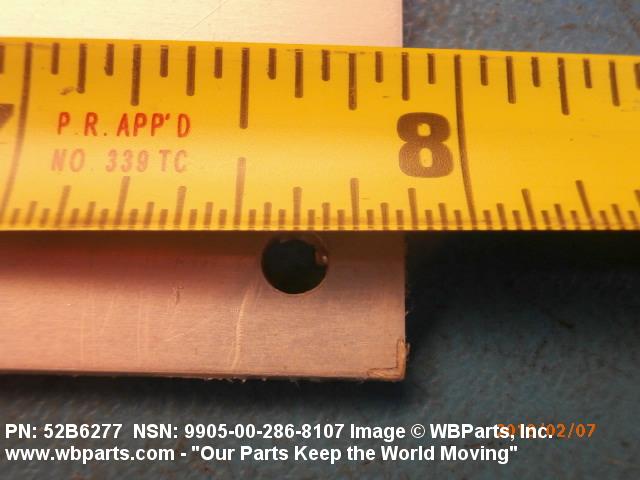

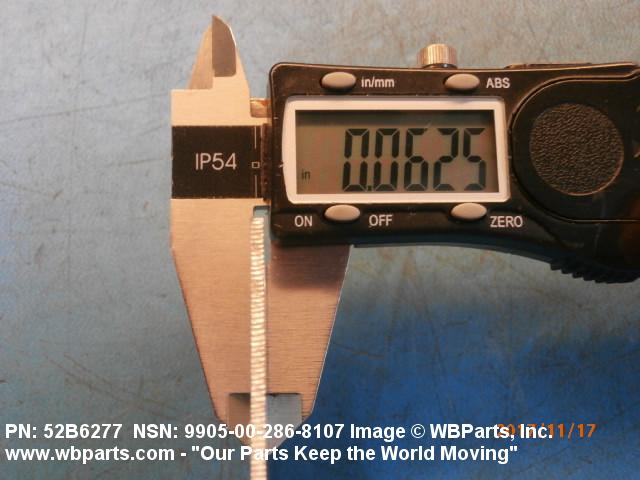

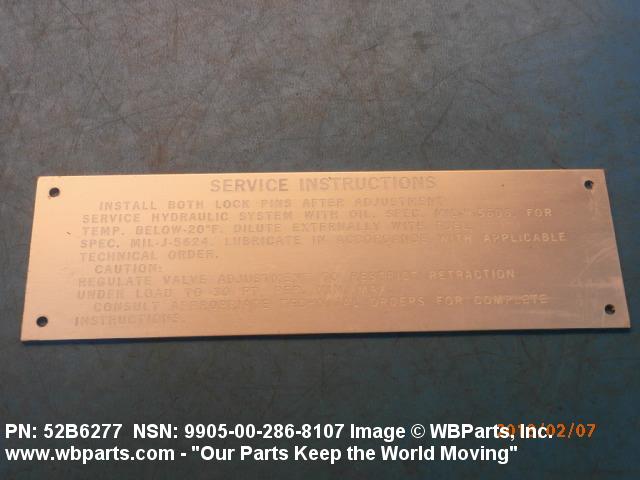

Drawings & Photos | NSN 9905-00-286-8107
Demand History | NSN 9905-00-286-8107
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 52B6277 | 2018-01-25 | 20 | United States |
| 52B6277 | 2017-11-312 | 10 | United States |
| 9905-00-286-8107 | 2014-02-48 | 6 | DIBBS |
| 9905-00-286-8107 | 2013-12-351 | 1 | DIBBS |
| 9905-00-286-8107 | 2013-12-351 | 6 | DIBBS |
| 9905-00-286-8107 | 2013-01-08 | 4 | US |
| 9905-00-286-8107 | 2010-06-181 | 16 | DIBBS |
| 9905-00-286-8107 | 2010-06-167 | 16 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 9905-00-286-8107
Technical Data | NSN 9905-00-286-8107
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/1, ALLOY 1100 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | ANODIZE |

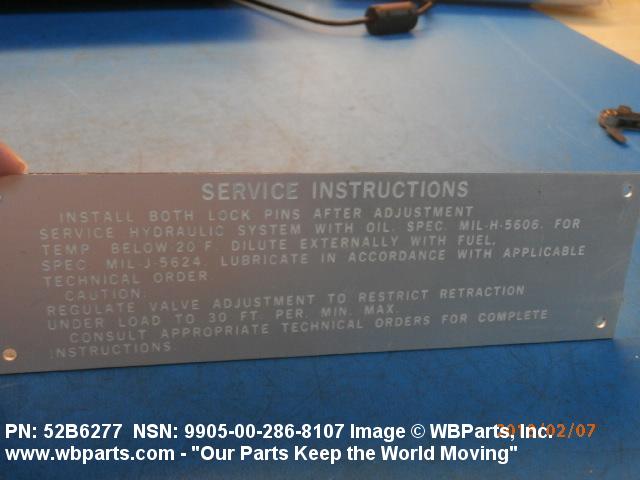

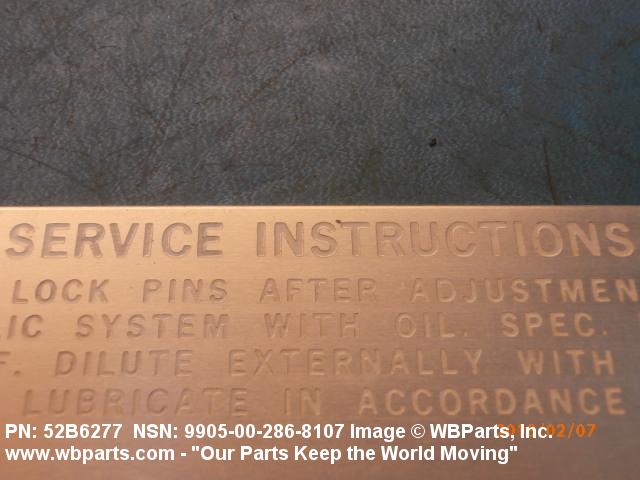

| INSCRIPTION | SERVICE INSTRUCTIONS |
| MARKING DESIGNATION | LEGEND |
| COLOR | WHITE, FED STD 595, 17875 INSCRIPTION NATURAL INSCRIPTION BACKGROUND |
| ATTACHMENT METHOD | RING |
| BASIC SHAPE STYLE | A2 RECTANGULAR |

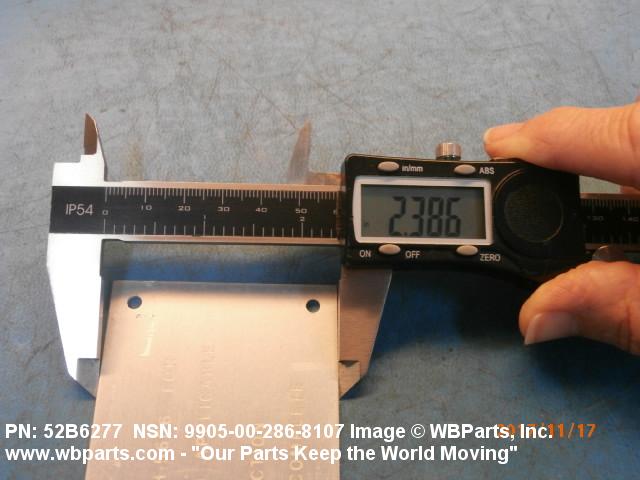

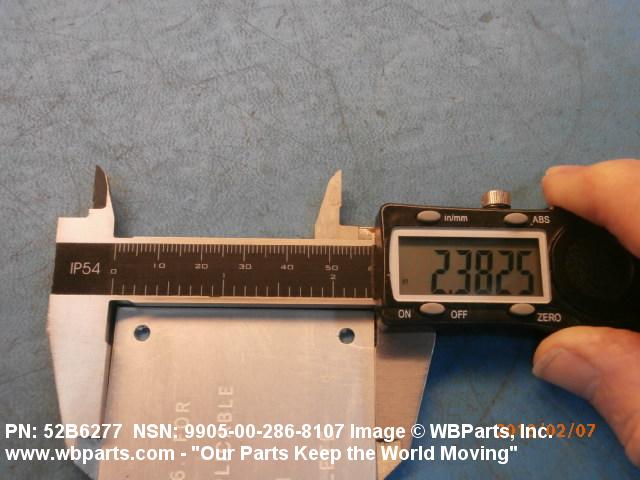

| WIDTH | 2.375 INCHES NOMINAL |

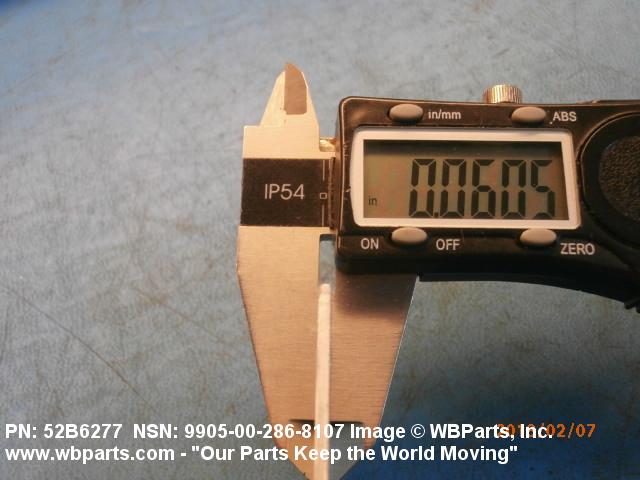

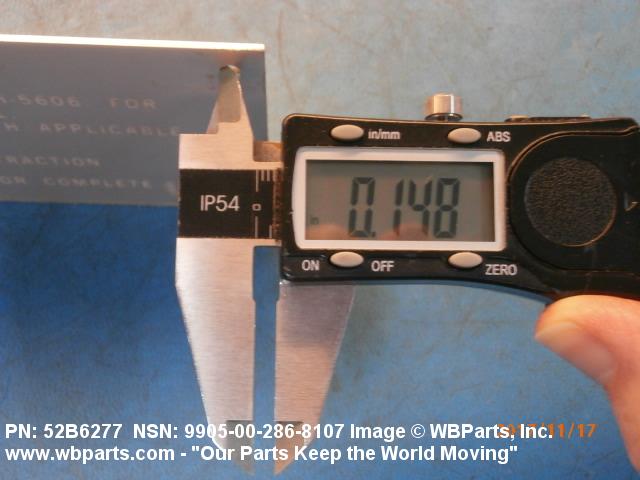

| THICKNESS | 0.054 INCHES NOMINAL |

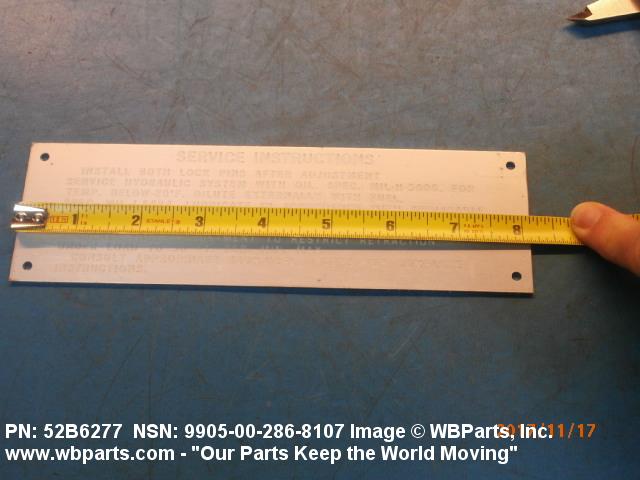

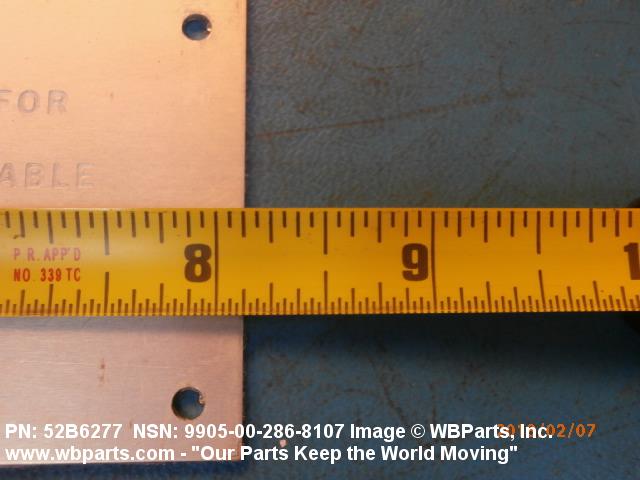

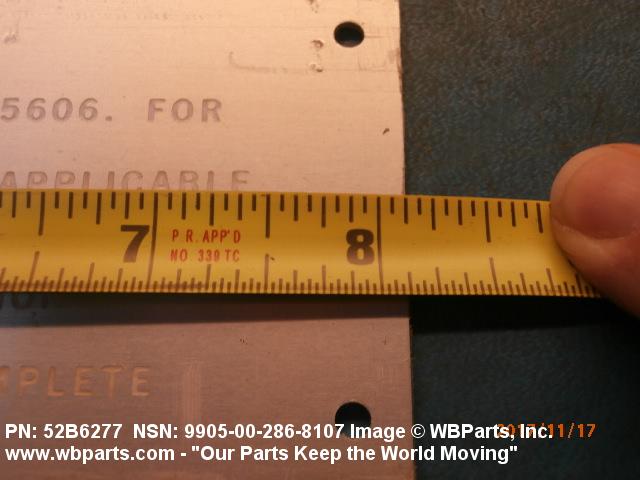

| LENGTH | 8.125 INCHES NOMINAL |
| MANUFACTURERS CODE | 98750 |
| DESIGN CONTROL REFERENCE | 52B6277 |
Restrictions/Controls & Freight Information | NSN 9905-00-286-8107
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 176050 | SIGNS ELECTRIC NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 9905-00-286-8107
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
