9540-01-239-6529 A structural shape fabricated from a ferrous or nonferrous material and resembles the following cross-sectional forms: For the letter H, both flanges of the H section are equal or longer than the width measured along the axis of the web; for the letter I, a 16 2/3 percent slope on the inside face of the ferrous type flange, either one or both of the nonferrous type flanges are shorter than the length measured along the axis of the web; for the letters T and Z, on nonferrous type, the web is usually at right angles to the flanges. Letter H section may have a maximum of 5 percent slope on the inside face of the flanges.20295200017Structural Shapes95400040Structural Shapes, Nonferrous Base Metal

Part Alternates: 65209-09031-101, 9540-01-239-6529, 01-239-6529, 6520909031101, 9540012396529, 012396529

Metal Bars, Sheets, and Shapes | Structural Shapes, Nonferrous Base Metal

Supply Group (FSG) NSN Assign. NIIN
95 01 SEP 1986 01-239-6529

Drawings & Photos | NSN 9540-01-239-6529


Cross Reference | NSN 9540-01-239-6529

Part Number Cage Code Manufacturer
65209-09031-101 78286 SIKORSKY AIRCRAFT CORPORATION

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 9540-01-239-6529

Technical Data | NSN 9540-01-239-6529

Characteristic Specifications
MATERIAL ALUMINUM ALLOY, QQ-A-200/3
FABRICATION METHOD EXTRUDED
LENGTH 7.000 FEET MINIMUM

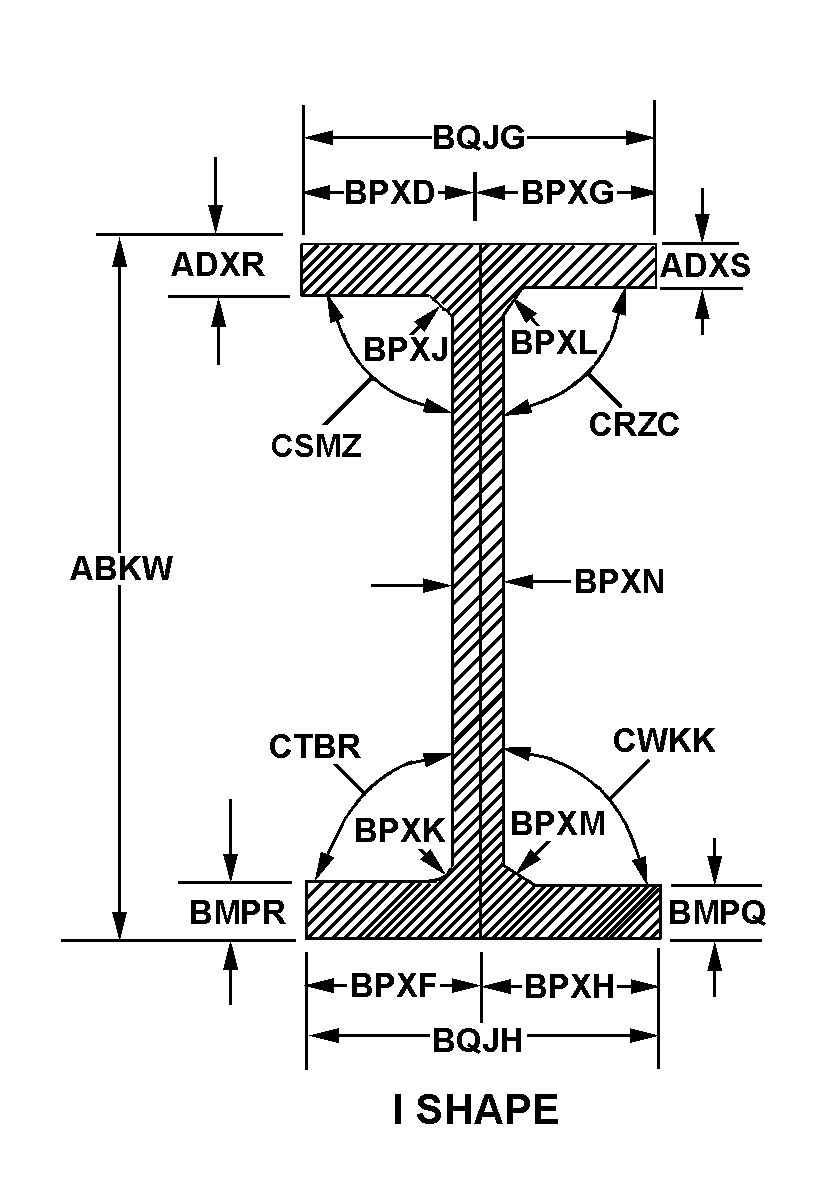

BASIC SHAPE STYLE H4 I SHAPE
LEFT SIDE TOP FLANGE THICKNESS 0.062 INCHES NOMINAL
RIGHT SIDE TOP FLANGE THICKNESS 0.062 INCHES NOMINAL
TOP FLANGE WIDTH 0.625 INCHES NOMINAL

Restrictions/Controls & Freight Information | NSN 9540-01-239-6529

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
No Freight Information
