Product Details | STRUCTURAL BEAM
9540-00-881-3897 A structural shape fabricated from a ferrous or nonferrous material and resembles the following cross-sectional forms: For the letter H, both flanges of the H section are equal or longer than the width measured along the axis of the web; for the letter I, a 16 2/3 percent slope on the inside face of the ferrous type flange, either one or both of the nonferrous type flanges are shorter than the length measured along the axis of the web; for the letters T and Z, on nonferrous type, the web is usually at right angles to the flanges. Letter H section may have a maximum of 5 percent slope on the inside face of the flanges.20295200017Structural Shapes95400040Structural Shapes, Nonferrous Base Metal
Part Alternates: AMS-QQ-A-200/11, AMSQQA20011, S1544600, QQA20011, QQA200-11, 10872, 9540-00-881-3897, 00-881-3897, 9540008813897, 008813897
Metal Bars, Sheets, and Shapes | Structural Shapes, Nonferrous Base Metal
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 95 | 01 JAN 1962 | 00-881-3897 | 37018 ( BEAM, STRUCTURAL ) |
Drawings & Photos | NSN 9540-00-881-3897
Demand History | NSN 9540-00-881-3897
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| QQA20011 | 2020-01-03 | 1 | US |
| 10872 | 2012-11-324 | 2 | US |
| QQA20011 | 2009-10-287 | 14 | FX |
Cross Reference | NSN 9540-00-881-3897
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 9540-00-881-3897
Technical Data | NSN 9540-00-881-3897
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY AMS-QQ-A-200/11, ALLOY 7075 |
| FABRICATION METHOD | EXTRUDED |
| HEAT TREATMENT | T-6 SOLUTION HEAT TREATED |
| LENGTH | 10.000 FEET MINIMUM AND 12.000 FEET MAXIMUM |

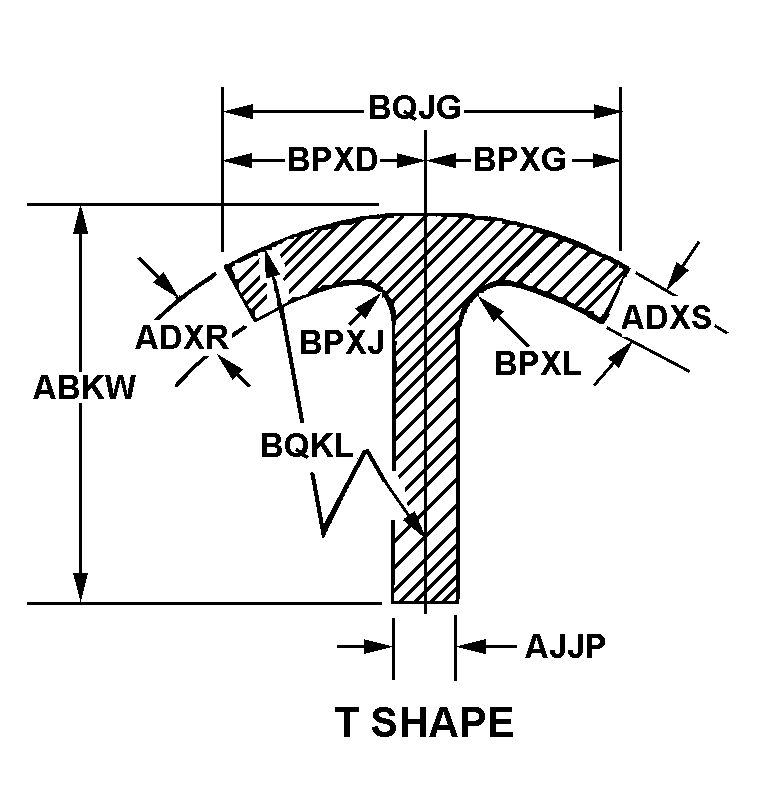

| BASIC SHAPE STYLE | J12 T SHAPE |
