Product Details | STRUCTURAL ANGLE
9540-00-596-2798 A structural shape fabricated from a ferrous or nonferrous material and resembling the letter L in cross-sectional form. The edges may have a bulb, be rounded, and the inside corner may have a fillet.20295200017Structural Shapes95400040Structural Shapes, Nonferrous Base Metal
Part Alternates: AMSQQA2003, AMS-QQA200-3, LS703, QQA2003, QQA200-3, 31448, 9540-00-596-2798, 00-596-2798, 9540005962798, 005962798
Metal Bars, Sheets, and Shapes | Structural Shapes, Nonferrous Base Metal
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 95 | 01 JAN 1963 | 00-596-2798 | 37017 ( ANGLE, STRUCTURAL ) |
Drawings & Photos | NSN 9540-00-596-2798
Demand History | NSN 9540-00-596-2798
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AMSQQA2003 | 2015-05-139 | 12 | US |
| QQA2003 | 2009-11-323 | 1 | US |
Cross Reference | NSN 9540-00-596-2798
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 9540-00-596-2798
Technical Data | NSN 9540-00-596-2798
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| FABRICATION METHOD | EXTRUDED |
| LENGTH | 10.000 FEET MINIMUM AND 12.000 FEET MAXIMUM |
| BASIC SHAPE STYLE | E7 ANGLE |
| OVERALL HEIGHT | 0.875 INCHES NOMINAL |
| OVERALL WIDTH | 1.000 INCHES NOMINAL |
| LEFT SIDE FLANGE THICKNESS | 0.078 INCHES NOMINAL |
| HEEL HEIGHT | 0.007 INCHES NOMINAL |
| FLANGE OUTER FACE TO BOTTOM FLANGE CENTERLINE DISTANCE | 0.500 INCHES NOMINAL |
| OUTER FACE BOTTOM FLANGE RIGHT END CORNER RADIUS | 18.000 INCHES NOMINAL |
| FIRST TIP STYLE | 8 RIGHT BULBOUS |
| FIRST TIP RADIUS | 0.125 INCHES NOMINAL |
| FIRST TIP DIAMETER | 0.156 INCHES NOMINAL |
| SECOND TIP RELATIONSHIP TO FIRST TIP | NOT IDENTICAL |

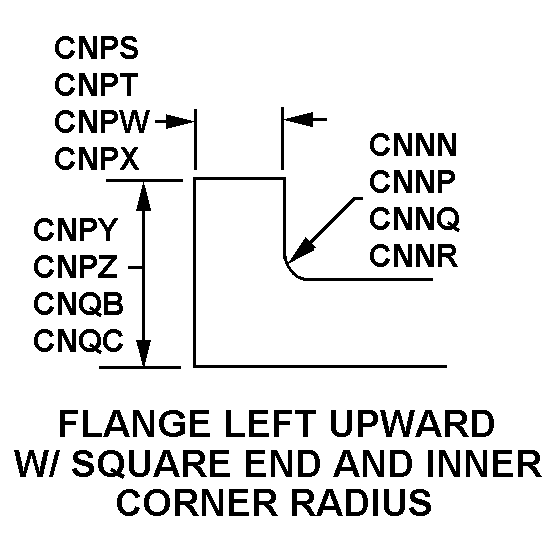

| SECOND TIP STYLE | 81 FLANGE LEFT UPWARD WITH SQUARE END AND INNER CORNER RADIUS |
| WEIGHT PER UNIT MEASURE | 0.170 POUNDS PER LINEAR FOOT |
Restrictions/Controls & Freight Information | NSN 9540-00-596-2798
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013140 | ALUMINUM ANGLES |
| Less than car load rating | S | 60 |
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | R | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
