NSN 9540-00-595-8676 ASTM B221, ASTMB221, QQ-A-200/3
Product Details | STRUCTURAL ANGLE
9540-00-595-8676 A structural shape fabricated from a ferrous or nonferrous material and resembling the letter L in cross-sectional form. The edges may have a bulb, be rounded, and the inside corner may have a fillet.20295200017Structural Shapes95400040Structural Shapes, Nonferrous Base Metal
Part Alternates: ASTM B221, ASTMB221, QQ-A-200/3, QQA2003, 120024, 33751, 9540-00-595-8676, 00-595-8676, 9540005958676, 005958676
Metal Bars, Sheets, and Shapes | Structural Shapes, Nonferrous Base Metal
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 95 | 01 JAN 1963 | 00-595-8676 | 37017 ( ANGLE, STRUCTURAL ) |
Drawings & Photos | NSN 9540-00-595-8676
Demand History | NSN 9540-00-595-8676
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| QQA2003 | 2009-11-323 | 1 | US |
Cross Reference | NSN 9540-00-595-8676
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 9540-00-595-8676
Related Products | NSN 9540-00-595-8676
Technical Data | NSN 9540-00-595-8676
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY, QQ-A-200/3 |
| FABRICATION METHOD | EXTRUDED |
| HEAT TREATMENT | T-4 SOLUTION HEAT TREATED |
| LENGTH | 10.000 FEET MINIMUM AND 20.000 FEET MAXIMUM |
| BASIC SHAPE STYLE | E2 ANGLE |
| OVERALL HEIGHT | 1.500 INCHES NOMINAL |
| OVERALL WIDTH | 1.500 INCHES NOMINAL |
| LEFT SIDE FLANGE THICKNESS | 0.078 INCHES NOMINAL |
| FILLET RADIUS WHERE LEFT FLANGE JOINS BASE FLANGE | 0.219 INCHES NOMINAL |
| BASE FLANGE THICKNESS | 0.078 INCHES NOMINAL |
| LEFT INSIDE ANGLE | 85.0 DEGREES NOMINAL |

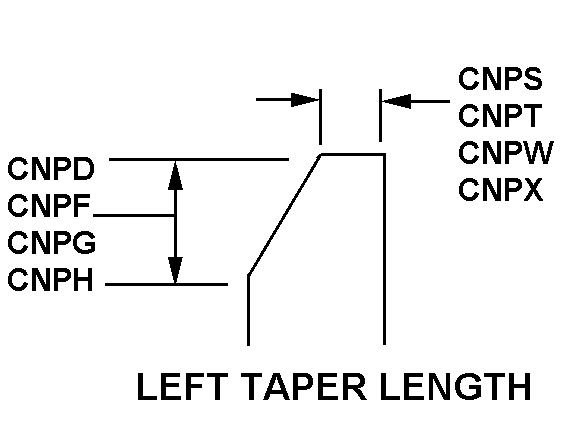

| FIRST TIP STYLE | 14 LEFT TAPER LENGTH |
| FIRST TIP TAPER LENGTH | 0.219 INCHES NOMINAL |
| FIRST TIP THICKNESS | 0.031 INCHES NOMINAL |
| SECOND TIP RELATIONSHIP TO FIRST TIP | NOT IDENTICAL |
| SECOND TIP STYLE | 17 LOWER |
| SECOND TIP TAPER LENGTH | 0.219 INCHES NOMINAL |
| SECOND TIP THICKNESS | 0.031 INCHES NOMINAL |
| WEIGHT PER UNIT MEASURE | 0.280 POUNDS PER LINEAR FOOT |
| NONDEFINITIVE SPEC/STD DATA | T4 TEMPER |
Restrictions/Controls & Freight Information | NSN 9540-00-595-8676
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013140 | ALUMINUM ANGLES |
| Less than car load rating | ||
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | R | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
