NSN 9540-00-516-8016 ASTM B221, ASTMB221, QQ-A-200/11
Product Details | STRUCTURAL ANGLE
9540-00-516-8016 A structural shape fabricated from a ferrous or nonferrous material and resembling the letter L in cross-sectional form. The edges may have a bulb, be rounded, and the inside corner may have a fillet.20295200017Structural Shapes95400040Structural Shapes, Nonferrous Base Metal
Part Alternates: ASTM B221, ASTMB221, QQ-A-200/11, QQA20011, 1440063, 67199, 9540-00-516-8016, 00-516-8016, 9540005168016, 005168016
Metal Bars, Sheets, and Shapes | Structural Shapes, Nonferrous Base Metal
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 95 | 01 JAN 1963 | 00-516-8016 | 37017 ( ANGLE, STRUCTURAL ) |

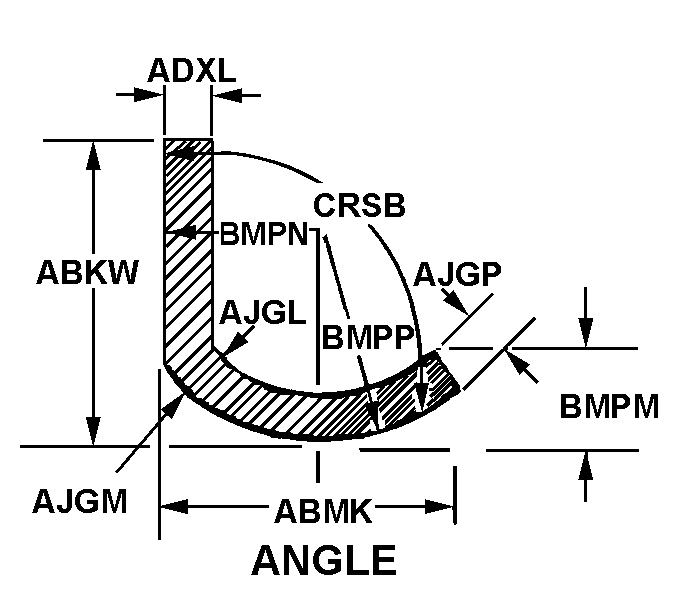

Drawings & Photos | NSN 9540-00-516-8016
Demand History | NSN 9540-00-516-8016
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 67199 | 2022-09-255 | 1 | KZ |
| 67199 | 2022-09-252 | 1 | Poland |
| QQA20011 | 2020-01-03 | 1 | US |
| QQA20011 | 2009-10-287 | 14 | FX |
Cross Reference | NSN 9540-00-516-8016
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 9540-00-516-8016
Related Products | NSN 9540-00-516-8016
Technical Data | NSN 9540-00-516-8016
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY, ASTM B221, ALLOY 7075 |
| FABRICATION METHOD | EXTRUDED |
| HEAT TREATMENT | T-6 SOLUTION HEAT TREATED |
| LENGTH | 10.000 FEET MINIMUM AND 12.000 FEET MAXIMUM |
| BASIC SHAPE STYLE | E9 ANGLE |
| OVERALL HEIGHT | 1.125 INCHES NOMINAL |
| OVERALL WIDTH | 1.125 INCHES NOMINAL |
| LEFT SIDE FLANGE THICKNESS | 0.125 INCHES NOMINAL |
| FILLET RADIUS WHERE LEFT FLANGE JOINS BASE FLANGE | 0.125 INCHES NOMINAL |
| OUTER RADIUS WHERE LEFT FLANGE JOINS BASE FLANGE | 0.031 INCHES NOMINAL |
| BASE FLANGE THICKNESS | 0.090 INCHES NOMINAL |
| TOE OVERALL HEIGHT | 0.063 INCHES NOMINAL |
| FLANGE OUTER FACE TO BOTTOM FLANGE CENTERLINE DISTANCE | 0.562 INCHES NOMINAL |
| OUTER FACE BOTTOM FLANGE RIGHT END CORNER RADIUS | 10.000 INCHES NOMINAL |
| LEFT OUTSIDE ANGLE | 90.0 DEGREES NOMINAL |
| FIRST TIP STYLE | 8 RIGHT BULBOUS |
| FIRST TIP RADIUS | 0.125 INCHES NOMINAL |
| FIRST TIP DIAMETER | 0.250 INCHES NOMINAL |
| SECOND TIP RELATIONSHIP TO FIRST TIP | NOT IDENTICAL |
| SECOND TIP STYLE | 7 SQUARE WITH INNER AND OUTER CORNER RADII |
| SECOND TIP INNER RADIUS | 0.032 INCHES NOMINAL |
| SECOND TIP OUTER RADIUS | 0.032 INCHES NOMINAL |
| WEIGHT PER UNIT MEASURE | 0.310 POUNDS PER LINEAR FOOT |
| NONDEFINITIVE SPEC/STD DATA | ALLOY 7075, TEMPER T6 |
Restrictions/Controls & Freight Information | NSN 9540-00-516-8016
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013140 | ALUMINUM ANGLES |
| Less than car load rating | ||
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | R | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 9540-00-516-8016
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 FT : Foot |
