NSN 9540-00-434-1759 AMSQQA20011, AMS-QQA200-11, LS3959
Product Details | STRUCTURAL BEAM
9540-00-434-1759 A structural shape fabricated from a ferrous or nonferrous material and resembles the following cross-sectional forms: For the letter H, both flanges of the H section are equal or longer than the width measured along the axis of the web; for the letter I, a 16 2/3 percent slope on the inside face of the ferrous type flange, either one or both of the nonferrous type flanges are shorter than the length measured along the axis of the web; for the letters T and Z, on nonferrous type, the web is usually at right angles to the flanges. Letter H section may have a maximum of 5 percent slope on the inside face of the flanges.20295200017Structural Shapes95400040Structural Shapes, Nonferrous Base Metal
Part Alternates: AMSQQA20011, AMS-QQA200-11, LS3959, PA17308, QQA20011, QQA200-11, 16334, 9540-00-434-1759, 00-434-1759, 9540004341759, 004341759
Metal Bars, Sheets, and Shapes | Structural Shapes, Nonferrous Base Metal
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 95 | 11 FEB 1972 | 00-434-1759 | 37018 ( BEAM, STRUCTURAL ) |

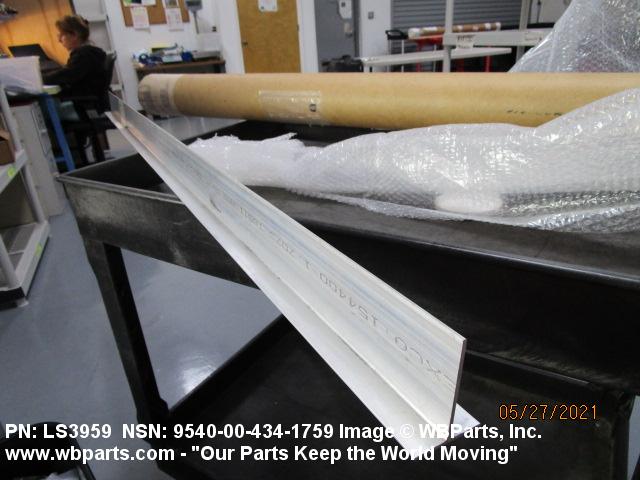

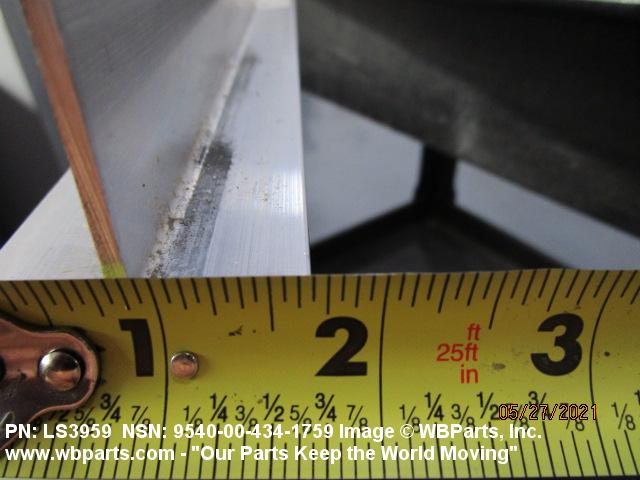

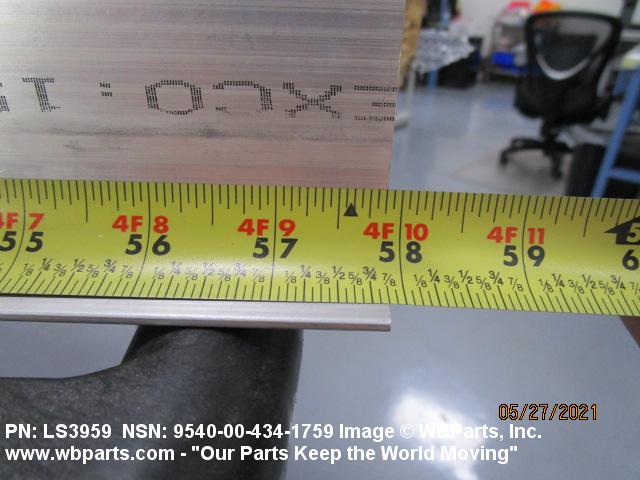

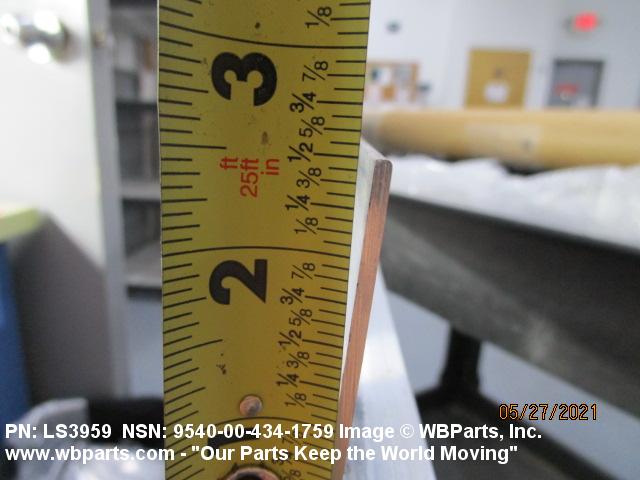

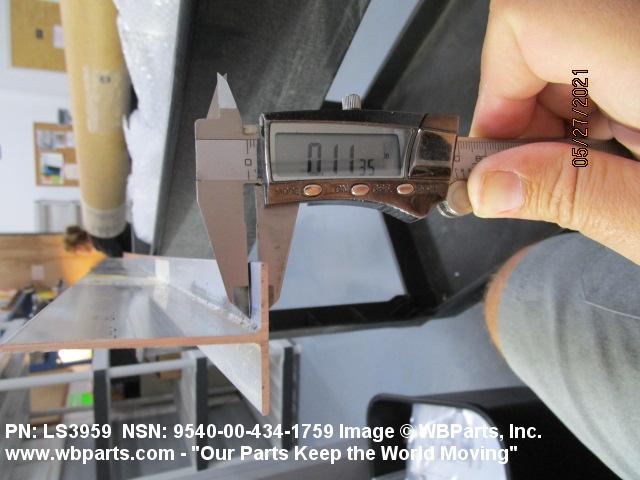

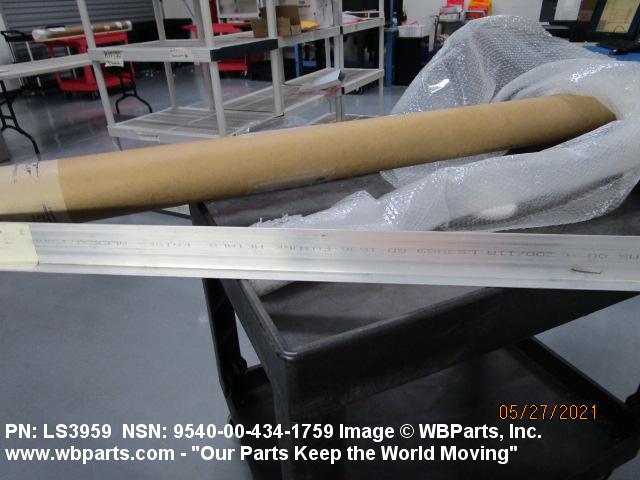

Drawings & Photos | NSN 9540-00-434-1759
Demand History | NSN 9540-00-434-1759
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 9540-00-434-1759 | 2023-11-313 | 12 | US |
| 9540-00-434-1759 | 2021-05-132 | 4 | United States |
| QQA20011 | 2020-01-03 | 1 | US |
| QQA20011 | 2009-10-287 | 14 | FX |
Cross Reference | NSN 9540-00-434-1759
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 16334 | 27610 | INTERNATIONAL LIGHT METALS CORP SUB OF MARTIN MARIETTA CORP |
| AMS-QQA200-11 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| LS3959 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| PA17308 | 06012 | TRANSTAR METALS CORP |
| QQA200-11 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 9540-00-434-1759
Technical Data | NSN 9540-00-434-1759
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY, QQ-A-200/11 |
| FABRICATION METHOD | EXTRUDED |
| HEAT TREATMENT | T-6 SOLUTION HEAT TREATED |
| LENGTH | 10.000 FEET MINIMUM AND 12.000 FEET MAXIMUM |
| BASIC SHAPE STYLE | J4 T SHAPE |
| OVERALL HEIGHT | 2.500 INCHES NOMINAL |
| LEFT SIDE TOP FLANGE THICKNESS | 0.090 INCHES NOMINAL |
| RIGHT SIDE TOP FLANGE THICKNESS | 0.090 INCHES NOMINAL |
| LEG THICKNESS | 0.090 INCHES NOMINAL |
| LEFT SIDE TOP FLANGE DISTANCE TO CENTER OF BOTH FLANGES | 0.845 INCHES NOMINAL |
| RIGHT SIDE TOP FLANGE DISTANCE TO CENTER OF BOTH FLANGES | 0.845 INCHES NOMINAL |
| FILLET RADIUS WHERE TOP LEFT FLANGE JOINS WEB FLANGE/LEG | 0.094 INCHES NOMINAL |
| FILLET RADIUS WHERE TOP RIGHT FLANGE JOINS WEB FLANGE/LEG | 0.094 INCHES NOMINAL |
| TOP FLANGE WIDTH | 1.690 INCHES NOMINAL |
| LEFT TOP INSIDE ANGLE | 86.1833 DEGREES NOMINAL |
| RIGHT TOP INSIDE ANGLE | 93.8167 DEGREES NOMINAL |
| FIRST TIP STYLE | 7 SQUARE WITH INNER AND OUTER CORNER RADII |
| FIRST TIP INNER RADIUS | 0.032 INCHES NOMINAL |
| FIRST TIP OUTER RADIUS | 0.032 INCHES NOMINAL |
| SECOND TIP RELATIONSHIP TO FIRST TIP | IDENTICAL |
| THIRD TIP RELATIONSHIP TO PRECEDING TIPS | IDENTICAL W/FIRST TIP |
| WEIGHT PER UNIT MEASURE | 0.446 POUNDS PER LINEAR FOOT |
| NONDEFINITIVE SPEC/STD DATA | T6 TEMPER |
Restrictions/Controls & Freight Information | NSN 9540-00-434-1759
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
