NSN 9540-00-402-0369 AMSQQA20011, AMS-QQA200-11, QQA20011
Product Details | STRUCTURAL ANGLE
9540-00-402-0369 A structural shape fabricated from a ferrous or nonferrous material and resembling the letter L in cross-sectional form. The edges may have a bulb, be rounded, and the inside corner may have a fillet.20295200017Structural Shapes95400040Structural Shapes, Nonferrous Base Metal
Part Alternates: AMSQQA20011, AMS-QQA200-11, QQA20011, QQA200-11, 1M2618, 42542, 9540-00-402-0369, 00-402-0369, 9540004020369, 004020369
Metal Bars, Sheets, and Shapes | Structural Shapes, Nonferrous Base Metal
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 95 | 08 APR 1970 | 00-402-0369 | 37017 ( ANGLE, STRUCTURAL ) |

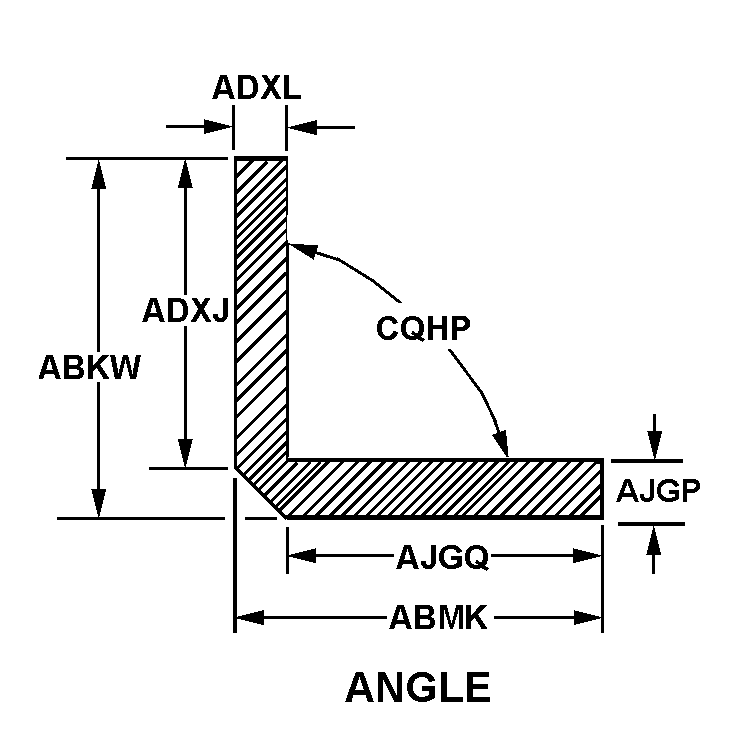

Drawings & Photos | NSN 9540-00-402-0369
Demand History | NSN 9540-00-402-0369
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| QQA20011 | 2020-01-03 | 1 | US |
| QQA20011 | 2009-10-287 | 14 | FX |
Cross Reference | NSN 9540-00-402-0369
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 9540-00-402-0369
Technical Data | NSN 9540-00-402-0369
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY, QQ-A-200/11 |
| FABRICATION METHOD | EXTRUDED |
| HEAT TREATMENT | O-ANNEALED |
| LENGTH | 10.000 FEET MINIMUM AND 12.000 FEET MAXIMUM |
| BASIC SHAPE STYLE | E3 ANGLE |
| OVERALL HEIGHT | 1.370 INCHES NOMINAL |
| OVERALL WIDTH | 5.090 INCHES NOMINAL |
| LEFT SIDE FLANGE HEIGHT | 0.955 INCHES NOMINAL |
| LEFT SIDE FLANGE THICKNESS | 0.143 INCHES NOMINAL |
| BASE FLANGE THICKNESS | 0.290 INCHES NOMINAL |
| BASE FLANGE WIDTH | 5.045 INCHES NOMINAL |
| LEFT INSIDE ANGLE | 95.0 DEGREES NOMINAL |
| FIRST TIP STYLE | 1 SQUARE END |
| SECOND TIP RELATIONSHIP TO FIRST TIP | IDENTICAL |
| WEIGHT PER UNIT MEASURE | 1.970 POUNDS PER LINEAR FOOT |
| NONDEFINITIVE SPEC/STD DATA | 0 TEMPER |
Restrictions/Controls & Freight Information | NSN 9540-00-402-0369
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013140 | ALUMINUM ANGLES |
| Less than car load rating | S | 60 |
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | R | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
