NSN 9540-00-288-0463 AMS-QQ-A-200/3, AMSQQA2003, E761101
Product Details | STRUCTURAL BEAM
9540-00-288-0463 A structural shape fabricated from a ferrous or nonferrous material and resembles the following cross-sectional forms: For the letter H, both flanges of the H section are equal or longer than the width measured along the axis of the web; for the letter I, a 16 2/3 percent slope on the inside face of the ferrous type flange, either one or both of the nonferrous type flanges are shorter than the length measured along the axis of the web; for the letters T and Z, on nonferrous type, the web is usually at right angles to the flanges. Letter H section may have a maximum of 5 percent slope on the inside face of the flanges.20295200017Structural Shapes95400040Structural Shapes, Nonferrous Base Metal
Part Alternates: AMS-QQ-A-200/3, AMSQQA2003, E761101, OT981044, OT98104-4, PA10799, QQ-A-200/3, QQA2003, 31332, 6013074, 60-13074, 6221, 9540-00-288-0463, 00-288-0463, 9540002880463, 002880463
Metal Bars, Sheets, and Shapes | Structural Shapes, Nonferrous Base Metal
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 95 | 01 JAN 1963 | 00-288-0463 | 37018 ( BEAM, STRUCTURAL ) |
Drawings & Photos | NSN 9540-00-288-0463
Demand History | NSN 9540-00-288-0463
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AMSQQA2003 | 2015-05-19 | 12 | US |
| 6221 | 2010-09-08 | 1 | United States |
| QQA2003 | 2009-11-19 | 1 | US |
Cross Reference | NSN 9540-00-288-0463
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 31332 | 01634 | ALUMINUM CO OF AMERICA |
| 60-13074 | 29321 | TRANSTAR METALS CORP |
| 6221 | 77783 | ALCOA/REYNOLDS METALS COMPANY |
| AMS-QQ-A-200/3 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| E761101 | 0WLU1 | GENERAL DYNAMICS CORP CONVAIR DIV |
| E761101 | 14170 | HUGHES MISSILE SYSTEMS CO SAN DIEGO |
| E761101 | 7B709 | TRACOR FLIGHT SYSTEMS INC SUB OF TRACOR INC |
| OT98104-4 | 0SNG6 | ON-TYME METALS |
| PA10799 | 06012 | TRANSTAR METALS CORP |
| QQ-A-200/3 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 9540-00-288-0463
Related Products | NSN 9540-00-288-0463
Technical Data | NSN 9540-00-288-0463
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY, AMS-QQ-A-200/3, ALLOY 2024 |
| FABRICATION METHOD | EXTRUDED |
| HEAT TREATMENT | T-3511 SOLUTION HEAT TREATED |
| LENGTH | 10.000 FEET MINIMUM AND 12.000 FEET MAXIMUM |
| BASIC SHAPE STYLE | J4 T SHAPE |
| OVERALL HEIGHT | 1.000 INCHES NOMINAL |
| LEFT SIDE TOP FLANGE THICKNESS | 0.250 INCHES NOMINAL |
| RIGHT SIDE TOP FLANGE THICKNESS | 0.250 INCHES NOMINAL |
| LEG THICKNESS | 0.062 INCHES NOMINAL |
| LEFT SIDE TOP FLANGE DISTANCE TO CENTER OF BOTH FLANGES | 0.657 INCHES NOMINAL |
| RIGHT SIDE TOP FLANGE DISTANCE TO CENTER OF BOTH FLANGES | 0.657 INCHES NOMINAL |
| FILLET RADIUS WHERE TOP LEFT FLANGE JOINS WEB FLANGE/LEG | 0.062 INCHES NOMINAL |
| FILLET RADIUS WHERE TOP RIGHT FLANGE JOINS WEB FLANGE/LEG | 0.062 INCHES NOMINAL |
| TOP FLANGE WIDTH | 1.314 INCHES NOMINAL |
| LEFT TOP INSIDE ANGLE | 90.0 DEGREES NOMINAL |
| RIGHT TOP INSIDE ANGLE | 90.0 DEGREES NOMINAL |
| FIRST TIP STYLE | 3 LEFT QUARTER RADIUS |
| FIRST TIP RADIUS | 0.125 INCHES NOMINAL |
| SECOND TIP RELATIONSHIP TO FIRST TIP | NOT IDENTICAL |
| SECOND TIP STYLE | 2 RIGHT QUARTER RADIUS |
| SECOND TIP RADIUS | 0.125 INCHES NOMINAL |
| THIRD TIP RELATIONSHIP TO PRECEDING TIPS | NOT IDENTICAL |

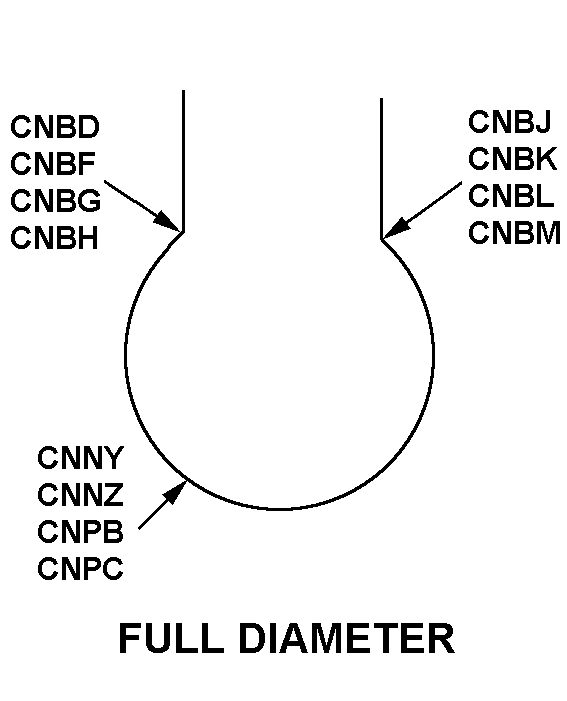

| THIRD TIP STYLE | 12 FULL DIAMETER |
| THIRD TIP INNER RADIUS | 0.016 INCHES NOMINAL |
| THIRD TIP OUTER RADIUS | 0.016 INCHES NOMINAL |
| THIRD TIP DIAMETER | 0.250 INCHES NOMINAL |
| WEIGHT PER UNIT MEASURE | 0.220 POUNDS PER LINEAR FOOT |
| NONDEFINITIVE SPEC/STD DATA | ALLOY 2024 AND TEMPER T3511 |
Restrictions/Controls & Freight Information | NSN 9540-00-288-0463
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 104420 | BEAMS NOI I/S |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 9540-00-288-0463
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 FT : Foot |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 FT : Foot |
