NSN 9540-00-251-2593 ASTM B221, ASTMB221, DIE23009
Product Details | STRUCTURAL ANGLE
9540-00-251-2593 A structural shape fabricated from a ferrous or nonferrous material and resembling the letter L in cross-sectional form. The edges may have a bulb, be rounded, and the inside corner may have a fillet.20295200017Structural Shapes95400040Structural Shapes, Nonferrous Base Metal
Part Alternates: ASTM B221, ASTMB221, DIE23009, LS3518, QQ-A-200/3, QQA2003, 16010356, 160-10356, 21126, 2-1126, 316472, 53159, 9540-00-251-2593, 00-251-2593, 9540002512593, 002512593
Metal Bars, Sheets, and Shapes | Structural Shapes, Nonferrous Base Metal
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 95 | 01 JAN 1963 | 00-251-2593 | 37017 ( ANGLE, STRUCTURAL ) |
Drawings & Photos | NSN 9540-00-251-2593
Demand History | NSN 9540-00-251-2593
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 21126 | 2023-03-69 | 20 | Croatia |
| QQA2003 | 2009-11-323 | 1 | US |
Cross Reference | NSN 9540-00-251-2593
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 160-10356 | 29332 | EL CHEM BATTERY CORP |
| 2-1126 | 38597 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 316472 | 01634 | ALUMINUM CO OF AMERICA |
| 53159 | 27610 | INTERNATIONAL LIGHT METALS CORP SUB OF MARTIN MARIETTA CORP |
| ASTM B221 | 81346 | AMERICAN SOCIETY FOR TESTING AND MATERIALS |
| DIE23009 | 01634 | ALUMINUM CO OF AMERICA |
| LS3518 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| QQ-A-200/3 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 9540-00-251-2593
Technical Data | NSN 9540-00-251-2593
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY, ASTM B221, ALLOY 2024 |
| FABRICATION METHOD | EXTRUDED |
| HEAT TREATMENT | T-3511 SOLUTION HEAT TREATED |
| LENGTH | 10.000 FEET MINIMUM AND 12.000 FEET MAXIMUM |
| BASIC SHAPE STYLE | E2 ANGLE |
| OVERALL HEIGHT | 0.750 INCHES NOMINAL |
| OVERALL WIDTH | 1.000 INCHES NOMINAL |
| LEFT SIDE FLANGE THICKNESS | 0.050 INCHES NOMINAL |
| FILLET RADIUS WHERE LEFT FLANGE JOINS BASE FLANGE | 0.125 INCHES NOMINAL |
| BASE FLANGE THICKNESS | 0.050 INCHES NOMINAL |
| LEFT INSIDE ANGLE | 90.0 DEGREES NOMINAL |
| FIRST TIP STYLE | 1 SQUARE END |
| SECOND TIP RELATIONSHIP TO FIRST TIP | NOT IDENTICAL |

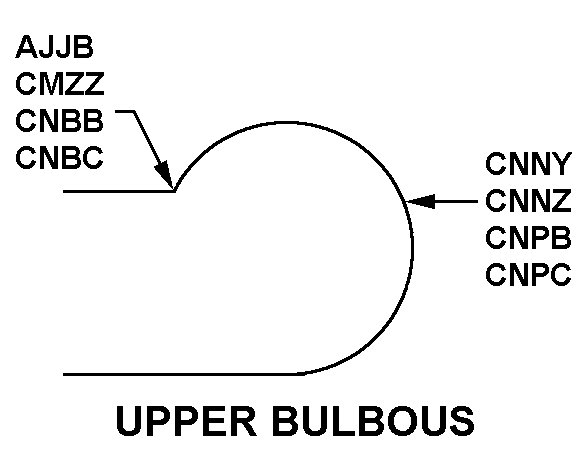

| SECOND TIP STYLE | 11 UPPER |
| SECOND TIP RADIUS | 0.093 INCHES NOMINAL |
| SECOND TIP DIAMETER | 0.187 INCHES NOMINAL |
| WEIGHT PER UNIT MEASURE | 0.130 POUNDS PER LINEAR FOOT |
| NONDEFINITIVE SPEC/STD DATA | ALLOY 2024, TEMPER T3511 |
Restrictions/Controls & Freight Information | NSN 9540-00-251-2593
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013140 | ALUMINUM ANGLES |
| Less than car load rating | ||
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | R | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
