9535-01-454-7613 A ferrous or nonferrous product with cross-sectional dimensions limited to those established in Appendix C, FIIG A131. Includes corrugated and perforated items. For items 0.005 inch or .125mm thick and less. see FOIL, METAL. For silver items see SILVER SHEET.20295150035Plate, Sheet, Strip, Foil, and Leaf95350052Plate, Sheet, Strip, and Foil; Nonferrous Base Metal

Part Alternates: AMS-QQ-A-250/2 , AMSQQA2502, 3003H140064X36X120, 9232T191, 9535-01-454-7613, 01-454-7613, 9535014547613, 014547613

Metal Bars, Sheets, and Shapes | Plate, Sheet, Strip, and Foil; Nonferrous Base Metal

Supply Group (FSG) NSN Assign. NIIN
95 13 APR 1998 01-454-7613

Drawings & Photos | NSN 9535-01-454-7613


Cross Reference | NSN 9535-01-454-7613

Part Number Cage Code Manufacturer
3003-H14,0.064X36X120 14153 DEFENSE LOGISTICS AGENCY DBA DEFENSE SUPPLY CENTER
9232T191 39428 MCMASTER-CARR SUPPLY COMPANY
AMS-QQ-A-250/2 81343 SOCIETY OF AUTOMOTIVE ENGINEERS INC

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 9535-01-454-7613

Technical Data | NSN 9535-01-454-7613

Characteristic Specifications
MATERIAL ALUMINUM ALLOY, 3003
FABRICATION METHOD ANY ACCEPTABLE
HEAT TREATMENT H-14 STRAIN HARDENED, 1/2 HARD
MINIMUM TENSILE STRENGTH NOT RATED
MINIMUM YIELD STRENGTH NOT RATED
LENGTH 10.000 FEET NOMINAL

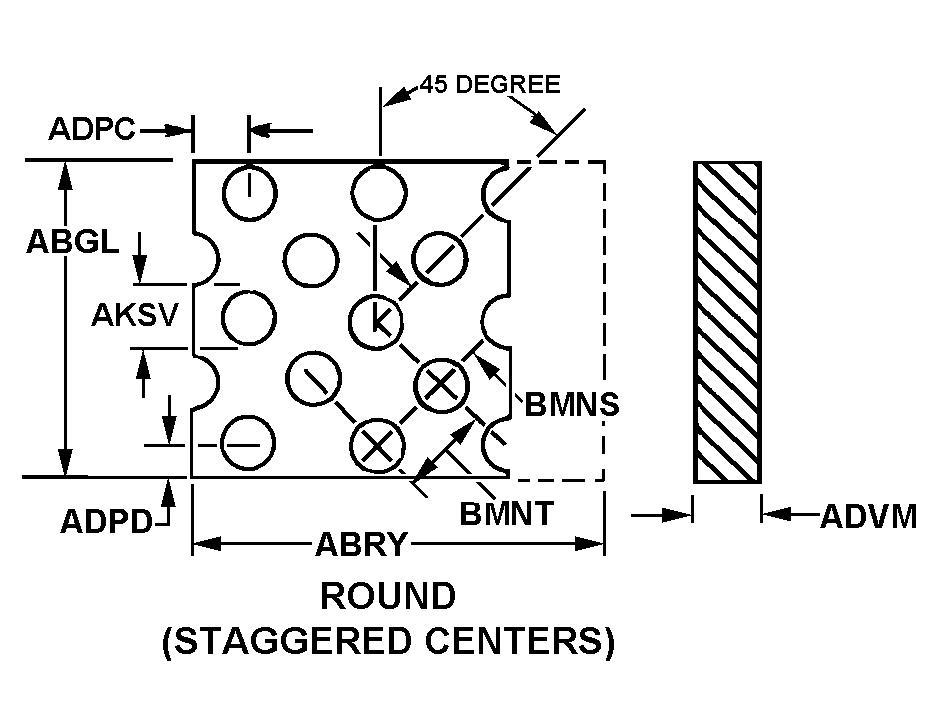

BASIC SHAPE STYLE A2 ROUND
WIDTH 36.000 INCHES NOMINAL
DISTANCE FROM FIRST HOLE CENTERLINE TO END ALONG LENGTH ANY ACCEPTABLE
DISTANCE FROM FIRST HOLE CENTERLINE TO END ALONG WIDTH ANY ACCEPTABLE
CROSS-SECTIONAL THICKNESS 0.0640 INCHES NOMINAL
PERFORATION DIAMETER 0.1875 INCHES NOMINAL
PERFORATION CENTER TO CENTER DISTANCE ALONG UPWARD SLOPE 0.250 INCHES NOMINAL
PERFORATION CENTER TO CENTER DISTANCE ALONG DOWNWARD SLOPE 0.250 INCHES NOMINAL
NONDEFINITIVE SPEC/STD DATA ALLOY 3003 AND TEMPER H14
