NSN 9535-00-835-1131 AMSQQA2505, AMS-QQA250-5, QQA2505
Product Details | METAL SHEET
9535-00-835-1131 A ferrous or nonferrous product with cross-sectional dimensions limited to those established in Appendix C, FIIG A131. Includes corrugated and perforated items. For items 0.005 inch or .125mm thick and less. see FOIL, METAL. For silver items see SILVER SHEET.20295150035Plate, Sheet, Strip, Foil, and Leaf95350052Plate, Sheet, Strip, and Foil; Nonferrous Base Metal
Part Alternates: AMSQQA2505, AMS-QQA250-5, QQA2505, QQA250-5, 9535-00-835-1131, 00-835-1131, 9535008351131, 008351131
Metal Bars, Sheets, and Shapes | Plate, Sheet, Strip, and Foil; Nonferrous Base Metal
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 95 | 01 JAN 1962 | 00-835-1131 | 37015 ( SHEET, METAL ) |
Drawings & Photos | NSN 9535-00-835-1131
Demand History | NSN 9535-00-835-1131
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AMSQQA2505 | 2024-09-09 | 1 | us |
| QQA2505 | 2020-12-10 | 1 | US |
| QQA2505 | 2020-06-19 | 2 | KE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 9535-00-835-1131
Related Products | NSN 9535-00-835-1131
Technical Data | NSN 9535-00-835-1131
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY, QQ-A-250/5 |
| FABRICATION METHOD | ANY ACCEPTABLE |
| CLADDING THICKNESS | 0.002 INCHES BOTH SIDES |
| HEAT TREATMENT | O-ANNEALED |
| EDGE TYPE | ANY ACCEPTABLE |
| MINIMUM TENSILE STRENGTH | 30000 POUNDS PER SQUARE INCH |
| MINIMUM YIELD STRENGTH | NOT RATED |
| LENGTH | 3.000 FEET NOMINAL |

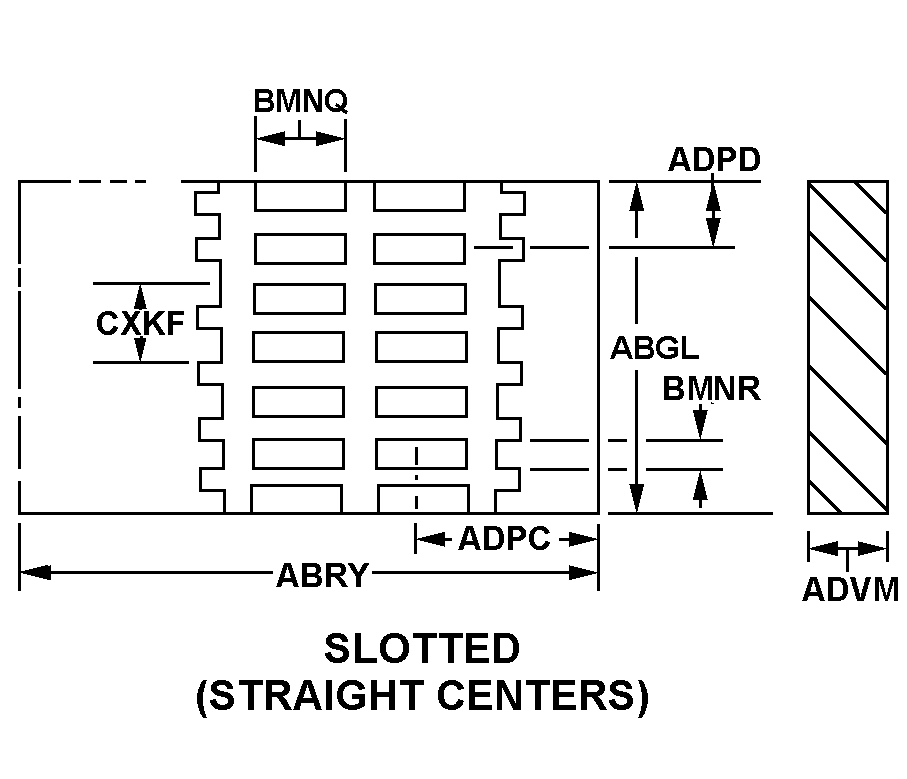

| BASIC SHAPE STYLE | A5 SLOTTED |
| WIDTH | 24.000 INCHES NOMINAL |
| CROSS-SECTIONAL THICKNESS | 0.0500 INCHES NOMINAL |
| PERFORATION ELONGATION LENGTH | 0.453 INCHES NOMINAL |
| PERFORATION ELONGATION WIDTH | 0.453 INCHES NOMINAL |
| WEIGHT PER UNIT MEASURE | 0.778 POUNDS PER PIECE |
| SPECIAL FEATURES | 0.500 IN. PERFORATION CENTER TO CENTER DISTANCE ALONG VERTICAL AXIS |
| NONDEFINITIVE SPEC/STD DATA | ALLOY 2024 AND CONDITION ANNEALED AND STAGGERED CENTERS |
Restrictions/Controls & Freight Information | NSN 9535-00-835-1131
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 030740 | BBC PLATE SHEET R STRIP NOI |
| Less than car load rating | ||
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 9535-00-835-1131
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
