9520-01-532-1479 A structural shape fabricated from a ferrous or nonferrous material and resembling the letter L in cross-sectional form. The edges may have a bulb, be rounded, and the inside corner may have a fillet.20295200017Structural Shapes95400040Structural Shapes, Nonferrous Base Metal

Part Alternates: LS37640, 9520-01-532-1479, 01-532-1479, 9520015321479, 015321479

Metal Bars, Sheets, and Shapes | Structural Shapes

Supply Group (FSG) NSN Assign. NIIN
95 29 JUL 2005 01-532-1479

Drawings & Photos | NSN 9520-01-532-1479


Cross Reference | NSN 9520-01-532-1479

Part Number Cage Code Manufacturer
LS37640 98897 LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 9520-01-532-1479

Technical Data | NSN 9520-01-532-1479

Characteristic Specifications

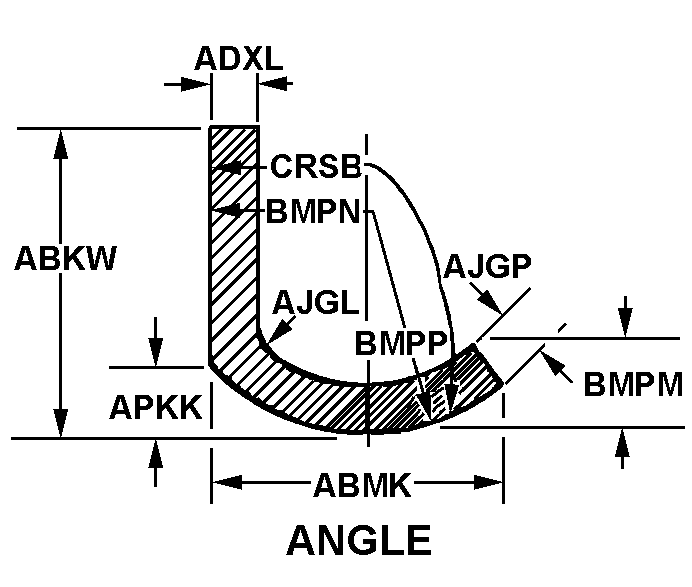

BASIC SHAPE STYLE E7 ANGLE
OVERALL HEIGHT 0.046 INCHES MINIMUM AND 0.052 INCHES MAXIMUM
OVERALL WIDTH 0.130 INCHES MINIMUM AND 0.190 INCHES MAXIMUM
LEFT SIDE FLANGE THICKNESS 0.012 INCHES NOMINAL
TOE OVERALL HEIGHT 0.050 INCHES MINIMUM AND 0.110 INCHES MAXIMUM
III END ITEM IDENTIFICATION C-5 AIRCRAFT
III PART NAME ASSIGNED BY CONTROLLING AGENCY NOMENCLATURE "STEEL METAL"
