NSN 9520-01-496-3212 11660996, 01-496-3212, 014963212
Product Details | METAL FLOOR PLATE
9520-01-496-3212 A ferrous or nonferrous product the surface of which is provided with a recurring pattern of embossments or other configurations for the purpose of imparting nonskid qualities to the surface. Excludes PLATE, METAL.20295150035Plate, Sheet, Strip, Foil, and Leaf95350052Plate, Sheet, Strip, and Foil; Nonferrous Base Metal
Part Alternates: 11660996, 9520-01-496-3212, 01-496-3212, 9520014963212, 014963212
Metal Bars, Sheets, and Shapes | Structural Shapes
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 95 | 10 APR 2002 | 01-496-3212 | 37012 ( PLATE, FLOOR, METAL ) |
Drawings & Photos | NSN 9520-01-496-3212
Cross Reference | NSN 9520-01-496-3212
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11660996 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 9520-01-496-3212
Technical Data | NSN 9520-01-496-3212
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY, QQ-A-367, ALLOY 5083 |
| FABRICATION METHOD | ANY ACCEPTABLE |
| MINIMUM TENSILE STRENGTH | NOT RATED |
| MINIMUM YIELD STRENGTH | NOT RATED |
| LENGTH | 43.750 INCHES NOMINAL |

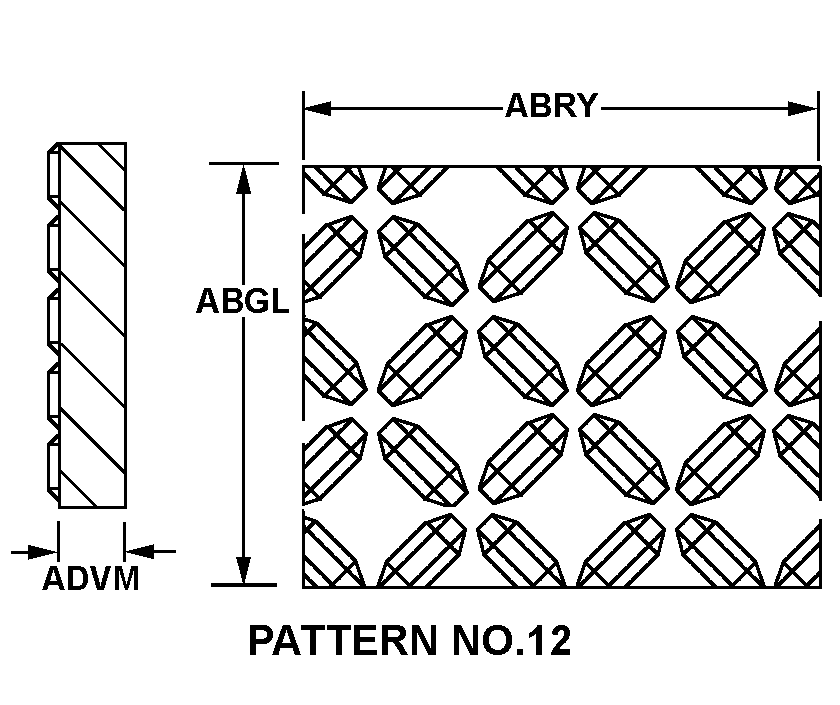

| BASIC SHAPE STYLE | B4 PATTERN NO. 12 |
| WIDTH | 15.060 INCHES NOMINAL |
| CROSS-SECTIONAL THICKNESS | 0.2500 INCHES NOMINAL |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | FLOOR PLATE ASSEMBLY, DRIVERS COMPARTMENT |
Restrictions/Controls & Freight Information | NSN 9520-01-496-3212
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
