Product Details | STRUCTURAL BEAM
9520-01-435-3056 A structural shape fabricated from a ferrous or nonferrous material and resembles the following cross-sectional forms: For the letter H, both flanges of the H section are equal or longer than the width measured along the axis of the web; for the letter I, a 16 2/3 percent slope on the inside face of the ferrous type flange, either one or both of the nonferrous type flanges are shorter than the length measured along the axis of the web; for the letters T and Z, on nonferrous type, the web is usually at right angles to the flanges. Letter H section may have a maximum of 5 percent slope on the inside face of the flanges.20295200017Structural Shapes95400040Structural Shapes, Nonferrous Base Metal
Part Alternates: 6569553, 9520-01-435-3056, 01-435-3056, 9520014353056, 014353056
Metal Bars, Sheets, and Shapes | Structural Shapes
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 95 | 20 AUG 1996 | 01-435-3056 | 37018 ( BEAM, STRUCTURAL ) |
Drawings & Photos | NSN 9520-01-435-3056
Cross Reference | NSN 9520-01-435-3056
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6569553 | 53711 | NAVAL SEA SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 9520-01-435-3056
Technical Data | NSN 9520-01-435-3056
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM |
| SURFACE TREATMENT | ANODIZED |
| LENGTH | 2650.0 MILLIMETERS NOMINAL |

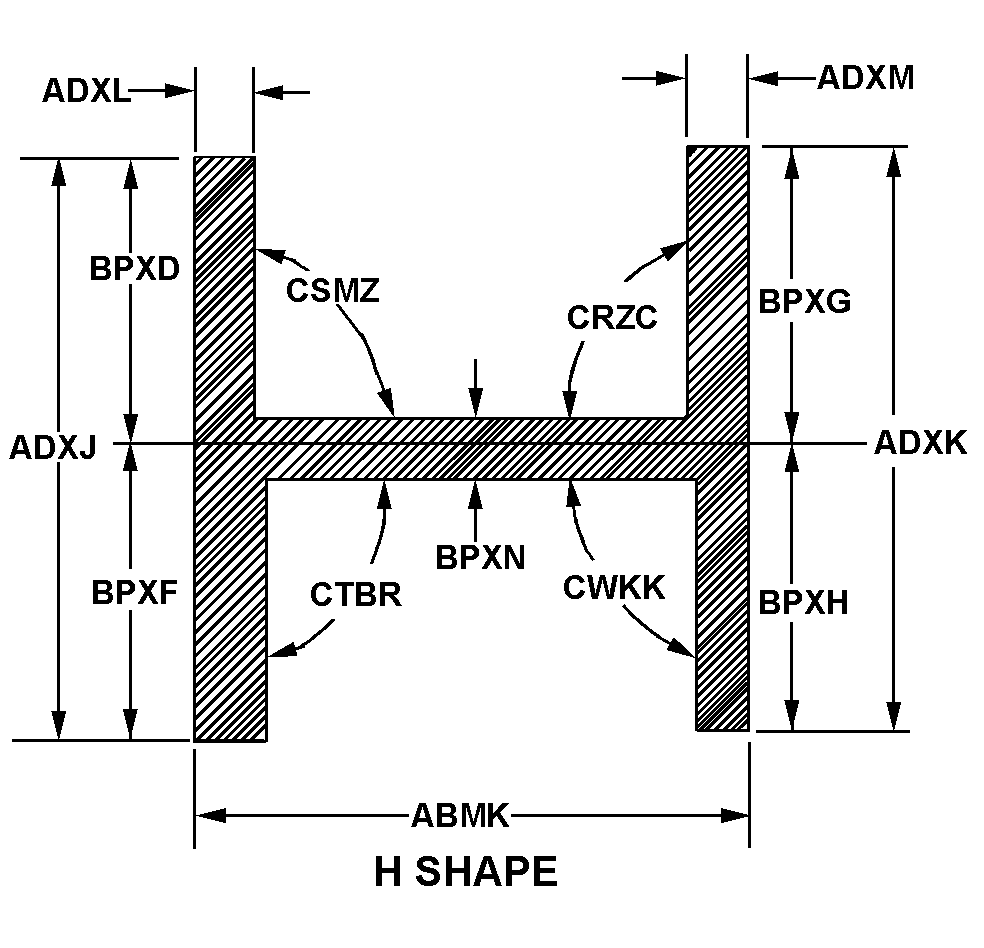

| BASIC SHAPE STYLE | G1 H SHAPE |
| OVERALL WIDTH | 100.0 MILLIMETERS NOMINAL |
| FIRST TIP STYLE | 1 SQUARE END |
| FIRST TIP FLANGE WIDTH | 10.0 MILLIMETERS NOMINAL |
| SECOND TIP RELATIONSHIP TO FIRST TIP | IDENTICAL |
| THIRD TIP RELATIONSHIP TO PRECEDING TIPS | IDENTICAL W/FIRST TIP |
| FOURTH TIP RELATIONSHIP TO PRECEDING TIPS | IDENTICAL W/FIRST TIP |
| SPECIAL FEATURES | TWO LAYERS OF GREY POLYURETHANE,ALIPHATIC,WEATHER RESISTANT COATING; IDENTIFY WITH LETTER STAMPS AT PLACE INDICATED TO SHOW CAGE CODE 53711 AND DRAWING NUMBER 6569553 |
