Product Details | METAL BAR

9510-00-089-6352 A metallic product of ferrous or nonferrous material. It is produced as a solid section in straight lengths or short barlike forms of cored or solid cross section. It may be round, square, hexagon, oval, half-oval, or half-round shape whose width, diameter, or distance between parallel faces is 3/8 inch or 10.0mm or greater. Rectangular shape cross-sectional dimensions are limited to those established in Appendix C, FIIG A131. It is round to a maximum diameter of 24 inches or 610.0mm. For a rectangular shape less than 3/32 inch or 2.5mm thickness, see WIRE (1), NONELECTRICAL.20295100013Bars and Rods95300036Bars and Rods, Nonferrous Base Metal

Part Alternates: QQS741, 9510-00-089-6352, 00-089-6352, 9510000896352, 000896352

Metal Bars, Sheets, and Shapes | Bars and Rods

Supply Group (FSG) NSN Assign. NIIN
95 01 JAN 1963 00-089-6352

Drawings & Photos | NSN 9510-00-089-6352


Demand History | NSN 9510-00-089-6352

Part Number Request Date QTY Origin
QQS741 2018-02-39 100 Saudi Arabia

Cross Reference | NSN 9510-00-089-6352

Part Number Cage Code Manufacturer
QQS741 81348 FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 9510-00-089-6352

Technical Data | NSN 9510-00-089-6352

Characteristic Specifications
MATERIAL STEEL, ASTM A36, UNS K02600
FABRICATION METHOD HOT ROLLED
LENGTH 20.000 FEET NOMINAL

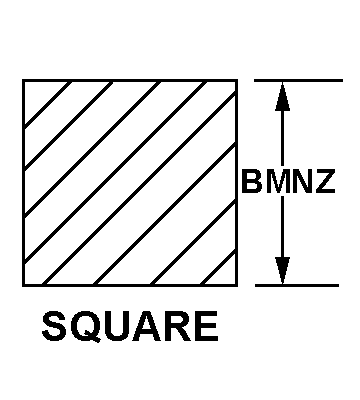

BASIC SHAPE STYLE D10 SQUARE
CROSS-SECTIONAL WIDTH ACROSS FLATS 3.000 INCHES NOMINAL
WEIGHT PER UNIT MEASURE 30.600 POUNDS PER LINEAR FOOT
MANUFACTURERS CODE 81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE QQS741

Restrictions/Controls & Freight Information | NSN 9510-00-089-6352

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
No Freight Information
