NSN 9340-01-536-4690 KS16067-2A GLASS, KS160672AGLASS, 01-536-4690
Product Details | OBSERVATION WINDOW
9340-01-536-4690 A transparent item of a predetermined size that permits unobstructed and undistorted view of a desired area. It may include a frame, have reference markings, grid lines and may be heat strengthened and/or tinted. It is generally used where safety, security, and/or the restriction of foreign matter are required, such as the visual examination of the inside of pressurized tanks, liquid sights, controlled liquid flow, and inspection of equipment enclosed in a housing. See WINDOW (as modified); SCALE, CATHODE RAY TUBE; SCALE, PLOTTING; WINDOW, METAL; WINDOW, WOOD; and WINDOW PANEL, AIRCRAFT.20293300029Plastics Fabricated Materials93400026Glass Fabricated Materials
Part Alternates: KS16067-2A GLASS, KS160672AGLASS, 9340-01-536-4690, 01-536-4690, 9340015364690, 015364690
Nonmetallic Fabricated Materials | Glass Fabricated Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 93 | 05 JAN 2006 | 01-536-4690 | 16880 ( WINDOW, OBSERVATION ) |
Drawings & Photos | NSN 9340-01-536-4690
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 9340-01-536-4690
Technical Data | NSN 9340-01-536-4690
| Characteristic | Specifications |
|---|---|

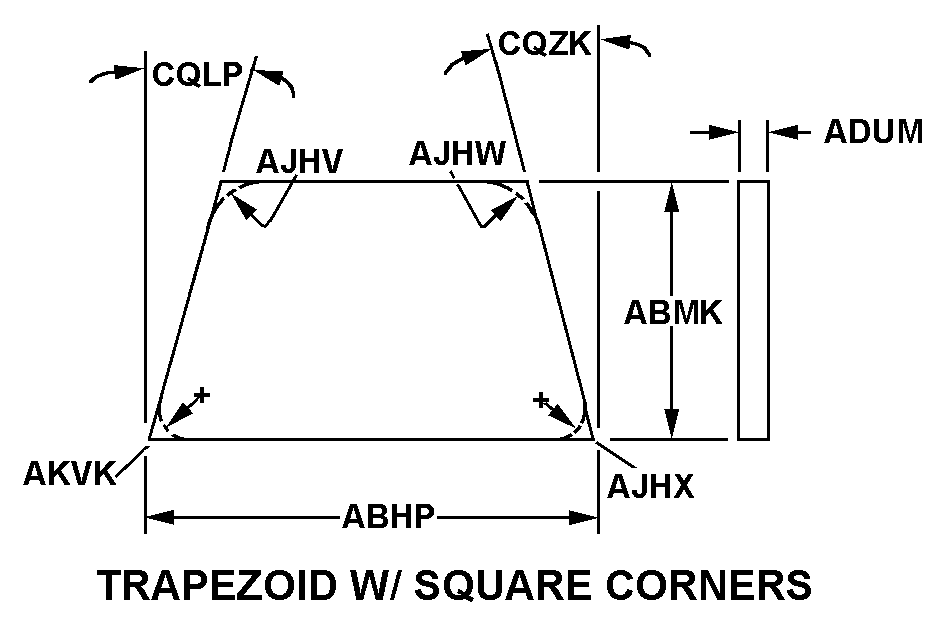

| STYLE DESIGNATOR | 8A TRAPEZOID W/SQUARE CORNERS |
| OVERALL LENGTH | 34.250 INCHES NOMINAL |
| OVERALL WIDTH | 18.500 INCHES NOMINAL |
| MATERIAL | GLASS LAMINATE |
| MATERIAL TRANSPARENCY | CLEAR |
| TEMP AT MAXIMUM OPERATING PRESSURE | ANY ACCEPTABLE |
| MAXIMUM OPERATING PRESSURE | ANY ACCEPTABLE |
| HARDNESS RATING | ANY ACCEPTABLE |
| MINIMUM TENSILE STRENGTH | ANY ACCEPTABLE |
| SPECIAL FEATURES | ELECTRICALLY HEATED; LENGTH OF TOP OF WINDOW IS 24.500 IN; SHAPE IS TRAPEZOIDAL WITH EXCEPTION THAT FROM BOTTOM EDGE ALONG BOTH SIDES, THEIR IS A 2-INCH HIGH EDGE WHICH FORMS 90-DEGREE BOTTOM EDGE CORNERS, MAKING THIS A SIX-SIDED FIGURE |
| III END ITEM IDENTIFICATION | CV AIRCRAFT CARRIER |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | WINDOW,NONICING ELEC CONDUCTING |
Restrictions/Controls & Freight Information | NSN 9340-01-536-4690
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 035315 | SCREEN DOORS OR WINDOW SCREENS,NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 704 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 9340-01-536-4690
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
