NSN 9340-01-375-9267 7102281, 710228-1, 01-375-9267
Product Details | LAMINATED GLASS
9340-01-375-9267 A transparent item consisting of two or more pieces of glass, with straight parallel surfaces bonded together by an interlay of transparent plastic to prevent fragmentation or splintering if broken. It may be heat strengthened and/or tinted and is generally used where safety glazing characteristics are required, such as airplane windows, explosive hazards and furniture shielding.
Part Alternates: 7102281, 710228-1, 9340-01-375-9267, 01-375-9267, 9340013759267, 013759267
Nonmetallic Fabricated Materials | Glass Fabricated Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 93 | 24 MAY 1993 | 01-375-9267 | 04006 ( GLASS, LAMINATED ) |
Drawings & Photos | NSN 9340-01-375-9267
Demand History | NSN 9340-01-375-9267
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 710228-1 | 2023-05-137 | 9 | DIBBS |
| 710228-1 | 2022-08-236 | 9 | DIBBS |
| 710228-1 | 2021-06-165 | 14 | DIBBS |
| 710228-1 | 2021-06-153 | 14 | DIBBS |
| 710228-1 | 2020-09-258 | 14 | DIBBS |
| 710228-1 | 2020-09-247 | 14 | DIBBS |
| 710228-1 | 2020-09-247 | 14 | DIBBS |
| 710228-1 | 2020-08-236 | 14 | DIBBS |
| 710228-1 | 2019-04-93 | 4 | DIBBS |
| 9340-01-375-9267 | 2017-10-274 | 2 | DIBBS |
Cross Reference | NSN 9340-01-375-9267
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 710228-1 | 99479 | BOWMAR, LLC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 9340-01-375-9267
Technical Data | NSN 9340-01-375-9267
| Characteristic | Specifications |
|---|---|

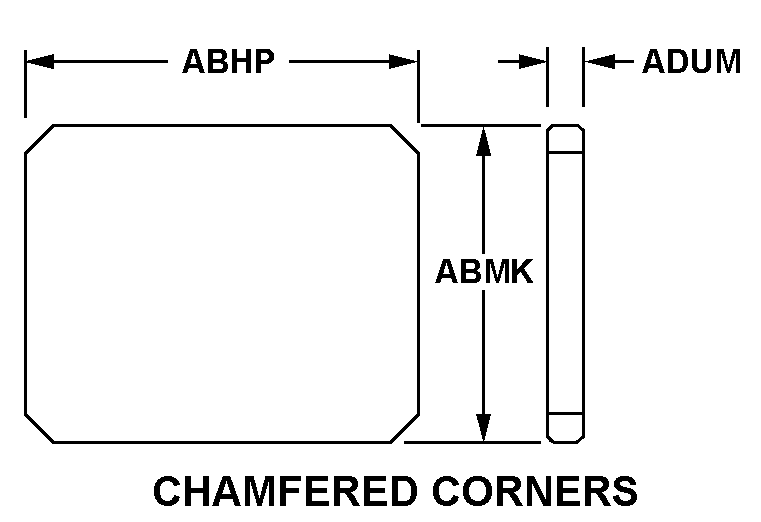

| STYLE DESIGNATOR | 3 CHAMFERED CORNERS |
| OVERALL LENGTH | 1.469 INCHES NOMINAL |
| OVERALL WIDTH | 2.531 INCHES NOMINAL |
| OVERALL THICKNESS | 0.234 INCHES MINIMUM AND 0.266 INCHES MAXIMUM |
| MATERIAL | GLASS LAMINATE |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-3787,CLASS 1,GRADE C MIL SPEC SINGLE MATERIAL RESPONSE |
| MATERIAL TRANSPARENCY | CLEAR |
| EDGE TYPE | BEVELED |
| PLY QUANTITY | 2 |
| TEMP AT MAXIMUM OPERATING PRESSURE | NOT RATED |
| MAXIMUM OPERATING PRESSURE | NOT RATED |
| HARDNESS RATING | NOT RATED |
Restrictions/Controls & Freight Information | NSN 9340-01-375-9267
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 086700 | GLASS,FLAT,NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 704 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 9340-01-375-9267
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
