NSN 9340-01-055-0213 15686601, 156866-01, 01-055-0213
Product Details | OBSERVATION WINDOW
9340-01-055-0213 A transparent item of a predetermined size that permits unobstructed and undistorted view of a desired area. It may include a frame, have reference markings, grid lines and may be heat strengthened and/or tinted. It is generally used where safety, security, and/or the restriction of foreign matter are required, such as the visual examination of the inside of pressurized tanks, liquid sights, controlled liquid flow, and inspection of equipment enclosed in a housing. See WINDOW (as modified); SCALE, CATHODE RAY TUBE; SCALE, PLOTTING; WINDOW, METAL; WINDOW, WOOD; and WINDOW PANEL, AIRCRAFT.20293300029Plastics Fabricated Materials93400026Glass Fabricated Materials
Part Alternates: 15686601, 156866-01, 9340-01-055-0213, 01-055-0213, 9340010550213, 010550213
Nonmetallic Fabricated Materials | Glass Fabricated Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 93 | 30 JAN 1978 | 01-055-0213 | 16880 ( WINDOW, OBSERVATION ) |
Drawings & Photos | NSN 9340-01-055-0213
Cross Reference | NSN 9340-01-055-0213
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 156866-01 | 35351 | GE AVIATION SYSTEMS LLC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 9340-01-055-0213
Technical Data | NSN 9340-01-055-0213
| Characteristic | Specifications |
|---|---|

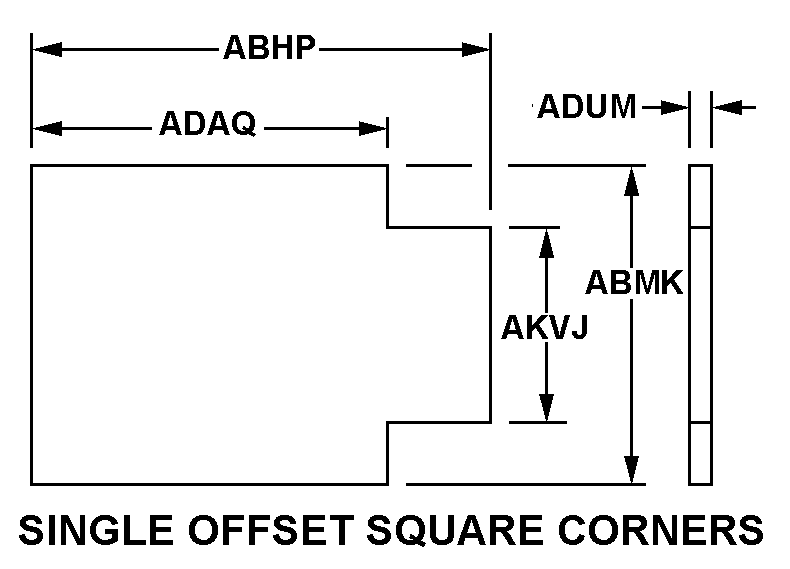

| STYLE DESIGNATOR | 10 SINGLE OFFSET SQUARE CORNERS |
| SPECIAL FEATURES | NON-GLARE SURFACE,1 SIDE ONLY |
| MANUFACTURERS CODE | 35351 |
| DESIGN CONTROL REFERENCE | 156866-01 |
Restrictions/Controls & Freight Information | NSN 9340-01-055-0213
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 035315 | SCREEN DOORS OR WINDOW SCREENS,NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 704 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 9340-01-055-0213
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
