NSN 9330-01-392-3667 700043, 70004-3, 01-392-3667
Product Details | OBSERVATION WINDOW
9330-01-392-3667 A transparent item of a predetermined size that permits unobstructed and undistorted view of a desired area. It may include a frame, have reference markings, grid lines and may be heat strengthened and/or tinted. It is generally used where safety, security, and/or the restriction of foreign matter are required, such as the visual examination of the inside of pressurized tanks, liquid sights, controlled liquid flow, and inspection of equipment enclosed in a housing. See WINDOW (as modified); SCALE, CATHODE RAY TUBE; SCALE, PLOTTING; WINDOW, METAL; WINDOW, WOOD; and WINDOW PANEL, AIRCRAFT.20293300029Plastics Fabricated Materials93400026Glass Fabricated Materials
Part Alternates: 700043, 70004-3, 9330-01-392-3667, 01-392-3667, 9330013923667, 013923667
Nonmetallic Fabricated Materials | Plastics Fabricated Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 93 | 28 JUN 1994 | 01-392-3667 | 16880 ( WINDOW, OBSERVATION ) |
Drawings & Photos | NSN 9330-01-392-3667
Demand History | NSN 9330-01-392-3667
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 9330-01-392-3667 | 2015-03-74 | 80 | DIBBS |
| 9330-01-392-3667 | 2011-12-357 | 6 | DIBBS |
| 9330-01-392-3667 | 2010-09-273 | 6 | DIBBS |
| 9330-01-392-3667 | 2009-12-364 | 5 | DIBBS |
| 9330-01-392-3667 | 2009-11-316 | 9 | DIBBS |
Cross Reference | NSN 9330-01-392-3667
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 70004-3 | 66822 | MORPAC INDUSTRIES, INC. DIV ACTUATOR |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 9330-01-392-3667
Technical Data | NSN 9330-01-392-3667
| Characteristic | Specifications |
|---|---|

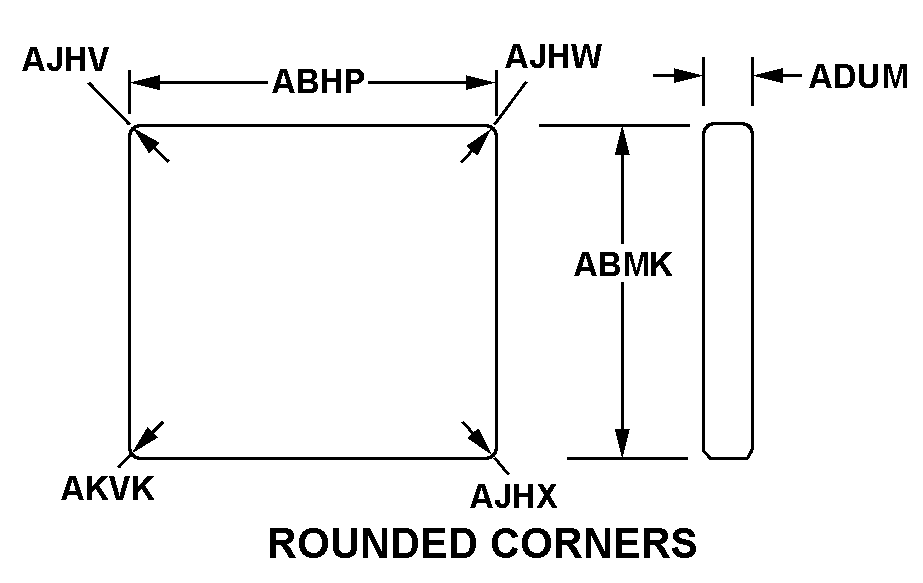

| STYLE DESIGNATOR | 2 ROUNDED CORNERS |
| OVERALL LENGTH | 6.750 INCHES NOMINAL |
| OVERALL WIDTH | 1.750 INCHES NOMINAL |
| OVERALL THICKNESS | 0.188 INCHES NOMINAL |
| FIRST CORNER RADIUS | 0.190 INCHES NOMINAL |
| SECOND CORNER RADIUS | 0.190 INCHES NOMINAL |
| THIRD CORNER RADIUS | 0.190 INCHES NOMINAL |
| FOURTH CORNER RADIUS | 0.190 INCHES NOMINAL |
| MATERIAL | PLASTIC |
| MATERIAL TRANSPARENCY | CLEAR |
| TEMP AT MAXIMUM OPERATING PRESSURE | NOT RATED |
| MAXIMUM OPERATING PRESSURE | NOT RATED |
| HARDNESS RATING | NOT RATED |
| MINIMUM TENSILE STRENGTH | NOT RATED |
| RADIATION PROTECTION RATING | NOT RATED |
Restrictions/Controls & Freight Information | NSN 9330-01-392-3667
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 157320 | PLASTIC/RUBBER ARTICLE/ETC VIZ: |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 845 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 9330-01-392-3667
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
