NSN 9330-01-209-9056 ARTUS-.010 BROWN-5X20, ARTUS010BROWN5X20, 01-209-9056
Product Details | PLASTIC STRIP
9330-01-209-9056 A cellular, solid or laminated plastic material including plastic film furnished in widths of 6 inches (152.4mm) or less. It includes plastic material cut to specific lengths or a continuous roll form. It may include fillers, reinforcements or pigments. For items which have definite rated electrical characteristics, see TAPE, INSULATION, ELECTRICAL. Excludes PLASTIC MATERIAL, CELLULAR; DRY TRANSFER SHEET.
Part Alternates: ARTUS-.010 BROWN-5X20, ARTUS010BROWN5X20, 9330-01-209-9056, 01-209-9056, 9330012099056, 012099056
Nonmetallic Fabricated Materials | Plastics Fabricated Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 93 | 05 JUN 1985 | 01-209-9056 | 18305 ( PLASTIC STRIP ) |

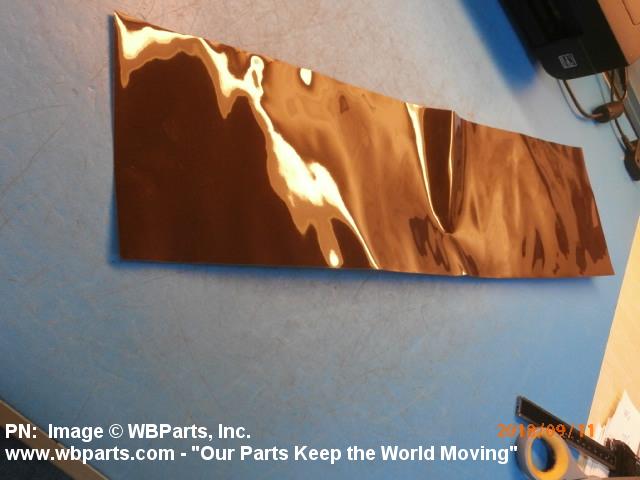

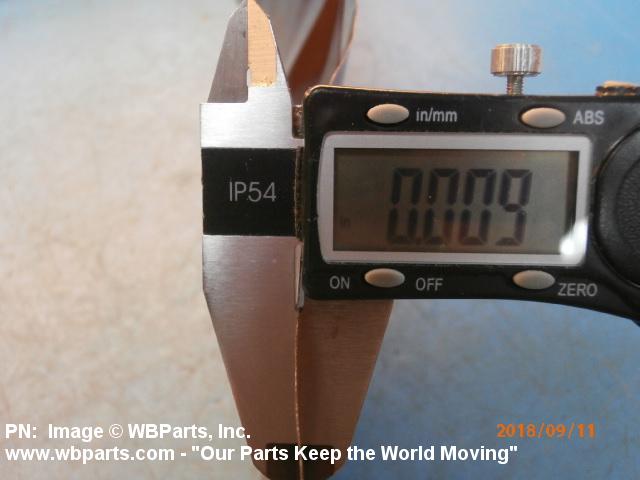

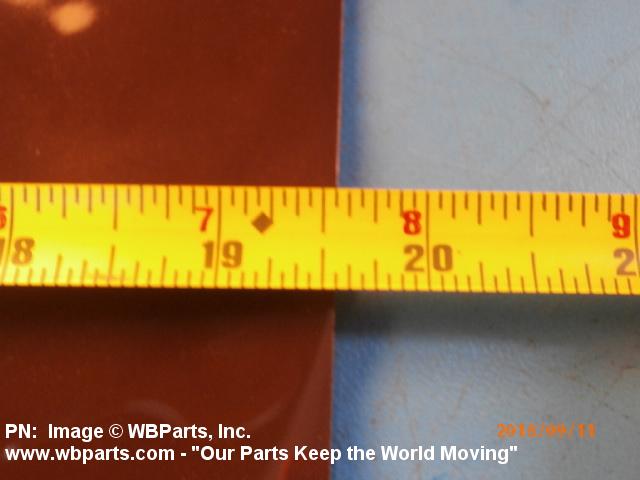

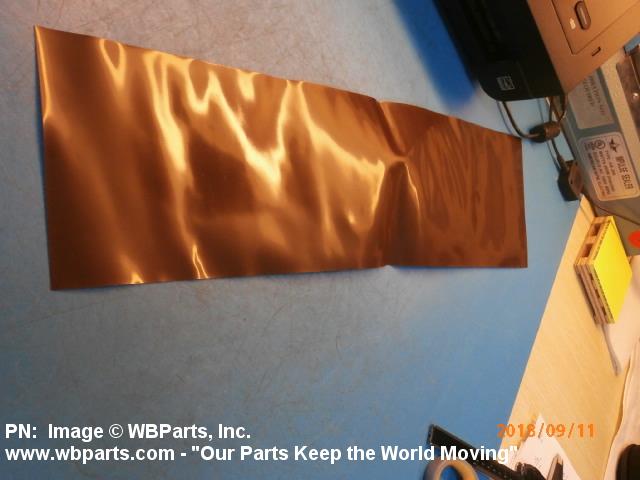

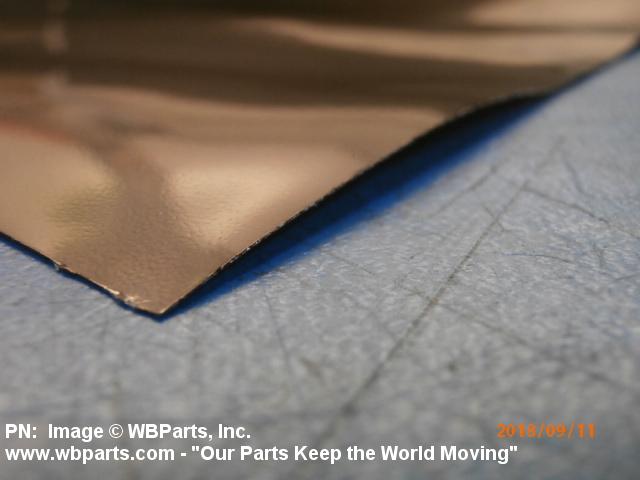

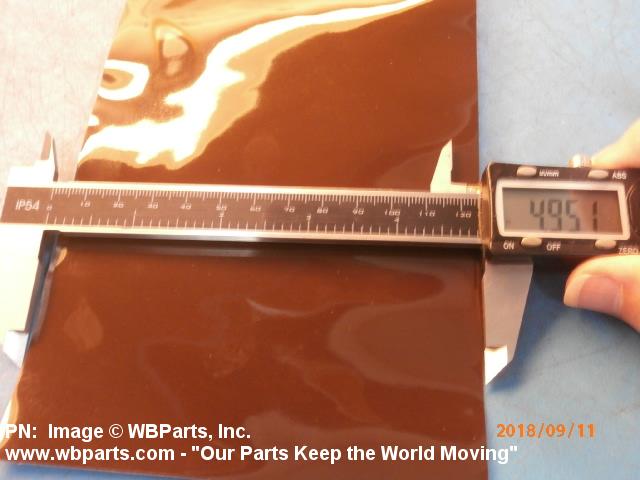

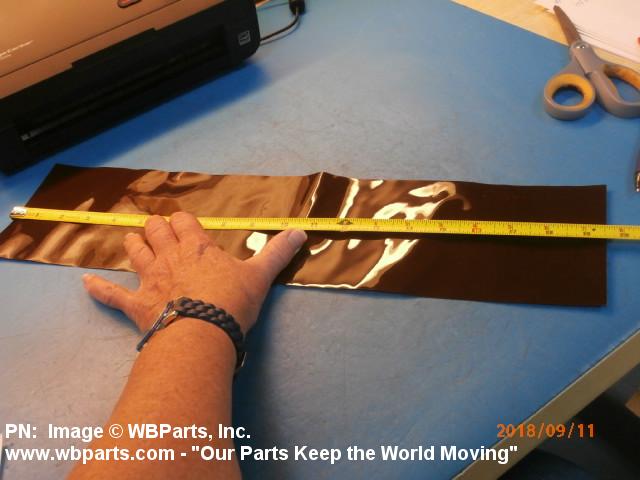

Drawings & Photos | NSN 9330-01-209-9056
Demand History | NSN 9330-01-209-9056
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 9330-01-209-9056 | 2024-08-29 | 1 | US |
| 9330-01-209-9056 | 2023-06-23 | 2 | MY |
| ARTUS-.010 BROWN-5X20 | 2021-07-14 | 363 | DIBBS |
| 9330-01-209-9056 | 2021-06-29 | 1 | Australia |
| 9330-01-209-9056 | 2020-03-12 | 1 | United States |
| ARTUS-.010 BROWN-5X20 | 2019-12-17 | 348 | DIBBS |
| ARTUS010BROWN5X20 | 2018-09-05 | 1 | United States |
| 9330-01-209-9056 | 2017-11-02 | 416 | DIBBS |
| 9330-01-209-9056 | 2017-08-24 | 1 | US |
| 9330-01-209-9056 | 2016-04-27 | 364 | DIBBS |
| 9330-01-209-9056 | 2015-03-22 | 257 | DIBBS |
| 9330-01-209-9056 | 2012-09-05 | 347 | DIBBS |
| 9330-01-209-9056 | 2012-06-15 | 1 | us |
| 9330-01-209-9056 | 2010-05-03 | 449 | DIBBS |
Cross Reference | NSN 9330-01-209-9056
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ARTUS-.010 BROWN-5X20 | 96013 | ARTUS CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 9330-01-209-9056
Related Products | NSN 9330-01-209-9056
Technical Data | NSN 9330-01-209-9056
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC |
| COLOR | BROWN BOTH SIDES |
| LENGTH | 20.000 INCHES NOMINAL |
| WIDTH | 5.000 INCHES NOMINAL |
| THICKNESS | 0.010 INCHES NOMINAL |
| MANUFACTURERS CODE | 96013 |
| DESIGN CONTROL REFERENCE | ARTUS-.010 BROWN-5X20 |
Restrictions/Controls & Freight Information | NSN 9330-01-209-9056
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 156600 | PLASTIC/RUBBER ARTICLE VIZ: |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 845 | unknown |
| Originating Activity Code | CH | Defense Supply Center Richmond Richmond, VA 23297 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 9330-01-209-9056
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
