NSN 9330-01-088-1531 1055456000, 1055456-000, 3152944
Product Details | OBSERVATION WINDOW
9330-01-088-1531 A transparent item of a predetermined size that permits unobstructed and undistorted view of a desired area. It may include a frame, have reference markings, grid lines and may be heat strengthened and/or tinted. It is generally used where safety, security, and/or the restriction of foreign matter are required, such as the visual examination of the inside of pressurized tanks, liquid sights, controlled liquid flow, and inspection of equipment enclosed in a housing. See WINDOW (as modified); SCALE, CATHODE RAY TUBE; SCALE, PLOTTING; WINDOW, METAL; WINDOW, WOOD; and WINDOW PANEL, AIRCRAFT.20293300029Plastics Fabricated Materials93400026Glass Fabricated Materials
Part Alternates: 1055456000, 1055456-000, 3152944, 9330-01-088-1531, 01-088-1531, 9330010881531, 010881531
Nonmetallic Fabricated Materials | Plastics Fabricated Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 93 | 07 JAN 1980 | 01-088-1531 | 16880 ( WINDOW, OBSERVATION ) |
Drawings & Photos | NSN 9330-01-088-1531
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 9330-01-088-1531
Technical Data | NSN 9330-01-088-1531
| Characteristic | Specifications |
|---|---|

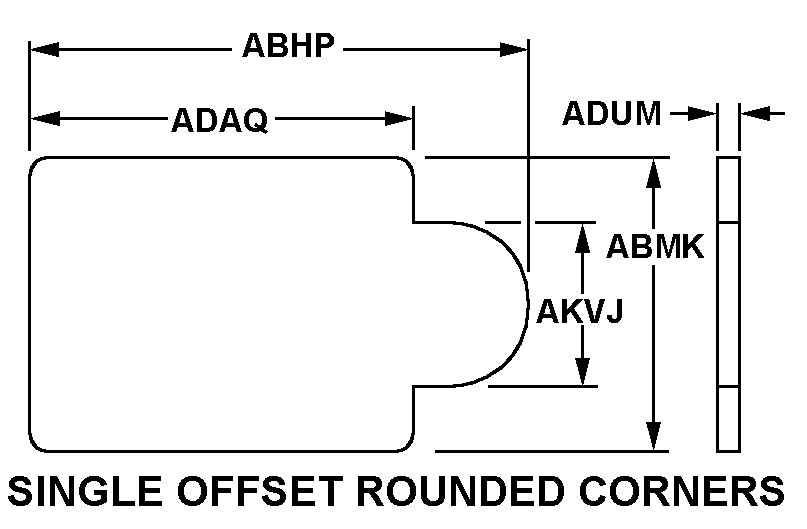

| STYLE DESIGNATOR | 11 SINGLE OFFSET ROUNDED CORNERS |
| OVERALL LENGTH | 18.220 INCHES NOMINAL |
| OVERALL WIDTH | 9.440 INCHES NOMINAL |
| BODY LENGTH | 9.910 INCHES NOMINAL |
| OVERALL THICKNESS | 0.375 INCHES NOMINAL |
| OFFSET WIDTH | 4.280 INCHES NOMINAL |
| MATERIAL | PLASTIC |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-P-5425,FINISH A MIL SPEC SINGLE MATERIAL RESPONSE |
| SURFACE FINISH | FINE FINISHED |
| MATERIAL TRANSPARENCY | CLEAR |
| EDGE TYPE | FLAT FINISH |
| PLY QUANTITY | 2 |
| TEMP AT MAXIMUM OPERATING PRESSURE | NOT RATED |
| MAXIMUM OPERATING PRESSURE | NOT RATED |
| HARDNESS RATING | NOT RATED |
| MINIMUM TENSILE STRENGTH | NOT RATED |
| ENVIRONMENTAL PROTECTION | ANY ACCEPTABLE |
| RADIATION PROTECTION RATING | NOT RATED |
| MANUFACTURERS CODE | 02769 |
| DESIGN CONTROL REFERENCE | 1055456-000 |
Restrictions/Controls & Freight Information | NSN 9330-01-088-1531
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 086700 | GLASS,FLAT,NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 704 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 9330-01-088-1531
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
