NSN 9320-01-469-8486 124-4322612 PC 76, 1244322612PC76, 124-4400059 PC 64
Product Details | RUBBER STRIP
9320-01-469-8486 An elastic material of compact (solid) or cellular structure having smooth, crepe or porous surface(s) and having an oval, parallelogram, square, rectangular or D-shaped cross section. It is produced in various thicknesses. Strips are limited to widths of 6 inches (152.4mm) or less. It may or may not have a nonrubber backing or a wire cloth or cord insert. For items having a round cross section, see RUBBER ROUND SECTION. Excludes RUBBER SHEET, INNER TUBE REPAIR. See also NONMETALLIC ANGLE; NONMETALLIC CHANNEL; NONMETALLIC SPECIAL SHAPED SECTION.20253300028Packing and Gasket Materials93200027Rubber Fabricated Materials
Part Alternates: 124-4322612 PC 76, 1244322612PC76, 124-4400059 PC 64, 1244400059PC64, 9320-01-469-8486, 01-469-8486, 9320014698486, 014698486
Nonmetallic Fabricated Materials | Rubber Fabricated Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 93 | 26 NOV 1999 | 01-469-8486 | 25879 ( RUBBER STRIP ) |
Drawings & Photos | NSN 9320-01-469-8486
Demand History | NSN 9320-01-469-8486
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 9320-01-469-8486 | 2019-07-191 | 6237 | DIBBS |
| 9320-01-469-8486 | 2016-08-234 | 4175 | DIBBS |
| 9320-01-469-8486 | 2012-06-170 | 4780 | DIBBS |
| 9320-01-469-8486 | 2012-06-156 | 2210 | DIBBS |
| 9320-01-469-8486 | 2011-03-63 | 2236 | DIBBS |
| 9320-01-469-8486 | 2010-04-93 | 1247 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 9320-01-469-8486
Technical Data | NSN 9320-01-469-8486
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER, SYNTHETIC, MIL-S-6855, CLASS 2, GRADE 40-CANCELED |
| NONMETALLIC HARDNESS RATING | 40.0 NOMINAL INTERNATIONAL RUBBER HARDNESS DEGREE SCALE |
| MINIMUM TENSILE STRENGTH | 1300 POUNDS PER SQUARE INCH |
| TEMP RATING | NOT RATED |
| SURFACE CONDITION | ANY ACCEPTABLE BOTH SIDES |

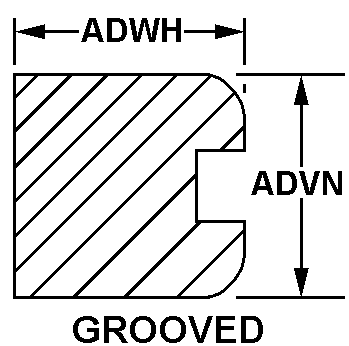

| CROSS-SECTIONAL SHAPE STYLE | 17 GROOVED |
| CROSS-SECTIONAL HEIGHT | 1.250 INCHES NOMINAL |
| CROSS-SECTIONAL WIDTH | 0.500 INCHES NOMINAL |
| LENGTH | ANY ACCEPTABLE |
| SPECIAL FEATURES | NO SPECIFIC LENGTH, CUT TO FIT |
| III END ITEM IDENTIFICATION | NIMITZ CLASS CVN |
Restrictions/Controls & Freight Information | NSN 9320-01-469-8486
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 086700 | GLASS,FLAT,BENT 220 UNITED IN |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 734 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | S | Office, School, and Household Supplies/Equipment including Office Machines, Furniture/Stationary, Films, Synthetic/Special Training Films, Non-Hazardous Household Cleaning Products, Non-Hazardous Personal Hygiene Products, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 9320-01-469-8486
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 IN : Inch |
