NSN 9320-01-378-5084 LS0431445, LS043-1445, 01-378-5084
Product Details | RUBBER STRIP
9320-01-378-5084 An elastic material of compact (solid) or cellular structure having smooth, crepe or porous surface(s) and having an oval, parallelogram, square, rectangular or D-shaped cross section. It is produced in various thicknesses. Strips are limited to widths of 6 inches (152.4mm) or less. It may or may not have a nonrubber backing or a wire cloth or cord insert. For items having a round cross section, see RUBBER ROUND SECTION. Excludes RUBBER SHEET, INNER TUBE REPAIR. See also NONMETALLIC ANGLE; NONMETALLIC CHANNEL; NONMETALLIC SPECIAL SHAPED SECTION.20253300028Packing and Gasket Materials93200027Rubber Fabricated Materials
Part Alternates: LS0431445, LS043-1445, 9320-01-378-5084, 01-378-5084, 9320013785084, 013785084
Nonmetallic Fabricated Materials | Rubber Fabricated Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 93 | 21 AUG 1993 | 01-378-5084 | 25879 ( RUBBER STRIP ) |
Drawings & Photos | NSN 9320-01-378-5084
Demand History | NSN 9320-01-378-5084
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 9320-01-378-5084 | 2015-10-277 | 24 | DIBBS |
| 9320-01-378-5084 | 2015-05-147 | 50 | US |
Cross Reference | NSN 9320-01-378-5084
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| LS043-1445 | 43999 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 9320-01-378-5084
Technical Data | NSN 9320-01-378-5084
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER, MIL-R-6855 |
| NONMETALLIC HARDNESS RATING | NOT RATED |
| MINIMUM TENSILE STRENGTH | NOT RATED |
| TEMP RATING | NOT RATED |
| FABRICATION METHOD | EXTRUDED |

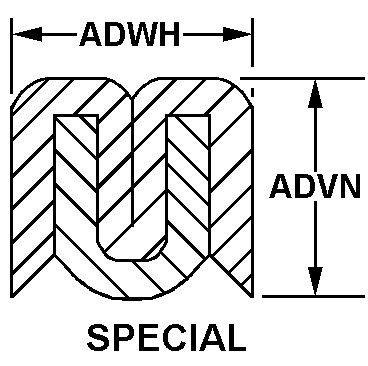

| CROSS-SECTIONAL SHAPE STYLE | 16 SPECIAL |
| CROSS-SECTIONAL HEIGHT | 0.095 INCHES NOMINAL |
| CROSS-SECTIONAL WIDTH | 0.210 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | B-1B AIRCRAFT |
| III FSC APPLICATION DATA | RUBBER FABRICATED MATERIALS |
| MANUFACTURERS CODE | 43999 |
| DESIGN CONTROL REFERENCE | LS043-1445 |
Restrictions/Controls & Freight Information | NSN 9320-01-378-5084
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 843 | unknown |
| Originating Activity Code | SX | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 9320-01-378-5084
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | E | The current standard price is an estimated price.
|
| Materiel Management Aggregation Code | EK | SX:B-1 |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 FT : Foot |
