NSN 9320-01-312-5513 PE101318, PE101318002, PE101318-002
Product Details | RUBBER ROUND SECTION
9320-01-312-5513 An item of natural and/or synthetic rubber of solid or cellular structure having a circular cross section. Items of cellular structure may be tubular or nontubular. It may have a wire or cord insert. For flexible tubular items of solid rubber structure, see TUBING NONMETALLIC. Excludes HOSE, NONMETALLIC and electric current carrying items.20253300028Packing and Gasket Materials93200027Rubber Fabricated Materials
Part Alternates: PE101318, PE101318002, PE101318-002, 9320-01-312-5513, 01-312-5513, 9320013125513, 013125513
Nonmetallic Fabricated Materials | Rubber Fabricated Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 93 | 17 DEC 1989 | 01-312-5513 | 20856 ( RUBBER ROUND SECTION ) |

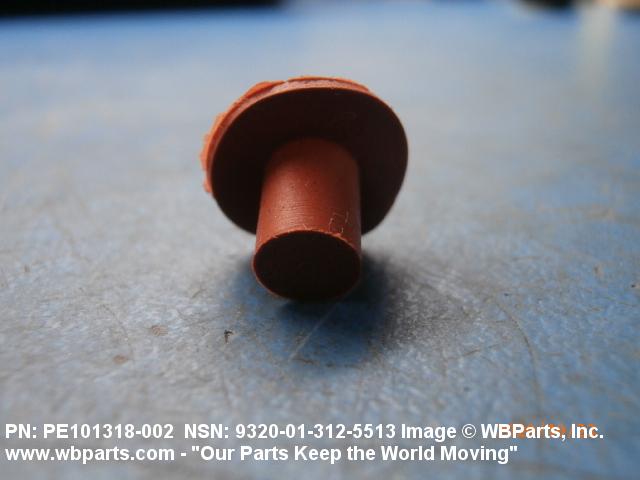

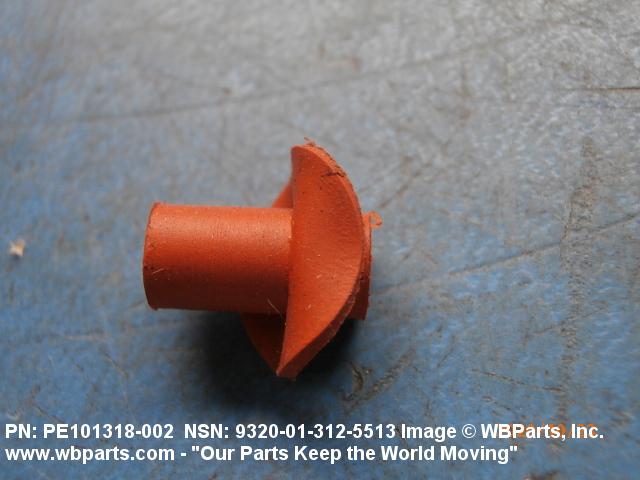

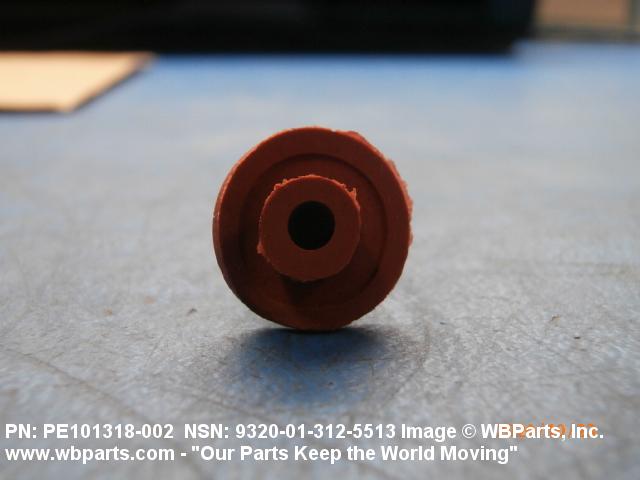

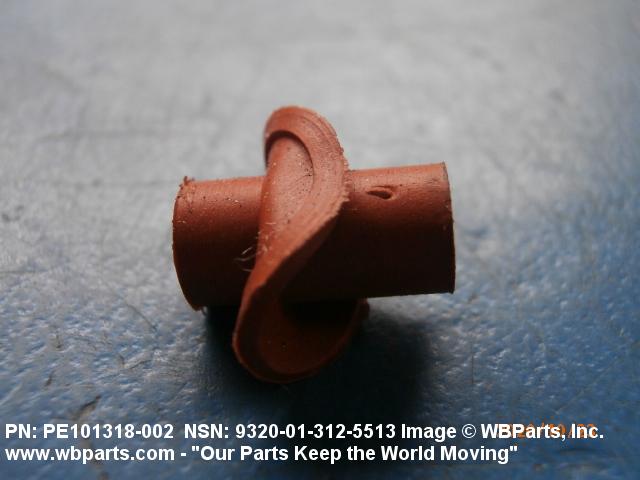

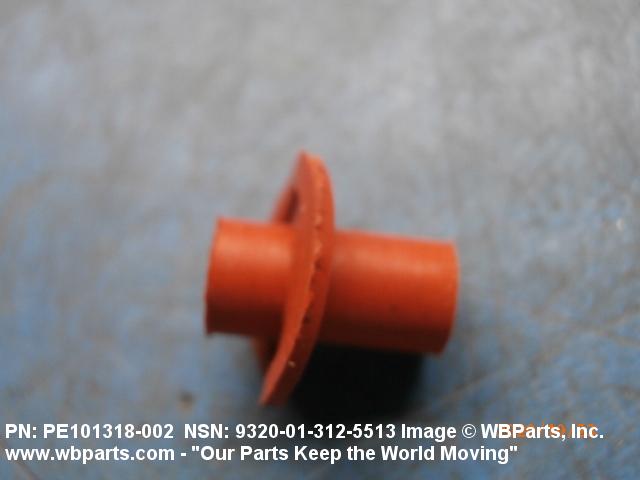

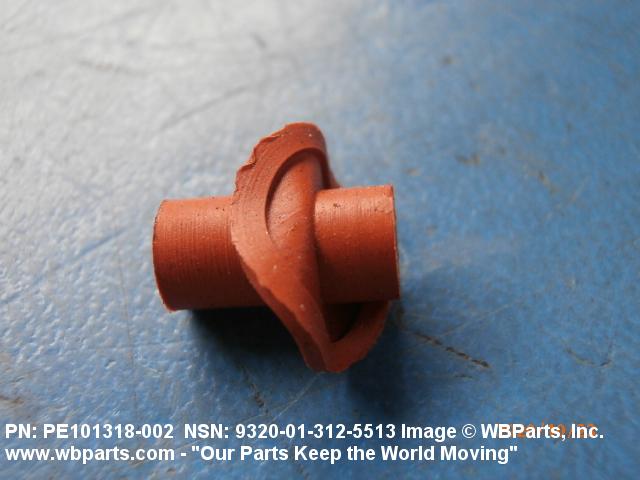

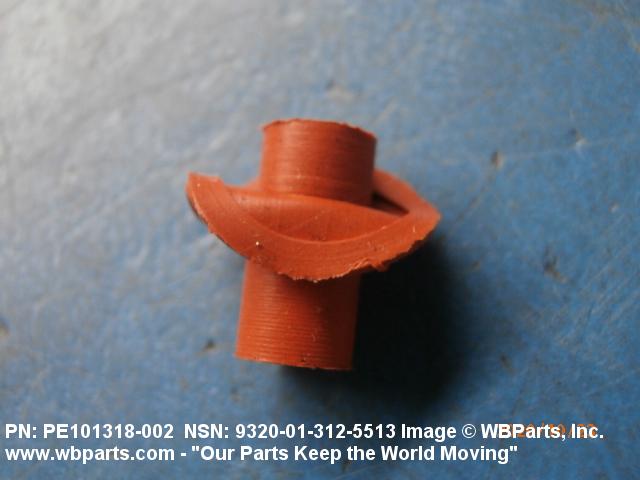

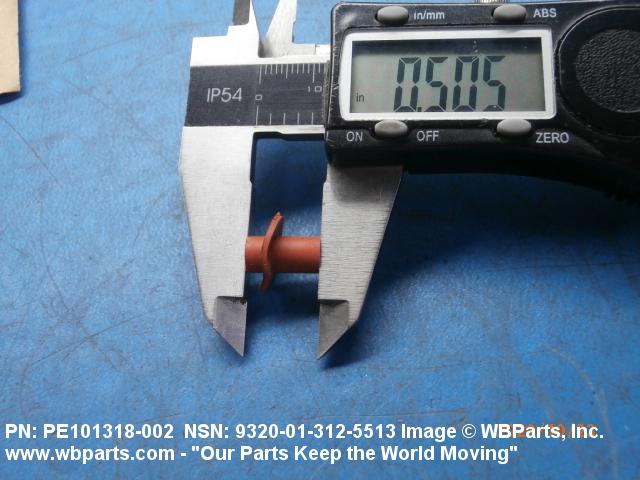

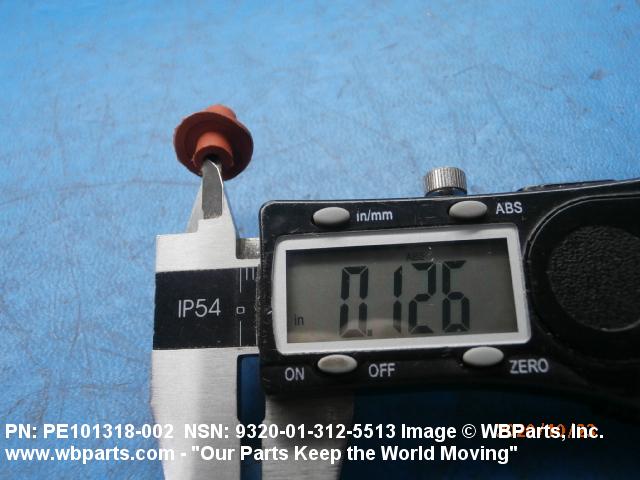

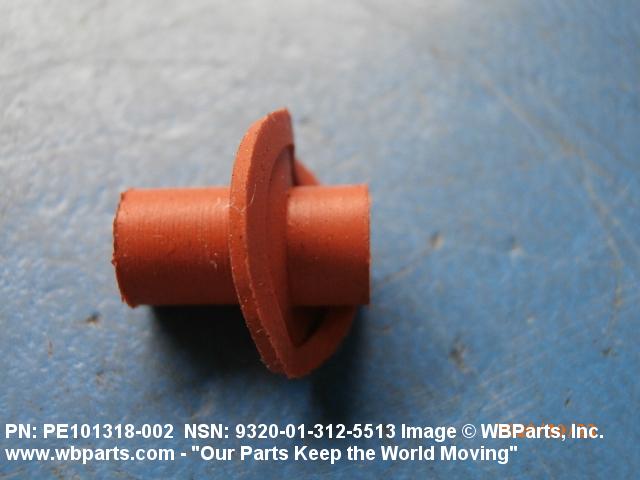

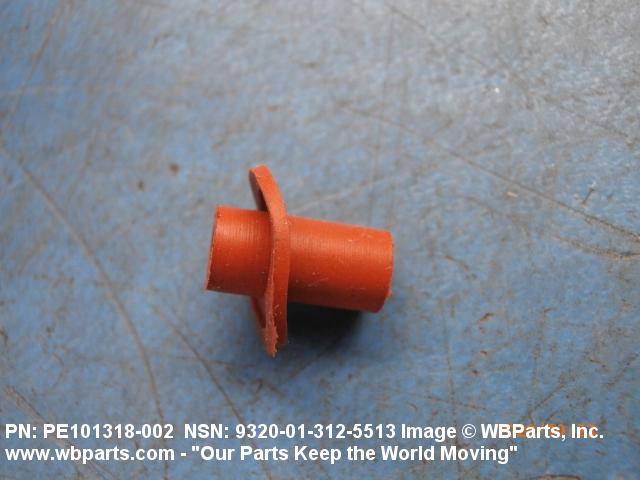

Drawings & Photos | NSN 9320-01-312-5513
Demand History | NSN 9320-01-312-5513
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 9320-01-312-5513 | 2024-09-267 | 100 | United States |
| PE101318-002 | 2022-08-222 | 72 | DIBBS |
| 9320-01-312-5513 | 2020-07-195 | 75 | United States |
| PE101318-002 | 2020-07-184 | 72 | DIBBS |
| PE101318-002 | 2020-06-173 | 72 | DIBBS |
| 9320-01-312-5513 | 2015-05-142 | 166 | DIBBS |
| 9320-01-312-5513 | 2015-05-127 | 166 | DIBBS |
| 9320-01-312-5513 | 2013-01-31 | 130 | DIBBS |
| 9320-01-312-5513 | 2012-10-295 | 20 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 9320-01-312-5513
Related Products | NSN 9320-01-312-5513
Technical Data | NSN 9320-01-312-5513
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER, SILICONE, ZZ-R-765 |
| NONMETALLIC HARDNESS RATING | 65.0 MINIMUM SHORE DUROMETER A AND 75.0 MAXIMUM SHORE DUROMETER A |
| MINIMUM TENSILE STRENGTH | 1100 POUNDS PER SQUARE INCH |
| TEMP RATING | -70.0 DEG CELSIUS AND 204.0 DEG CELSIUS |
| ENVIRONMENTAL PROTECTION | TEAR |
| SURFACE CONDITION | SMOOTH BOTH SIDES |
| CROSS-SECTIONAL SHAPE STYLE | 23 CIRCULAR WITH CENTER APERTURE |
| CROSS SECTION INSIDE DIAMETER | 0.125 INCHES NOMINAL |

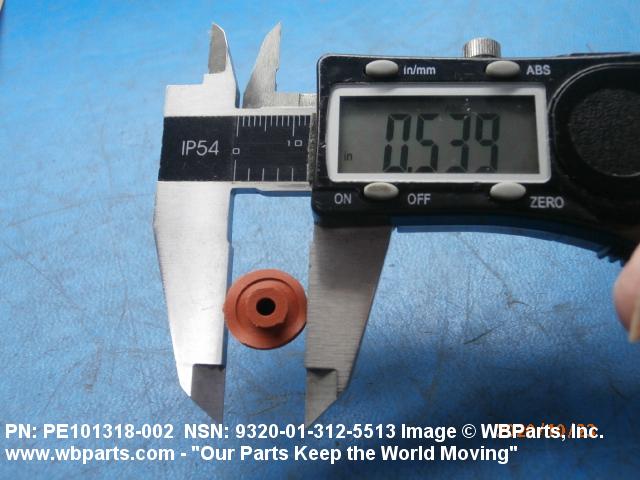

| CROSS SECTION OUTSIDE DIAMETER | 0.540 INCHES NOMINAL |
| LENGTH | 0.500 INCHES NOMINAL |
| SPECIAL FEATURES | MATERIAL CLASS 3B GRADE 70,FLEX RESISTANT,LUSTERLESS RED |
| CRITICALITY CODE JUSTIFICATION | FEAT |
Restrictions/Controls & Freight Information | NSN 9320-01-312-5513
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 156600 | PLASTIC/RUBBER ARTICLE VIZ: |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 772 | unknown |
| Originating Activity Code | CH | Defense Supply Center Richmond Richmond, VA 23297 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 9320-01-312-5513
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | TG | TG:AF SICA RESIDUAL MMAC-WR-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
