NSN 9320-00-531-1700 AMS3320, AMS-3320, 00-531-1700
Product Details | SOLID RUBBER SHEET
9320-00-531-1700 An elastic material of compact structure usually having a smooth surface. It may or may not have a nonrubber backing or a metallic cloth insertion. It is produced in various thicknesses. Sheets are limited to widths greater than 6 inches (152.4 mm). For rubber sheets with one or more nonmetallic cloth inserts, see RUBBER SHEET, SOLID, CLOTH INSERT. For items that are basically cloth, coated on one or both sides, see CLOTH, COATED; and CLOTH, LAMINATED. Excludes RUBBER SHEET, INNER TUBE REPAIR.
Part Alternates: AMS3320, AMS-3320, 9320-00-531-1700, 00-531-1700, 9320005311700, 005311700
Nonmetallic Fabricated Materials | Rubber Fabricated Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 93 | 11 SEP 1974 | 00-531-1700 | 11335 ( RUBBER SHEET, SOLID ) |

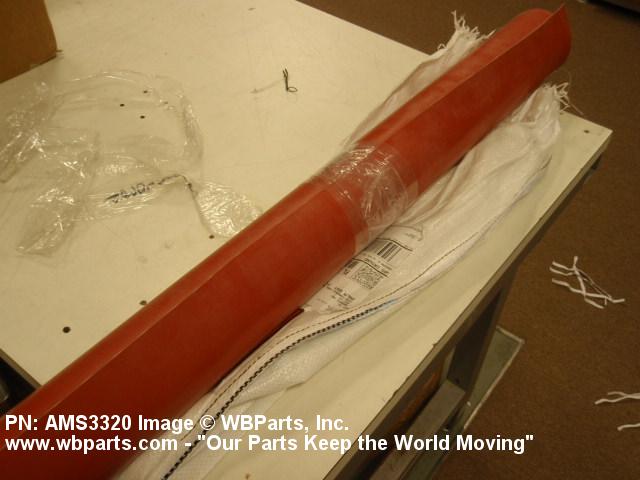

Drawings & Photos | NSN 9320-00-531-1700
Demand History | NSN 9320-00-531-1700
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AMS3320 | 2020-02-51 | 1 | Canada |
| AMS3320 | 2017-04-110 | 5 | United States |
| 9320-00-531-1700 | 2015-07-196 | 84 | DIBBS |
| 9320-00-531-1700 | 2015-06-159 | 107 | DIBBS |
| 9320-00-531-1700 | 2015-03-63 | 51 | DIBBS |
| 9320-00-531-1700 | 2015-01-29 | 49 | DIBBS |
| 9320-00-531-1700 | 2014-11-306 | 24 | DIBBS |
| 9320-00-531-1700 | 2013-07-195 | 41 | DIBBS |
| 9320-00-531-1700 | 2012-10-293 | 29 | DIBBS |
| 9320-00-531-1700 | 2011-05-133 | 4 | DIBBS |
| 9320-00-531-1700 | 2010-12-343 | 8 | DIBBS |
| 9320-00-531-1700 | 2010-05-134 | 7 | DIBBS |
Cross Reference | NSN 9320-00-531-1700
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AMS-3320 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 9320-00-531-1700
Related Products | NSN 9320-00-531-1700
Technical Data | NSN 9320-00-531-1700
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER, SILICONE, AMS 3320 |
| STRENGTHENING FEATURE | INTERNALLY MOLDED-IN REINFORCEMENT |
| STRENGTHENING FEATURE MATERIAL | GLASS FABRIC |
| NONMETALLIC HARDNESS RATING | 60.0 MINIMUM SHORE DUROMETER A AND 80.0 MAXIMUM SHORE DUROMETER A |
| MINIMUM TENSILE STRENGTH | NOT RATED |
| ENVIRONMENTAL PROTECTION | COMPRESSION AND CORROSION RESISTANT AND HEAT, DRY AND LOW TEMPERATURE AND WEATHER RESISTANT |
| SURFACE CONDITION | SMOOTH BOTH SIDES |
| LENGTH | 36.000 INCHES NOMINAL |
| WIDTH | 36.000 INCHES NOMINAL |
| THICKNESS | 0.100 INCHES NOMINAL |
| SPECIFICATION/STANDARD DATA | 81343-AMS 3320 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 9320-00-531-1700
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 156830 | PLASTIC/RUBR FILM/SHEETING |
| Less than car load rating | ||
| Less than truck load rating | T | 55.0 |
| Water commodity Code | 772 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 9320-00-531-1700
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | TG | TG:AF SICA RESIDUAL MMAC-WR-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
