NSN 9320-00-434-1997 LS200001, LS20000-1, 00-434-1997
Product Details | RUBBER STRIP
9320-00-434-1997 An elastic material of compact (solid) or cellular structure having smooth, crepe or porous surface(s) and having an oval, parallelogram, square, rectangular or D-shaped cross section. It is produced in various thicknesses. Strips are limited to widths of 6 inches (152.4mm) or less. It may or may not have a nonrubber backing or a wire cloth or cord insert. For items having a round cross section, see RUBBER ROUND SECTION. Excludes RUBBER SHEET, INNER TUBE REPAIR. See also NONMETALLIC ANGLE; NONMETALLIC CHANNEL; NONMETALLIC SPECIAL SHAPED SECTION.20253300028Packing and Gasket Materials93200027Rubber Fabricated Materials
Part Alternates: LS200001, LS20000-1, 9320-00-434-1997, 00-434-1997, 9320004341997, 004341997
Nonmetallic Fabricated Materials | Rubber Fabricated Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 93 | 11 FEB 1972 | 00-434-1997 | 25879 ( RUBBER STRIP ) |
Drawings & Photos | NSN 9320-00-434-1997
Cross Reference | NSN 9320-00-434-1997
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| LS20000-1 | 06491 | LOCKHEED PROPULSION CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 9320-00-434-1997
Technical Data | NSN 9320-00-434-1997
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER, SYNTHETIC, MIL-S-6855, CLASS 2, GRADE 60-CANCELED |
| NONMETALLIC HARDNESS RATING | 60.0 NOMINAL SHORE DUROMETER A |
| MINIMUM TENSILE STRENGTH | NOT RATED |
| TEMP RATING | -40.0 DEG FAHRENHEIT AND 200.0 DEG FAHRENHEIT |
| FABRICATION METHOD | ANY ACCEPTABLE |
| ENVIRONMENTAL PROTECTION | OIL RESISTANT AND OZONE RESISTANT AND WEATHER RESISTANT |
| SURFACE CONDITION | SMOOTH |
| COLOR | ANY ACCEPTABLE |

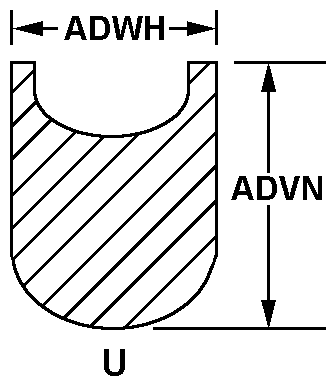

| CROSS-SECTIONAL SHAPE STYLE | 13 U |
| CROSS-SECTIONAL HEIGHT | 0.250 INCHES NOMINAL |
| CROSS-SECTIONAL WIDTH | 0.156 INCHES NOMINAL |
| LENGTH | ANY ACCEPTABLE |
| MANUFACTURERS CODE | 06491 |
| DESIGN CONTROL REFERENCE | LS20000-1 |
Restrictions/Controls & Freight Information | NSN 9320-00-434-1997
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 156950 | PLASTIC/RUBR MOULDINGS CHANNELS ETC |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 772 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 9320-00-434-1997
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | TG | TG:AF SICA RESIDUAL MMAC-WR-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
