NSN 9160-01-555-8602 COOLANOL25R1GAL, 01-555-8602, 015558602
Product Details | ELECTRICAL INSULATING OIL
9160-01-555-8602 A light or medium bodied mineral oil, a synthetically prepared product, or a combination thereof, which is used in transformers, oil circuit breakers, and other electrical apparatus as an insulating or cooling medium or both.
Part Alternates: COOLANOL25R1GAL, 9160-01-555-8602, 01-555-8602, 9160015558602, 015558602
Fuels, Lubricants, Oils, and Waxes | Miscellaneous Waxes, Oils, and Fats
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 91 | 17 SEP 2007 | 01-555-8602 | 06408 ( INSULATING OIL, ELECTRICAL ) |

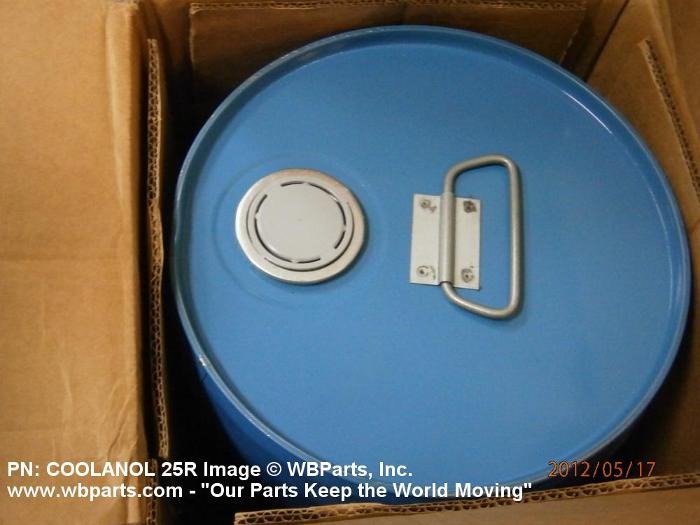

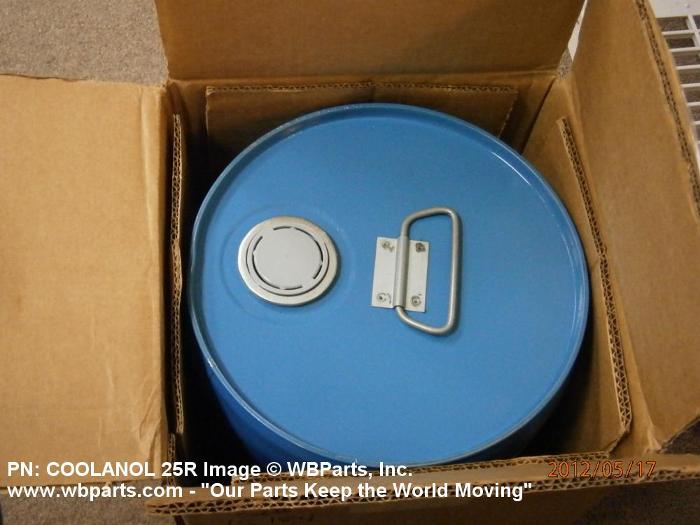

Drawings & Photos | NSN 9160-01-555-8602
Cross Reference | NSN 9160-01-555-8602
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| COOLANOL 25R,1GAL | 0TS34 | EXXON MOBIL CORPORATION DBA EXXONMOBIL CHEMICAL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 9160-01-555-8602
Technical Data | NSN 9160-01-555-8602
| Characteristic | Specifications |
|---|---|
| BASIC INGREDIENT | SILICATE-ESTER BASE |
| MAXIMUM VISCOSITY AT RATED TEMP | CENTISTOKES 4.40, AT 104 DEG FAHRENHEIT |
| MINIMUM VISCOSITY AT RATED TEMP | CENTISTOKES 1.50, AT 212 DEG FAHRENHEIT |
| FLASH POINT MINIMUM TEMP RATING | 325.0 DEG FAHRENHEIT |
| DIELECTRIC WITHSTANDING VOLTAGE IN VOLTS | 35000.0 |
| MAXIMUM COLOR NUMBER | NOT RATED |
| SPECIAL FEATURES | PACKAGED IN ROUND CAN |
Restrictions/Controls & Freight Information | NSN 9160-01-555-8602
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | D | There is no information in the HMIS; however, the NSN is in an FSC in Table I of Federal Standard 313 and an MSDS should be available to the user |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
