NSN 8345-01-079-1869 NAS1091A30, 01-079-1869, 010791869
Product Details | WARNING STREAMER

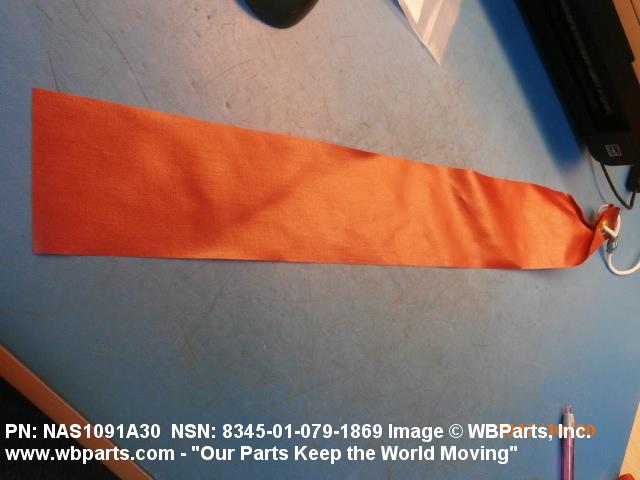

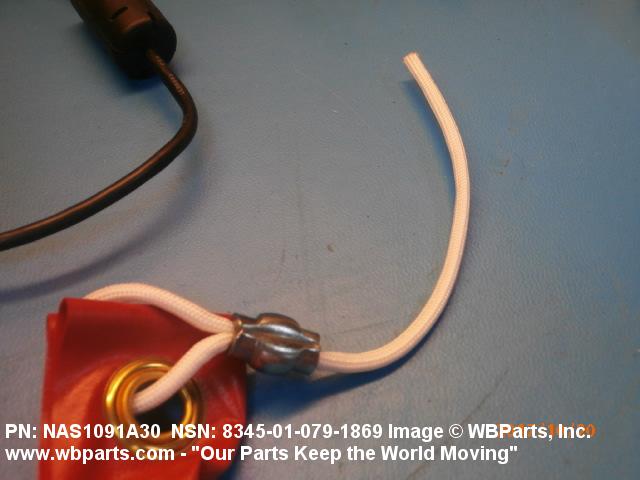

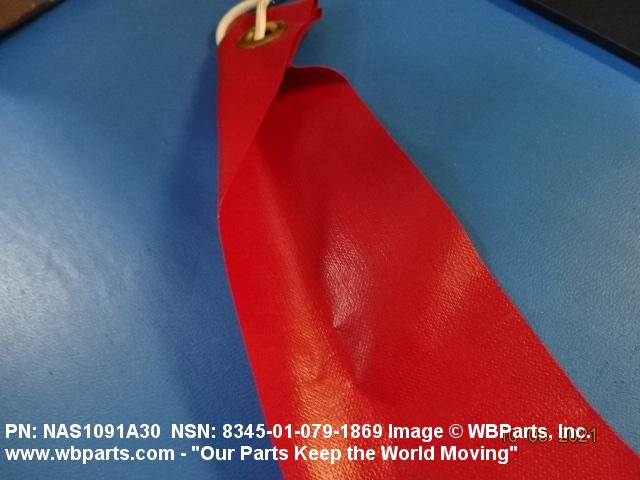

8345-01-079-1869 A narrow strip of brightly colored material, with or without attaching hardware. It is designed for attachment to specific locations of aircraft, guided missiles, space vehicles, rockets, tanks, tractors, trucks and the like, to warn that certain preoperation functions are required. It may include precautions written, painted or sewed theron. Excludes MARKER (as modified), TAG (as modified), PIN, GROUND SAFTEY; and PIN SET, GROUND SAFTEY.
Part Alternates: NAS1091A30, 8345-01-079-1869, 01-079-1869, 8345010791869, 010791869
Textiles, Leather, Furs, Apparel and Shoe Findings, Tents and Flags | Flags and Pennants
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
83 | 29 JUN 1979 | 01-079-1869 | 33043 ( STREAMER, WARNING ) |
Demand History | NSN 8345-01-079-1869
Part Number | Request Date | QTY | Origin |
---|---|---|---|
8345-01-079-1869 | 2024-06-178 | 4 | United States |
8345-01-079-1869 | 2024-03-81 | 10 | United States |
NAS1091A30 | 2023-02-48 | 1 | United States |
NAS1091A30 | 2021-10-284 | 4 | United States |
8345-01-079-1869 | 2021-05-126 | 2 | us |
NAS1091A30 | 2021-05-123 | 25 | United States |
NAS1091A30 | 2020-08-244 | 6 | United States |
8345-01-079-1869 | 2018-10-284 | 1 | US |
NAS1091A30 | 2017-10-289 | 25 | United States |
8345-01-079-1869 | 2016-09-267 | 10 | US |
8345-01-079-1869 | 2016-08-236 | 1 | US |
8345-01-079-1869 | 2016-08-236 | 5 | US |
NAS1091A30 | 2014-01-13 | 3 | South Korea |
Cross Reference | NSN 8345-01-079-1869
Part Number | Cage Code | Manufacturer |
---|---|---|
NAS1091A30 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 8345-01-079-1869
Related Products | NSN 8345-01-079-1869
Technical Data | NSN 8345-01-079-1869
Characteristic | Specifications |
---|---|
DESIGN DESIGNATION | SUPPORT ARMY AND AIR FORCE AIRCRAFT |

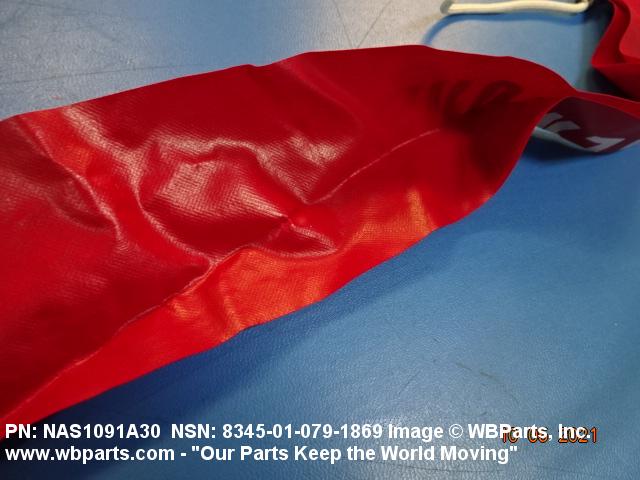

FIBER MATERIAL | NYLON |
CLOTH NAME | PLAIN WEAVE |
STYLE DESIGNATOR | 2C RECTANGULAR |

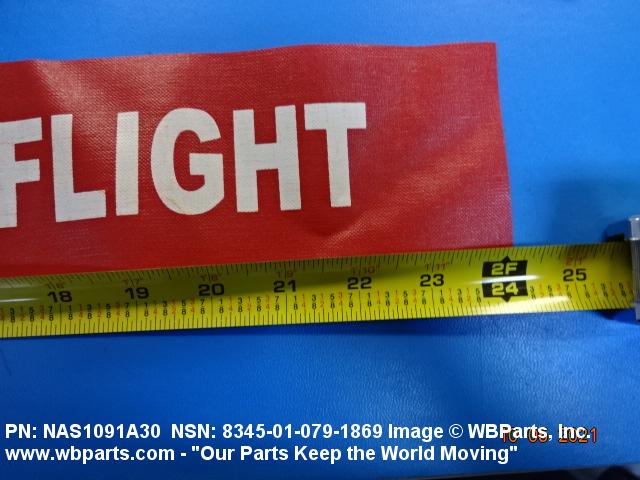

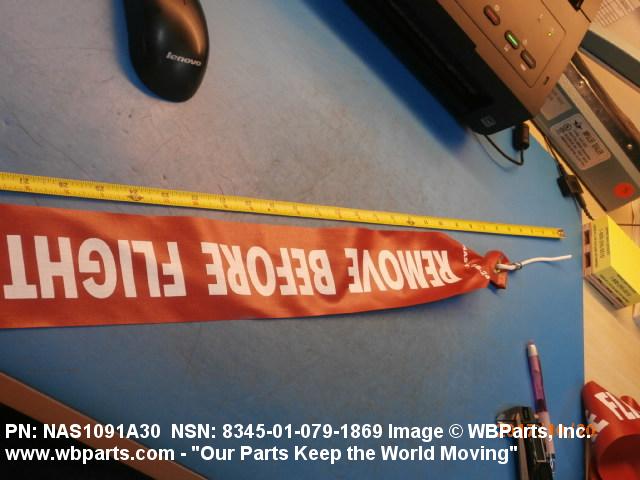

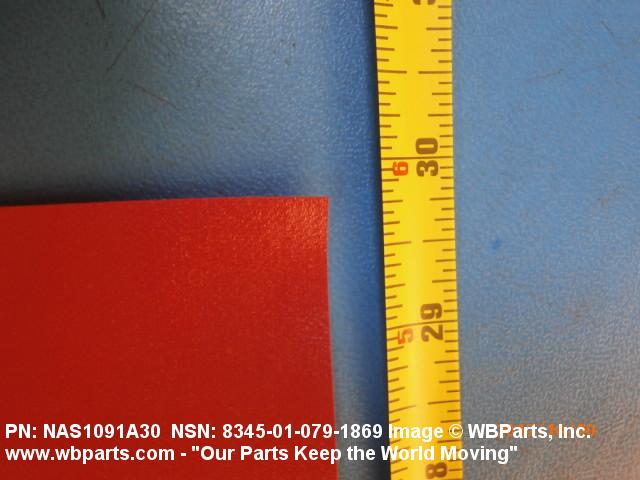

FLY | 30.000 INCHES |

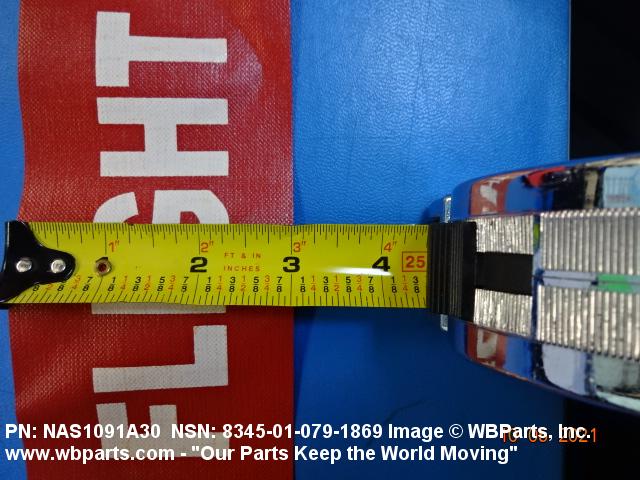

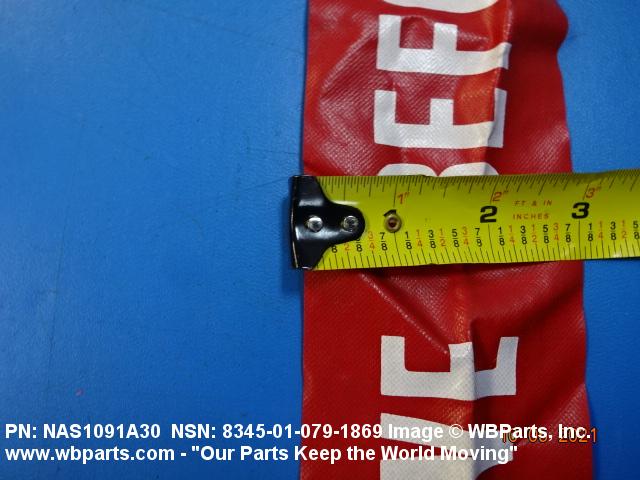

HOIST | 3.000 INCHES |
COLOR | RED, FED STD 595, 11136 BOTH SIDES |
ENVIRONMENTAL PROTECTION | WATERPROOF AND OIL RESISTANT AND WEATHER RESISTANT AND FIRE RESISTANT AND AROMATIC HYDROCARBON RESISTANT |

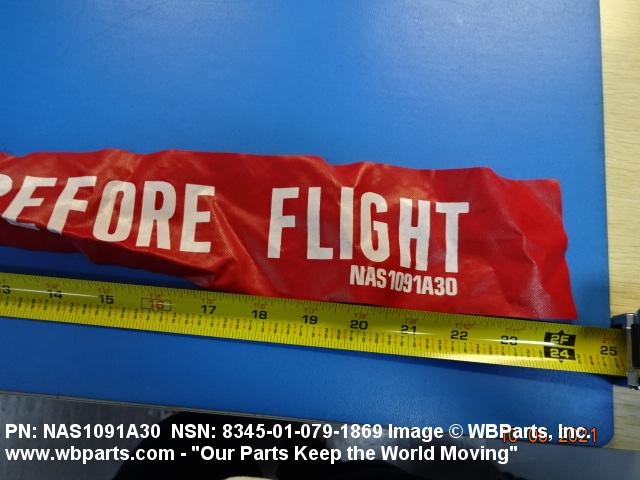

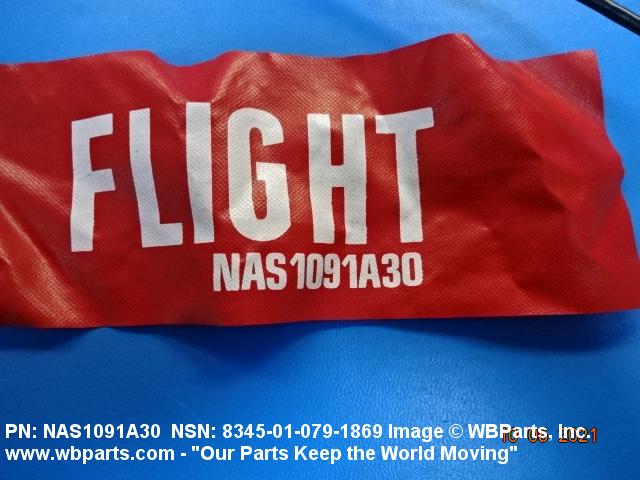

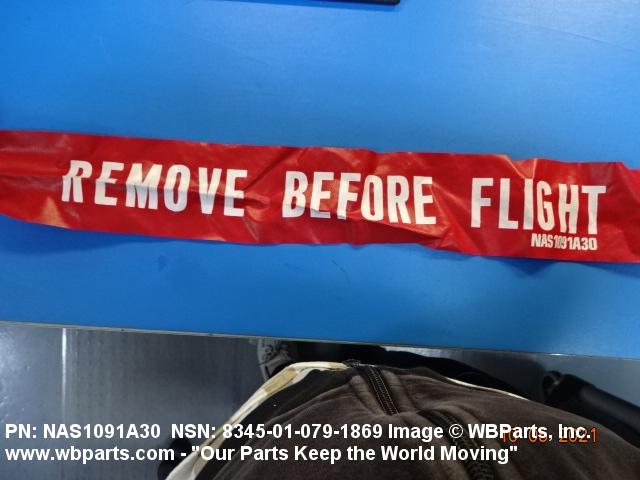

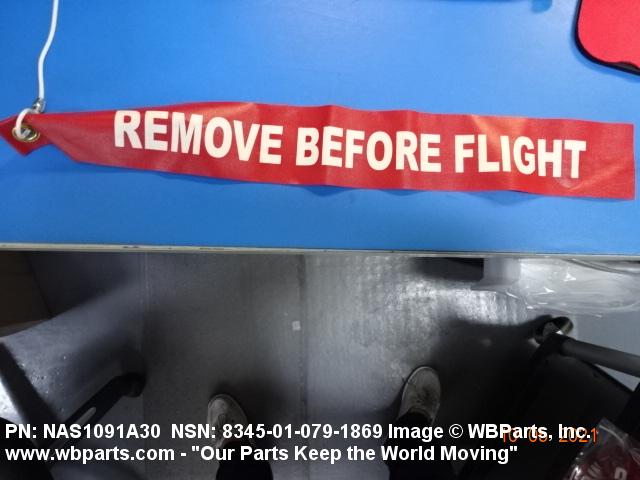

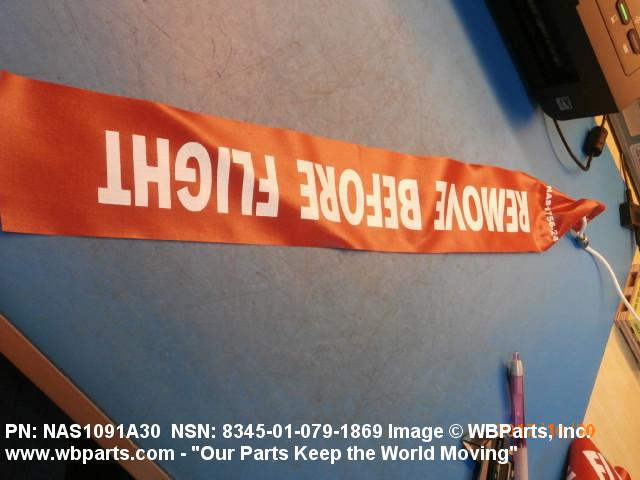

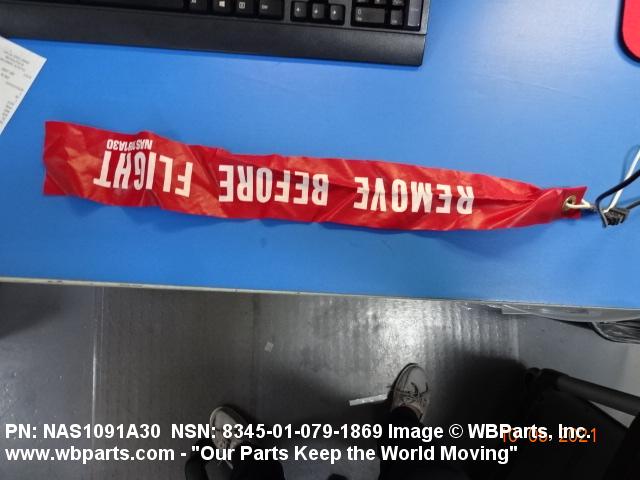

SPECIAL FEATURES | LEGEND,REMOVE BEFORE FLIGHT |
MANUFACTURERS CODE | 80205 |
DESIGN CONTROL REFERENCE | NAS1091A30 |
Restrictions/Controls & Freight Information | NSN 8345-01-079-1869
Category | Code | Description |
---|---|---|
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Precious Metals Indicator Code: | U | Precious metal type is unknown |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
No Freight Information |
