NSN 8345-00-393-1169 DB2430, DB-2430, 00-393-1169
Product Details | MARITIME DAY SHAPE
8345-00-393-1169 An object of specified geometric form required by law to be exhibited by a vessel when engaged in certain occupations hazardous to navigation, or to indicate certain conditions of limited maneuverability. The color, minimum dimensions, and conditions of use are prescribed by law. It is usually constructed of metal and fabric to be collapsible.
Part Alternates: DB2430, DB-2430, 8345-00-393-1169, 00-393-1169, 8345003931169, 003931169
Textiles, Leather, Furs, Apparel and Shoe Findings, Tents and Flags | Flags and Pennants
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 83 | 01 JAN 1963 | 00-393-1169 | 28602 ( SHAPE, DAY, MARITIME ) |
Drawings & Photos | NSN 8345-00-393-1169
Cross Reference | NSN 8345-00-393-1169
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| DB-2430 | 91144 | DELGROSSO BROS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 8345-00-393-1169
Technical Data | NSN 8345-00-393-1169
| Characteristic | Specifications |
|---|---|
| FIBER MATERIAL | COTTON |
| CLOTH NAME | DUCK |

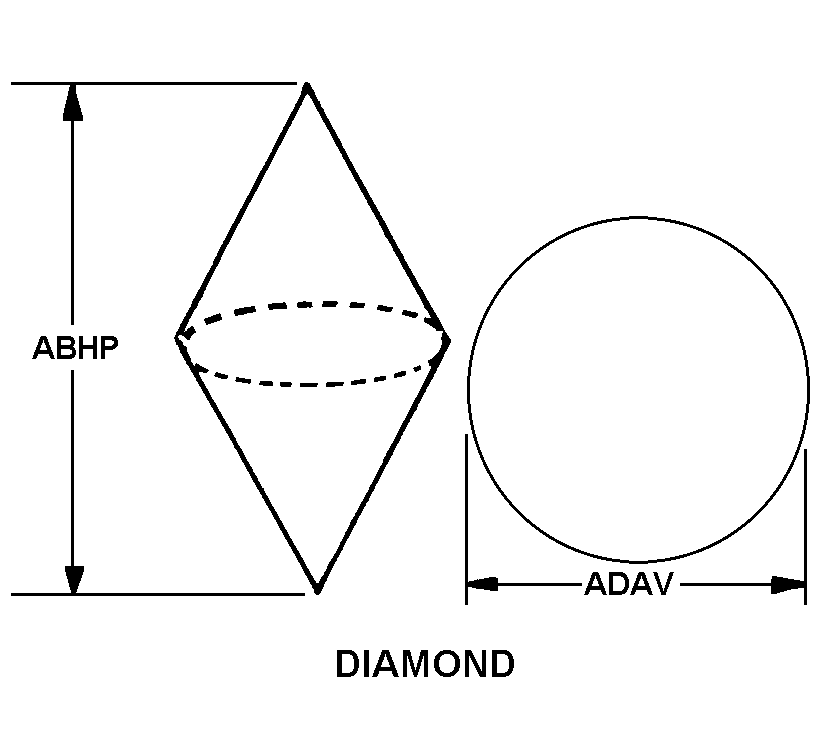

| STYLE DESIGNATOR | 2E DIAMOND |
| OVERALL DIAMETER | 2.500 FEET NOMINAL |
| OVERALL LENGTH | 2.500 FEET NOMINAL |
| COLOR | WHITE BOTH SIDES |
| MANUFACTURERS CODE | 91144 |
| DESIGN CONTROL REFERENCE | DB-2430 |
Restrictions/Controls & Freight Information | NSN 8345-00-393-1169
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
