NSN 8345-00-285-5963 AA55298, A-A-55298, MILS29134
Product Details | MARITIME DAY SHAPE
8345-00-285-5963 An object of specified geometric form required by law to be exhibited by a vessel when engaged in certain occupations hazardous to navigation, or to indicate certain conditions of limited maneuverability. The color, minimum dimensions, and conditions of use are prescribed by law. It is usually constructed of metal and fabric to be collapsible.
Part Alternates: AA55298, A-A-55298, MILS29134, MIL-S-29134, 8345-00-285-5963, 00-285-5963, 8345002855963, 002855963
Textiles, Leather, Furs, Apparel and Shoe Findings, Tents and Flags | Flags and Pennants
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 83 | 01-JAN-63 | 00-285-5963 | 28602 ( SHAPE, DAY, MARITIME ) |
Drawings & Photos | NSN 8345-00-285-5963
Demand History | NSN 8345-00-285-5963
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 8345-00-285-5963 | 2019-06-156 | 1 | United States |
| 8345-00-285-5963 | 2018-06-159 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 8345-00-285-5963
Technical Data | NSN 8345-00-285-5963
| Characteristic | Specifications |
|---|---|
| FIBER MATERIAL | COTTON |
| CLOTH NAME | DUCK |

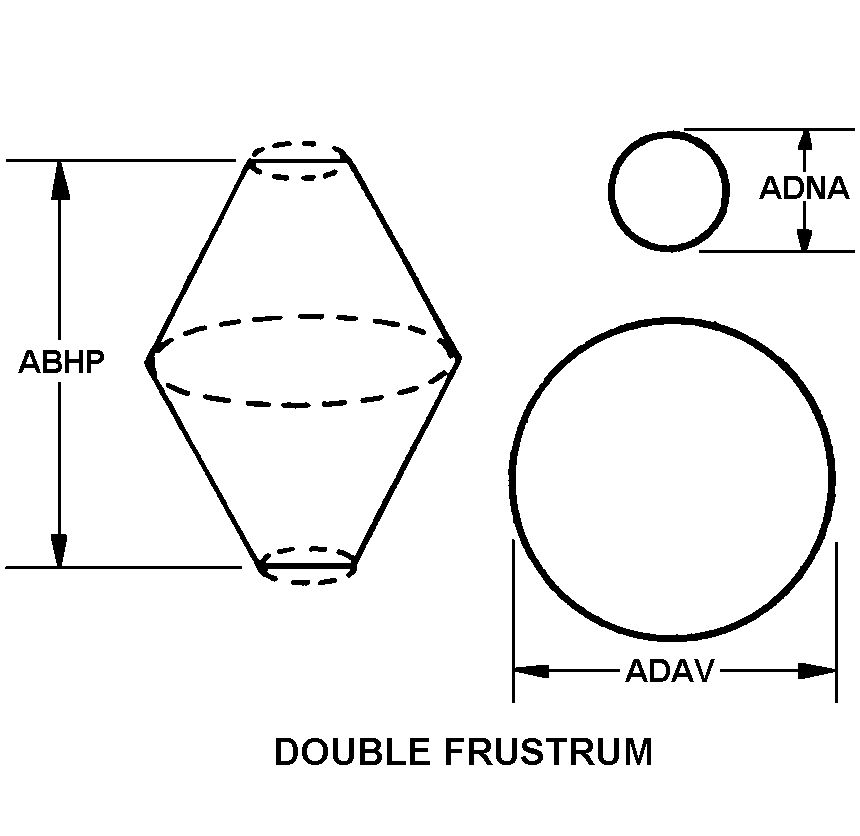

| STYLE DESIGNATOR | 3E DOUBLE FRUSTRUM |
| MINOR OUTSIDE DIAMETER | 8.000 INCHES NOMINAL |
| OVERALL DIAMETER | 2.000 FEET NOMINAL |
| OVERALL LENGTH | 4.000 FEET NOMINAL |
| COLOR | BLACK AND WHITE BOTH SIDES |
| FURNISHED ITEMS AND QUANTITY | COLLAPSIBLE FRAME 1 |
| SPECIAL FEATURES | W/HORIZONTAL STRIPES |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-S-29134 |
Restrictions/Controls & Freight Information | NSN 8345-00-285-5963
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
