NSN 8345-00-178-8687 MILF2692, 16696SH9C, 00-178-8687

8345-00-178-8687 A pennant which is used to convey a command, warning, or message.

Part Alternates: MILF2692, 16696SH9C, 8345-00-178-8687, 00-178-8687, 8345001788687, 001788687

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
83	01 JAN 1963	00-178-8687	27074 ( PENNANT, SIGNAL )

Part Number	Request Date	QTY	Origin	SBA
MILF2692	2018-12-353	550	US

Part Number	Cage Code	Manufacturer
16696SH9C	80064	NAVAL SHIP SYSTEMS COMMAND
MILF2692	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 8345-00-178-8687

Compare

8345-00-179-0112, 8345-00-179-0113, 8345-00-179-0114, 8345-00-181-3951, 8345-00-181-7512

Characteristic	Specifications
DESIGN DESIGNATION	INTERROGATIVE
FIBER MATERIAL	COTTON
CLOTH NAME	BUNTING
SIZE DESIGNATION	8

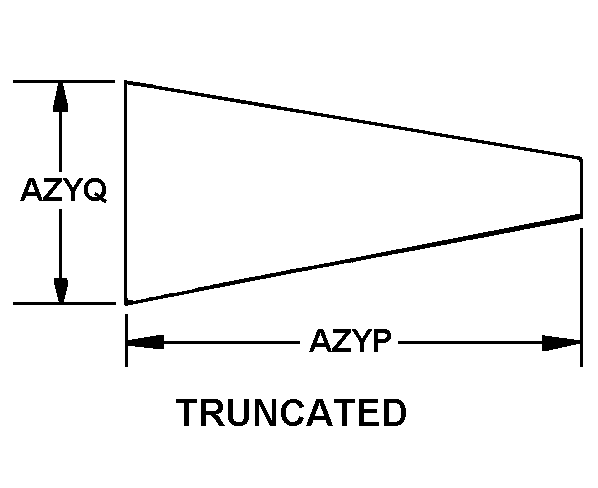

STYLE DESIGNATOR	3B TRUNCATED
FLY	2.417 FEET
HOIST	1.167 FEET
NONDEFINITIVE SPEC/STD DATA	1 TYPE AND 1 CLASS
REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS	AS DIFFERENTIATED BY DESIGN DESIGNATION AND FIBER MATERIAL
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MILF2692
MANUFACTURERS CODE	80064
DESIGN CONTROL REFERENCE	16696SH9C

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	070050	FLAGS/FLAG SETS SUB6
Less than car load rating	J	100.2
Less than truck load rating	J	100.2
Water commodity Code	757	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	S	Office, School, and Household Supplies/Equipment including Office Machines, Furniture/Stationary, Films, Synthetic/Special Training Films, Non-Hazardous Household Cleaning Products, Non-Hazardous Personal Hygiene Products, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Category	Code	Description
Cognizance Codes	9D	Navy-owned stocks of clothing, textiles and related items managed by the Defense Supply Center Philadelphia Naval Inventory Control Point, Mechanicsburg
Source of Supply	S9T	Defense Supply Center Philadelphia Philadelphia, PA 19101
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	V	TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
