NSN 8315-01-508-8034 6411, 01-508-8034, 015088034
Product Details | BUCKLE
8315-01-508-8034 A fastening device used to join two ends of a belt, strap or the like. It may be a single unit designed to be attached to one end of a belt or strap and secure the opposite end by penetration, by clamping, or by friction, or it may consist of male and female sections having one section attached at each end of the belt or strap and joins the two ends by a hook-like or other interlocking action.20253400020Hardware, Commercial83150028Notions and Apparel Findings
Part Alternates: 6411, 8315-01-508-8034, 01-508-8034, 8315015088034, 015088034
Textiles, Leather, Furs, Apparel and Shoe Findings, Tents and Flags | Notions and Apparel Findings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 83 | 03 JUN 2003 | 01-508-8034 | 17223 ( BUCKLE ) |

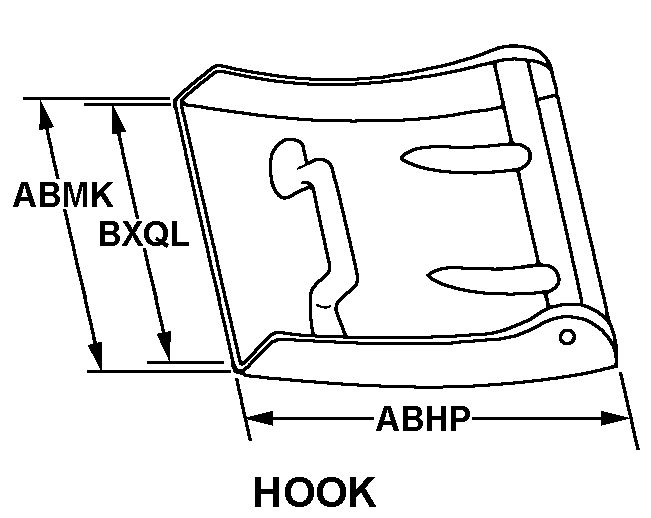

Drawings & Photos | NSN 8315-01-508-8034
Demand History | NSN 8315-01-508-8034
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6411 | 2011-05-123 | 15 | United States |
Cross Reference | NSN 8315-01-508-8034
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6411 | 07MZ0 | NATIONAL MOLDING CORP. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 8315-01-508-8034
Technical Data | NSN 8315-01-508-8034
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | PLASTIC OVERALL |
| ENAMELED FEATURE | NOT INCLUDED |
| BUCKLE STYLE DESIGNATOR | B50 HOOK |
| OVERALL LENGTH | 1.760 INCHES NOMINAL |
| OVERALL WIDTH | 1.360 INCHES NOMINAL |
| STRAP ACCOMMODATION WIDTH | 1.020 INCHES NOMINAL |
| SPECIFIC USAGE DESIGN | REPAIR ON A FIELD BROKEN FEMALE BUCKLE |
| INSIGNIA | NOT INCLUDED |
| SPECIAL FEATURES | USED WITH PAT NUMBERS 7005 OR 6358 |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | FEMALE BUCKLE STEALTH QUIK ATTACHMENT |
Restrictions/Controls & Freight Information | NSN 8315-01-508-8034
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
