NSN 8315-01-506-6798 MILH21155, MIL-H-21155, 01-506-6798
Product Details | BUCKLE
8315-01-506-6798 A fastening device used to join two ends of a belt, strap or the like. It may be a single unit designed to be attached to one end of a belt or strap and secure the opposite end by penetration, by clamping, or by friction, or it may consist of male and female sections having one section attached at each end of the belt or strap and joins the two ends by a hook-like or other interlocking action.20253400020Hardware, Commercial83150028Notions and Apparel Findings
Part Alternates: MILH21155, MIL-H-21155, 8315-01-506-6798, 01-506-6798, 8315015066798, 015066798
Textiles, Leather, Furs, Apparel and Shoe Findings, Tents and Flags | Notions and Apparel Findings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 83 | 07 APR 2003 | 01-506-6798 | 17223 ( BUCKLE ) |
Drawings & Photos | NSN 8315-01-506-6798
Demand History | NSN 8315-01-506-6798
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 8315-01-506-6798 | 2023-01-09 | 4000 | DIBBS |
| 8315-01-506-6798 | 2020-01-16 | 4000 | DIBBS |
| 8315-01-506-6798 | 2019-12-345 | 4 | JP |
| 8315-01-506-6798 | 2017-03-60 | 4000 | DIBBS |
| 8315-01-506-6798 | 2015-08-230 | 2000 | DIBBS |
Cross Reference | NSN 8315-01-506-6798
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MIL-H-21155 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 8315-01-506-6798
Related Products | NSN 8315-01-506-6798
Technical Data | NSN 8315-01-506-6798
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | COPPER ALLOY OVERALL AND ZINC ALLOY OVERALL |
| ENAMELED FEATURE | NOT INCLUDED |

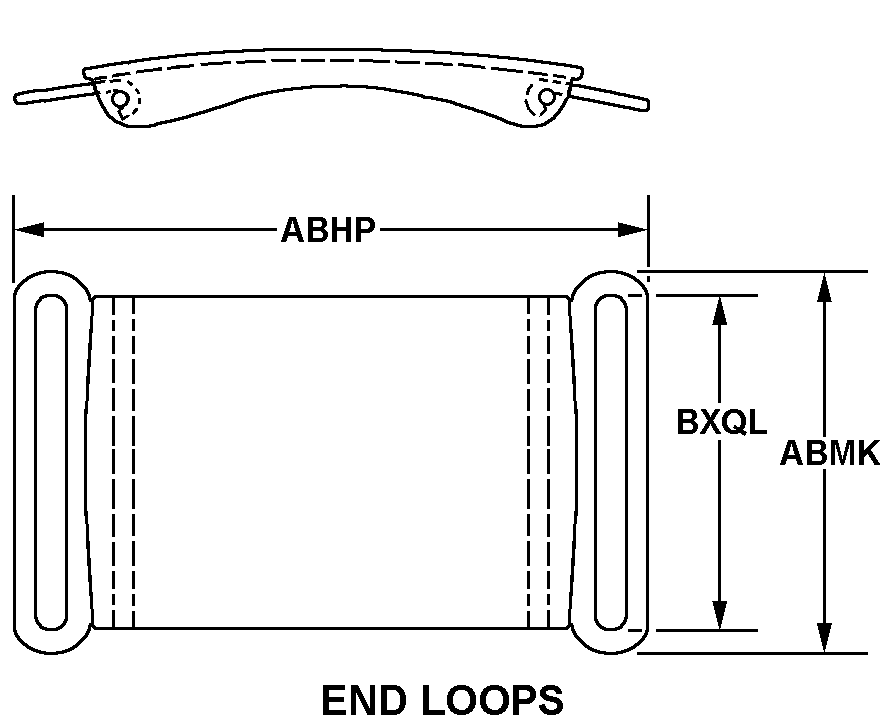

| BUCKLE STYLE DESIGNATOR | B39 END LOOPS |
| OVERALL LENGTH | 3.375 INCHES NOMINAL |
| OVERALL WIDTH | 2.719 INCHES NOMINAL |
| STRAP ACCOMMODATION WIDTH | 2.281 INCHES NOMINAL |
| SPECIFIC USAGE DESIGN | MILITARY POLICE |
| INSIGNIA | NOT INCLUDED |
| SPECIAL FEATURES | BUCKLES FOR BELT, MILITARY POLICE, GOLD PLATED |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-H-21155 |
Restrictions/Controls & Freight Information | NSN 8315-01-506-6798
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094570 | FASTENERS/HOOKS/LACINGS BELT |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | CY | Defense Supply Center Philadelphia Philiadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | K | Clothing, including clothing equipment (other than arms and chemical supplies) cordage, fabrics and leather, parachutes, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 8315-01-506-6798
Navy
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
