NSN 8305-00-270-1128 MILC5651TYPE1, 00-270-1128, 002701128
Product Details | ELASTIC CORD

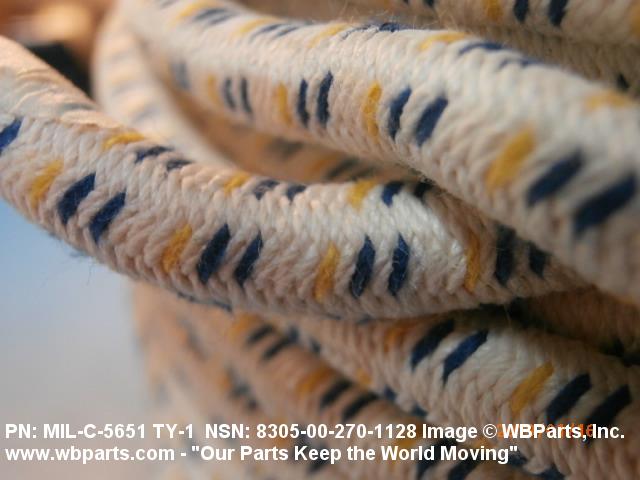

8305-00-270-1128 An item composed of one or more elastic strands encased within a layer or layers of braid. It is generally used for shock absorbing and exercising cord. It may be straight cord or endless ring type. Excludes garters and CORD, ELASTIC, PARACHUTE PACK OPENING.
Part Alternates: MILC5651TYPE1, 8305-00-270-1128, 00-270-1128, 8305002701128, 002701128
Textiles, Leather, Furs, Apparel and Shoe Findings, Tents and Flags | Textile Fabrics
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 83 | 01 JAN 1963 | 00-270-1128 | 13319 ( CORD, ELASTIC ) |
Drawings & Photos | NSN 8305-00-270-1128
Cross Reference | NSN 8305-00-270-1128
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MILC5651TYPE1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 8305-00-270-1128
Technical Data | NSN 8305-00-270-1128
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER |
| FIBER MATERIAL | COTTON |
| BREAKING STRENGTH | 300.00 POUNDS NOMINAL |
| FEATURES PROVIDED | STRAIGHT |

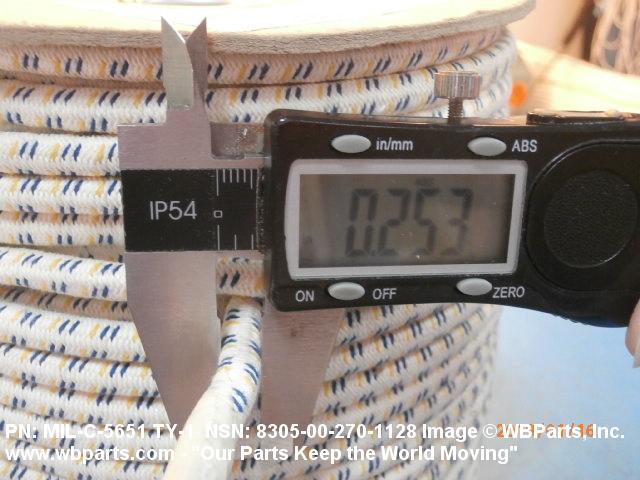

| DIAMETER | 0.250 INCHES |
| LENGTH | ANY ACCEPTABLE |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILC5651TYPE1 |
Restrictions/Controls & Freight Information | NSN 8305-00-270-1128
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 049390 | DRY GOODS OR TEXTILES |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 757 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | K | Clothing, including clothing equipment (other than arms and chemical supplies) cordage, fabrics and leather, parachutes, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 8305-00-270-1128
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
