NSN 8140-01-112-8056 2508439, 01-112-8056, 011128056
Product Details | AMMUNITION PACKING BOX
8140-01-112-8056 An expandable special-purpose box specifically designed for packing, storage and/or shipment of ammunition and ammunition components. It is designed to accommodate a specific type and size of ammunition or component in designated quantities and includes various liners, dividers, separators, inserts, and other packing materials. May be constructed of paperboard, fiberboard, or wood and may be used as an inner container. Excludes BOX (1), AMMUNITION; CRATE, SHIPPING AND STORAGE, AMMUNITION; BOX (1), INTERMEDIATE PACKING; BOX (1), SETUP; BOX (1), SHIPPING; BOX (1), FOLDING; and SHIPPING AND STORAGE CONTAINER (as modified).
Part Alternates: 2508439, 8140-01-112-8056, 01-112-8056, 8140011128056, 011128056
Containers, Packaging, and Packing Supplies | Ammunition and Nuclear Ordnance Boxes, Packages and Special Containers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 81 | 10 MAY 1981 | 01-112-8056 | 33500 ( BOX, PACKING, AMMUNITION ) |
Drawings & Photos | NSN 8140-01-112-8056
Cross Reference | NSN 8140-01-112-8056
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2508439 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 8140-01-112-8056
Technical Data | NSN 8140-01-112-8056
| Characteristic | Specifications |
|---|---|

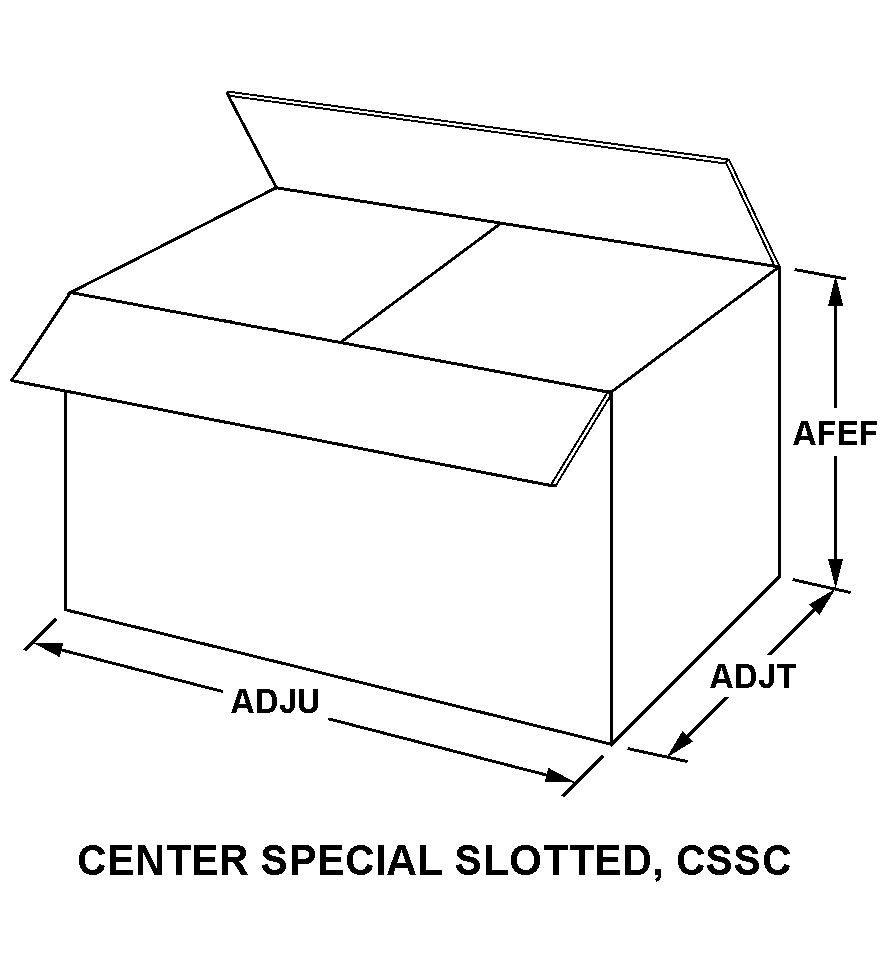

| STYLE DESIGNATOR | C3 CENTER SPECIAL SLOTTED, CSSC |
| INSIDE LENGTH | 18.625 INCHES NOMINAL |
| INSIDE WIDTH | 14.437 INCHES NOMINAL |
| INSIDE DEPTH | 13.125 INCHES NOMINAL |
| MATERIAL | FIBERBOARD, PPP-F-320, TYPE CF, CLASS DOMESTIC, VARIETY SW, GRADE 175 |
| ASSEMBLY FORM | FOLDED |
| CLOSURE METHOD | FLAPS |
| HUMIDITY CONTROL DESIGN FEATURE | NO |
| CUBIC CAPACITY | 2.1 CUBIC FEET |
| CONTAINER LOAD HAZARD DESIGNATION | TYPE II |
| STACKING FEATURE | NO |
| BOX MANUFACTURER CERTIFICATE | NOT REQUIRED |
| SPECIAL FEATURES | F/PERCUSSION FUZES |
| MANUFACTURERS CODE | 10001 |
| DESIGN CONTROL REFERENCE | 2508439 |
Restrictions/Controls & Freight Information | NSN 8140-01-112-8056
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 029790 | BOXES R CHESTS TOOL/FISH TACKLE |
| Less than car load rating | K | 92.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 691 | unknown |
| Originating Activity Code | BF | U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 8140-01-112-8056
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 2E | Conventional air ammunition Naval Ordnance Center, IMSD Mechanicsburg, PA |
| Source of Supply | NCB | Naval Ordnance Center P.O. Box 2011 Mechanicsburg, PA 17055-0788 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | X | Special Program Reparables |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
