NSN 8140-01-107-3715 9276780, 01-107-3715, 011073715
Product Details | AMMUNITION PACKING BOX
8140-01-107-3715 An expandable special-purpose box specifically designed for packing, storage and/or shipment of ammunition and ammunition components. It is designed to accommodate a specific type and size of ammunition or component in designated quantities and includes various liners, dividers, separators, inserts, and other packing materials. May be constructed of paperboard, fiberboard, or wood and may be used as an inner container. Excludes BOX (1), AMMUNITION; CRATE, SHIPPING AND STORAGE, AMMUNITION; BOX (1), INTERMEDIATE PACKING; BOX (1), SETUP; BOX (1), SHIPPING; BOX (1), FOLDING; and SHIPPING AND STORAGE CONTAINER (as modified).
Part Alternates: 9276780, 8140-01-107-3715, 01-107-3715, 8140011073715, 011073715
Containers, Packaging, and Packing Supplies | Ammunition and Nuclear Ordnance Boxes, Packages and Special Containers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 81 | 04 FEB 1981 | 01-107-3715 | 33500 ( BOX, PACKING, AMMUNITION ) |
Drawings & Photos | NSN 8140-01-107-3715
Cross Reference | NSN 8140-01-107-3715
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9276780 | 19200 | US ARMY ARDEC RDECOM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 8140-01-107-3715
Technical Data | NSN 8140-01-107-3715
| Characteristic | Specifications |
|---|---|

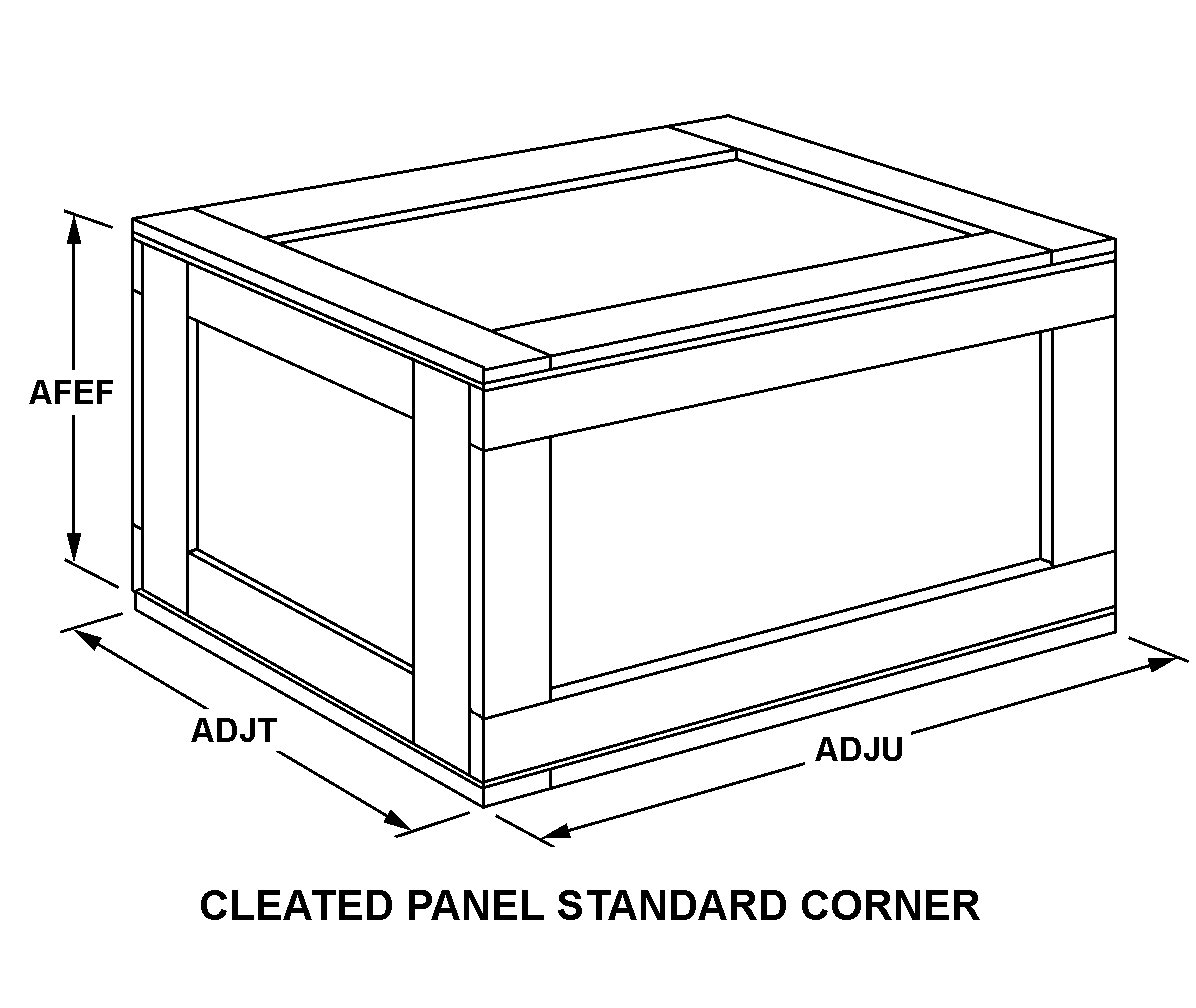

| STYLE DESIGNATOR | C29 CLEATED PANEL STANDARD CORNER |
| INSIDE LENGTH | 27.000 INCHES NOMINAL |
| INSIDE WIDTH | 11.687 INCHES NOMINAL |
| INSIDE DEPTH | 7.250 INCHES NOMINAL |
| MATERIAL | WOOD |
| ASSEMBLY FORM | KNOCKED-DOWN |
| HANDLING FACILITY TYPE | FIXED EXTERNAL HANDLES |
| ASSEMBLY METHOD | NAILED |
| CLOSURE METHOD | HINGED COVER |
| CLOSURE FASTENING TYPE | HASP |
| HUMIDITY CONTROL DESIGN FEATURE | NO |
| CUBIC CAPACITY | 1.3 CUBIC FEET |
| CONTAINER LOAD HAZARD DESIGNATION | TYPE II |
| STACKING FEATURE | NO |
| BOX MANUFACTURER CERTIFICATE | NOT REQUIRED |
| SPECIAL FEATURES | F/4.2 IN.MORTAR AMMO IN FIBER CNTR,PA46 IN JUNGLE WRAP |
| MANUFACTURERS CODE | 19200 |
| DESIGN CONTROL REFERENCE | 9276780 |
Restrictions/Controls & Freight Information | NSN 8140-01-107-3715
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 029790 | BOXES R CHESTS TOOL/FISH TACKLE |
| Less than car load rating | M | 85 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 691 | unknown |
| Originating Activity Code | BF | U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 8140-01-107-3715
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | D | Single Manager Ammunition |
| Appropriation and Budget Activity | K | Ammunition |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | Y | Conventional Ammunition |
| Weapons Systems/End Item or Homogeneous Group | Y7 | Packaging Material for Conven tional Ammunition Maintenance and Renovation Project |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | B14 | US Army Armament and Chemical Acquisition and Logistics Activity ATTN: AMSTA-AC Rock Island, IL 61299-6000 |
| Agency | DA | Department of the Army |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Acquisition Advice Codes | B | INVENTORY CONTROL POINT (ICP)-REGULATED (Service/Agency use only.) # Issue, transfer, or shipment is controlled by the ICP. 1. The use or stockage of the item requires release authority based on prior or concurrent justification. 2. Requisitions will be submitted in accordance with Agency/Service requisitioning procedure. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
