NSN 8140-00-833-8387 2580136, 2580137, 00-833-8387
Product Details | AMMUNITION SHIPPING AND STORAGE CRATE
8140-00-833-8387 A reusable item of frame construction or consisting, in all parts, of equally spaced boards. The item is designed to accommodate ammunition during storage, handling, and/or shipment. Excludes: BOX, AMMUNITION.
Part Alternates: 2580136, 2580137, 8140-00-833-8387, 00-833-8387, 8140008338387, 008338387
Containers, Packaging, and Packing Supplies | Ammunition and Nuclear Ordnance Boxes, Packages and Special Containers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 81 | 11 SEP 1967 | 00-833-8387 | 33227 ( CRATE, SHIPPING AND STORAGE, AMMUNITION ) |
Drawings & Photos | NSN 8140-00-833-8387
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 8140-00-833-8387
Related Products | NSN 8140-00-833-8387
Technical Data | NSN 8140-00-833-8387
| Characteristic | Specifications |
|---|---|

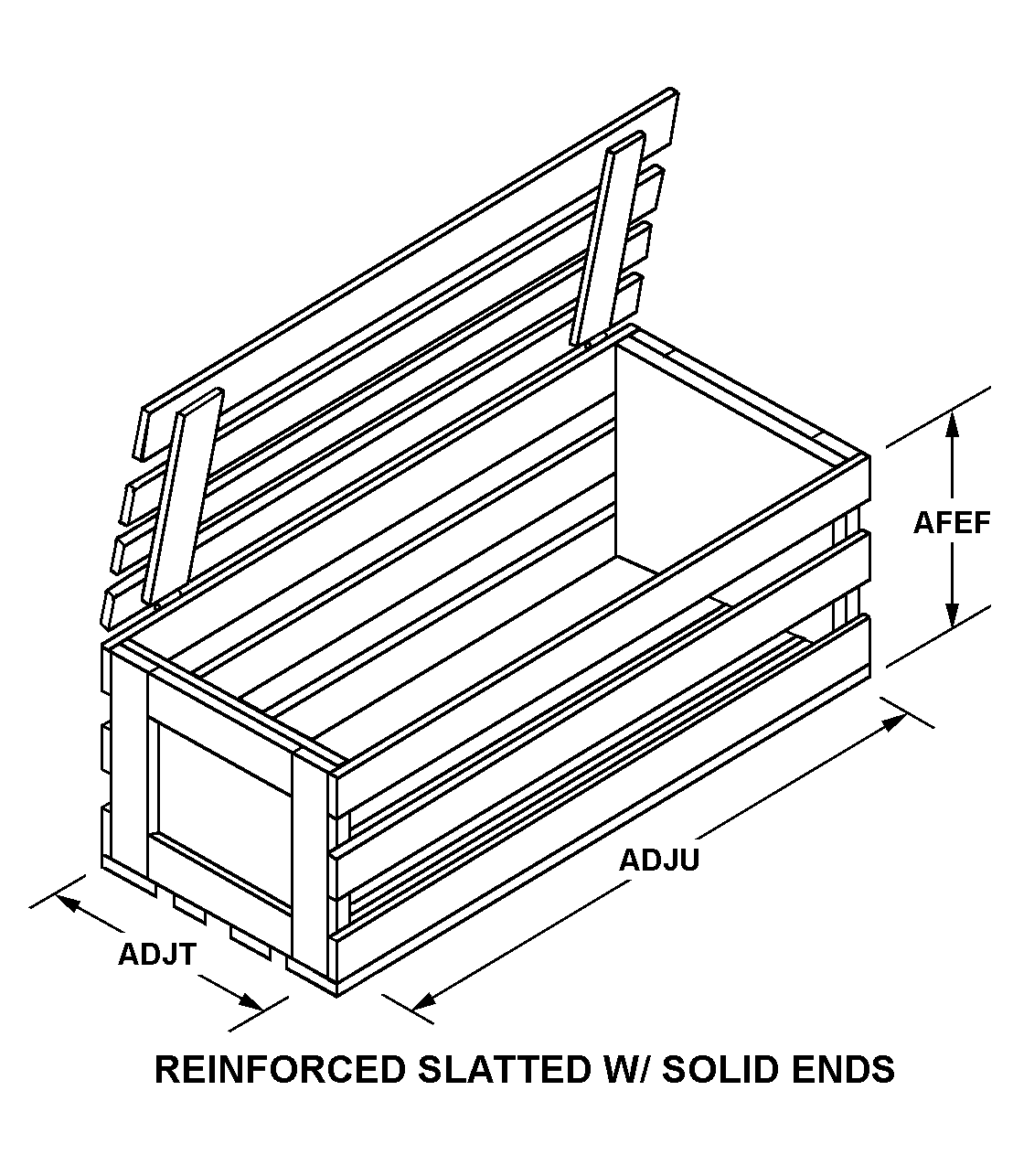

| STYLE DESIGNATOR | K4 REINFORCED SLATTED W/SOLID ENDS |
| INSIDE LENGTH | 33.062 INCHES NOMINAL |
| INSIDE WIDTH | 12.125 INCHES NOMINAL |
| INSIDE DEPTH | 12.125 INCHES NOMINAL |
| MATERIAL | STEEL |
| ASSEMBLY FORM | SET-UP |
| CUBIC CAPACITY | 2.8 CUBIC FEET |
| STACKING FEATURE | YES |
| SPECIAL FEATURES | MK 28 MOD 0 EMPTY FOR ONE FIN MK 15 MODS 0 OR 1 RETARD TYPE FOR 500 POUND BOMB MK 82 |
| MANUFACTURERS CODE | 30003 |
| DESIGN CONTROL REFERENCE | 2580137 |
Restrictions/Controls & Freight Information | NSN 8140-00-833-8387
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 146010 | CRATES BOMB/BOMB VANE STL SU |
| Less than car load rating | G | 125 |
| Less than truck load rating | G | 125.0 |
| Water commodity Code | 691 | unknown |
| Originating Activity Code | JG | Naval Ordnance Center Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | 3 | Ammunition (all types). including inert component parts. When a 3 is in the first position, then the special handling code must be determined from table 85 , part 1. If the primary hazard of the Ammunition item is Chemical (irritant, corrosive, oxidizer) in nature, as indicated by the DOT Proper Shipping Name, use first position Code ?C. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 8140-00-833-8387
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | D | Single Manager Ammunition |
| Appropriation and Budget Activity | K | Ammunition |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | Y | Conventional Ammunition |
| Weapons Systems/End Item or Homogeneous Group | Y7 | Packaging Material for Conven tional Ammunition Maintenance and Renovation Project |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | B14 | US Army Armament and Chemical Acquisition and Logistics Activity ATTN: AMSTA-AC Rock Island, IL 61299-6000 |
| Agency | DA | Department of the Army |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 2E | Conventional air ammunition Naval Ordnance Center, IMSD Mechanicsburg, PA |
| Issue Repair, or Requisition | BV | Controlled ammunition item. Submit/refer requisitions to NOC IMSD. Centralized control for issue of controlled ammunition items. |
| Source of Supply | NCB | Naval Ordnance Center P.O. Box 2011 Mechanicsburg, PA 17055-0788 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
