NSN 8120-01-452-6937 MILF22606, MIL-F-22606, MILF22606TYGFCL3000SERVICEA
Product Details | AIR TECHNICAL COMPRESSED GAS CYLINDER
8120-01-452-6937 Empty cylinder only.
Part Alternates: MILF22606, MIL-F-22606, MILF22606TYGFCL3000SERVICEA, MIL-F-22606TYGFCL3000SERVICEA, 4X13155W, 8120-01-452-6937, 01-452-6937, 8120014526937, 014526937
Containers, Packaging, and Packing Supplies | Commercial and Industrial Gas Cylinders
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 81 | 04 FEB 1998 | 01-452-6937 | 49517 ( CYLINDER, COMPRESSED GAS, AIR TECHNICAL ) |
Drawings & Photos | NSN 8120-01-452-6937
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 8120-01-452-6937
Related Products | NSN 8120-01-452-6937
Technical Data | NSN 8120-01-452-6937
| Characteristic | Specifications |
|---|---|
| SHATTERPROOF FEATURE | INCLUDED |

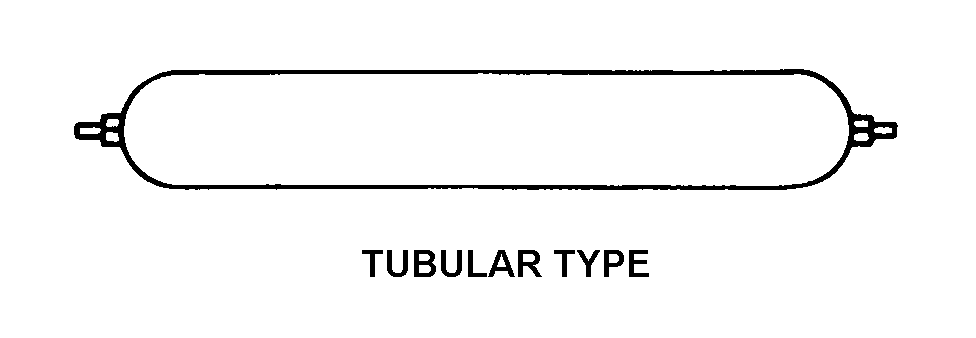

| CYLINDER STYLE DESIGNATOR | 4 TUBULAR TYPE |
| MAXIMUM OPERATING PRESSURE | 3000.0 POUNDS PER SQUARE INCH |
| CAPACITY RATING | 6.000 CUBIC FEET MINIMUM |
| NECK THREAD LOCATION | INTERNAL |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR | 2-3/4-8 UN |
| THREAD CLASS | 3B |
| NECK CLOSURE | PROVIDED |
| FURNISHED ITEMS | PLUG |
| CROSS SECTION OUTSIDE DIAMETER | 18.000 INCHES NOMINAL |
| OVERALL HEIGHT | 64.500 INCHES NOMINAL |
| NONDEFINITIVE SPEC/STD DATA | GF TYPE AND 3000 CLASS AND A SERVICE |
| III FSC APPLICATION DATA | FOR SHIPBOARD USE |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-F-22606 |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-F-22606TYGFCL3000SERVICEA |
Restrictions/Controls & Freight Information | NSN 8120-01-452-6937
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 041160 | CYLINDERS(AIR/GAS/LIQUID) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 634 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | S | Office, School, and Household Supplies/Equipment including Office Machines, Furniture/Stationary, Films, Synthetic/Special Training Films, Non-Hazardous Household Cleaning Products, Non-Hazardous Personal Hygiene Products, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 8120-01-452-6937
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
