Product Details | NITROGEN-CARBON DIOXIDE COMPRESSED GAS CYLINDER

8120-01-145-9354 Empty cylinder only.

Part Alternates: 2034682651ITEMF2, 203-4682651ITEMF2, 2034682651ITEMF2L1, 203-4682651ITEMF2L1, 4X14747, 4X14747L1, 8120-01-145-9354, 01-145-9354, 8120011459354, 011459354

Containers, Packaging, and Packing Supplies | Commercial and Industrial Gas Cylinders

Supply Group (FSG) NSN Assign. NIIN
81 21 JAN 1983 01-145-9354

Drawings & Photos | NSN 8120-01-145-9354


Cross Reference | NSN 8120-01-145-9354

Part Number Cage Code Manufacturer
203-4682651ITEMF2 80064 NAVAL SHIP SYSTEMS COMMAND
203-4682651ITEMF2L1 03950 NAVAL INVENTORY CONTROL POINT MECHANICSBURG
4X14747 48899 CP INDUSTRIES HOLDINGS, INC.
4X14747L1 03950 NAVAL INVENTORY CONTROL POINT MECHANICSBURG

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 8120-01-145-9354

Technical Data | NSN 8120-01-145-9354

Characteristic Specifications
SHATTERPROOF FEATURE NOT INCLUDED

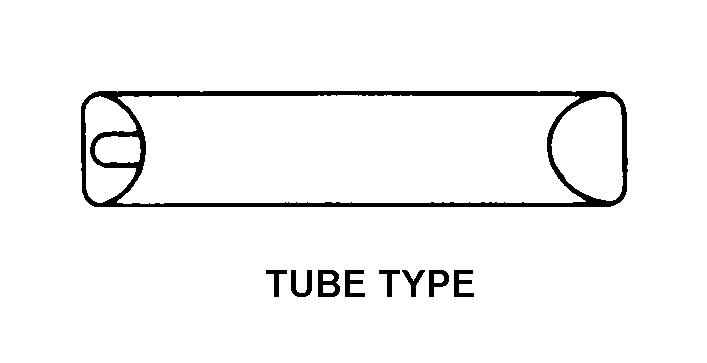

CYLINDER STYLE DESIGNATOR 2 TUBE TYPE
MAXIMUM OPERATING PRESSURE 3000.0 POUNDS PER SQUARE INCH
CAPACITY RATING 4.000 CUBIC FEET NOMINAL
NECK CLOSURE NOT PROVIDED
MANUFACTURER NAME UNITED STATES STEEL
CROSS SECTION OUTSIDE DIAMETER 18.000 INCHES NOMINAL
OVERALL HEIGHT 48.000 INCHES NOMINAL
REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS QUALITY CONTROL IAW NAVSHIPS 0948-045-7010 MATERIAL IDENTIFICATION AND CONTROL INSTRUCTION FOR LEVEL 1 TIEMS
CRITICALITY CODE JUSTIFICATION ZZZY
MANUFACTURERS CODE 48899
DESIGN CONTROL REFERENCE 4X14747

Restrictions/Controls & Freight Information | NSN 8120-01-145-9354

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:BMunitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.)
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:SThe item is a non-aviation Critical Safety Item (CSI) whose failure will result in serious damage to equipment or serious injury or death to personnel.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 041160 CYLINDERS(AIR/GAS/LIQUID)
Less than car load rating W Rating Variable
Less than truck load rating W Rating Variable
Water commodity Code 634 unknown
Originating Activity Code HD Naval Inventory Control Point
Mechanicsburg, PA 17055-0788
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity C Chemical corps items and all other chemicals not covered in other classifications. When chemical item (as indicated by the DOT Proper Shipping Name) is sensitive as defined in Appendix A Section I of DoD 4500.32-R, Volume I, second position must be from table 85 , part 1.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo E Empty hazardous material containers or packages (empty label)

Management | NSN 8120-01-145-9354

Category Code Description
Cognizance Codes1HConsumable material assigned to NAVICP MECH for inventory management
Naval Inventory Control Point, Mechanicsburg
Special Material IDL1An items that supports either a SUBSAFE or Level 1 system that has undergone the extreme material control and quality assurance techniques that provide objective exidence of its acceptance for its appropriate application. Each item has certification papers (or special markings that provide traceability to the certification) that pedigree its material and physical properties, provide traceability, to manufacturer, contract list and lot, and document the quality assurance system and test requirements applied to the item.
Special Material Content9 Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of SupplyNRPNAVICP-ERP
700 Robbins Avenue
Philadelphia, PA 19111-5098
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
ReparabilitySSlow Demand Velocity Items (consumables)
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
